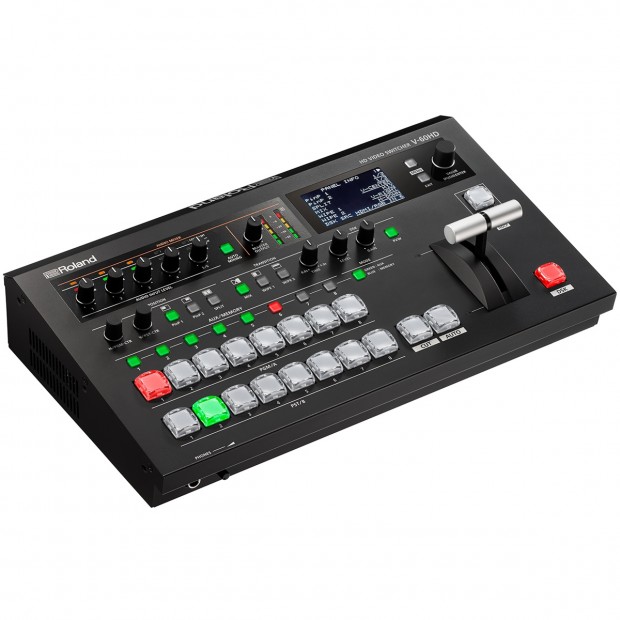

Roland V-60HD Plug-N-Play Production Switcher with Audio for Live Event and Production Applications
Live event production and streaming continues to grow and the demand for more features requires a sophisticated feature set. The V-60HD simplifies your set-ups and combines the best of both worlds that includes SDI inputs for camera sources and scaled HDMI inputs for data, computer, tablet and other video sources. The combination of powerful audio features that include multi-channel embedded audio, XLR and RCA analog inputs, de-embedded audio from digital SDI or HDMI sources plus a variety of video connections with a Program and Aux Bus makes the V-60HD ideal for a variety of live event production and streaming applications.
- Features
Features
- Great for live production, education, and church/theater applications
- Professional user interface
- Video composition
- AUX bus
- Multi-view output
- Audio mixer with preamp and dynamics (compressor)
- Auto mixing
- Discreet multi-channel audio embedding
- Smart Tally
- Remote control
- PTZ camera control
- Specification
Video Video Processing 4:2:2 (Y/Pb/Pr), 8-bit Input Connectors SDI IN 1--4: BNC type x 4
Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
HDMI IN 5--6: HDMI type A x 2
HDCP Supported
Multi-format Supported
RGB/COMPONENT IN 6: HD DB-15 type x 1
INPUT 6: HDMI or RGB/COMPONENT selected
Multi-format SupportedOutput Connectors SDI OUT 1--2: BNC type x 2
Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
HDMI OUT 1--2: HDMI type A x 2
HDMI MULTI-VIEW: HDMI type A x 1
HDCP SupportedInput Formats SDI IN 1--4: Conforms to SMPTE 296M, SMPTE 274M
720/59.94p, 720/50p SMPTE 296M(FORMAT switch = 720p)
1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p SMPTE 274M(FORMAT switch = 1080i or 1080p)
The input interlaced video signal is converted to progressive video signal by internal processing
The video signal frame rate can be selected at the SYSTEM menu (59.94 or 50)
HDMI IN 5:
HDMI/RGB/COMPONENT IN 6:
480/59.94i, 576/50i, 480/59.94p, 576/50p
720/59.94p, 720/50p, 1Still Image Windows(R) Bitmap File (.bmp)
Maximum 1920 x 1080 pixels, 24-bit color, uncompressed
It can be stored up to 2 files in the internal memoryOutput Formats SDI OUT 1--2: Conforms to SMPTE 296M, 274M
HDMI OUT 1--2:
720/59.94p, 720/50p (SYSTEM FORMAT = 720p)
1080/59.94i, 1080/50i (SYSTEM FORMAT = 1080i)
1080/59.94p, 1080/50p (SYSTEM FORMAT = 1080p)
The video signal frame rate can be selected at the SYSYTEM menu (59.94 or 50)HDMI Multi-View 1080/59.94p, 1080/50p Video Effects Transition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (30 types)Composition: PinP (SQUARE, CIRCLE, HEART, DIAMOND), SPLIT (4 types), DSK (Luminance Key, Chroma Key)
Others: Flip horizontal, Output fade, Still Image Capture, Still Image Playback, Test pattern outputAudio Audio Processing Sampling rate: 24 bits/48 kHz Audio Formats SDI IN: Linear PCM, 24 bits/48 kHz, 2ch (Conforms to SMPTE 299M)
SDI OUT: Linear PCM, 24 bits/48 kHz, 8ch (Conforms to SMPTE 299M)
HDMI IN/OUT: Linear PCM, 24 bits/48 kHz, 2chInput Connectors Digital: SDI IN 1--4: BNC tyep x 4
HDMI IN 5--6 (HDMI Type A 19 pins) x 2
Analog: AUDIO IN 1--4: Combo type (XLR, 1/4-inch TRS phone), phantom power
AUDIO IN 5--6: RCA phono typePhantom Power DC 48 V (unloaded maximum), 10 mA (maximum load)
Current value per channelOutput Connectors Digital: SDI OUT 1--2: BNC type x 2
HDMI OUT 1--2: HDMI type A x 2
HDMI MULTI-VIEW: HDMI type A x 1
Analog: AUDIO OUT: XLR type
AUDIO OUT: RCA phono type
PHONES: Stereo 1/4-inch phone typeInput Level AUDIO IN 1--4: -60--+4 dBu (Maximum: +22 dBu)
AUDIO IN 5--6: -10 dBu (Maximum: +8 dBu)Input Impedance AUDIO IN 1--4: 10 k ohms (HEAD AMP GAIN 0--23 dB), 5 k ohms (HEAD AMP GAIN 24--+64 dBu)
AUDIO IN 5--6: 15 k ohmsOutput Level AUDIO OUT (XLR): +4 dBu (Maximum: +22 dBu)
AUDIO OUT (RCA): -10 dBu (Maximum: +8 dBu)
PHONES: 92 mW + 92 mW (32 ohms)Output Impedance AUDIO OUT (XLR): 600 ohms
AUDIO OUT (RCA): 1 k ohm
PHONES: 10 ohmsAudio Effects Auto Mixing, EQ, Delay, Compressor, HPF, Gate, Multi-Band Compressor, Limiter Others Other Connectors USB: USB A type (for USB memory)
TALLY/GPI: DB-25 type (Female)(Tally: 12, GPI: 8)
RS-232: DB-9 type (Male) *for Remote Control
LAN: RJ45 100BASE-TX *for Remote ControlOther Functions MEMORY (8 types)
Panel lock function
EDID Emulator
Smart TallyDisplay Graphic LCD: 128 x 64 dots Power Supply AC Adaptor Current Draw 3.1 A Power Consumption 37.0 W Operation Temperature +0 to +40 degrees Celsius
+32 to +104 degrees FahrenheitAccessories Owner's Manual
AC adaptor
Power cordDimensions (H x W x D) 3.78" (96 mm) x 14.02" (356 mm) x 8.7" (221 mm) Weight (excluding AC adaptor) 6.6 lbs (3 kg) - Documents
