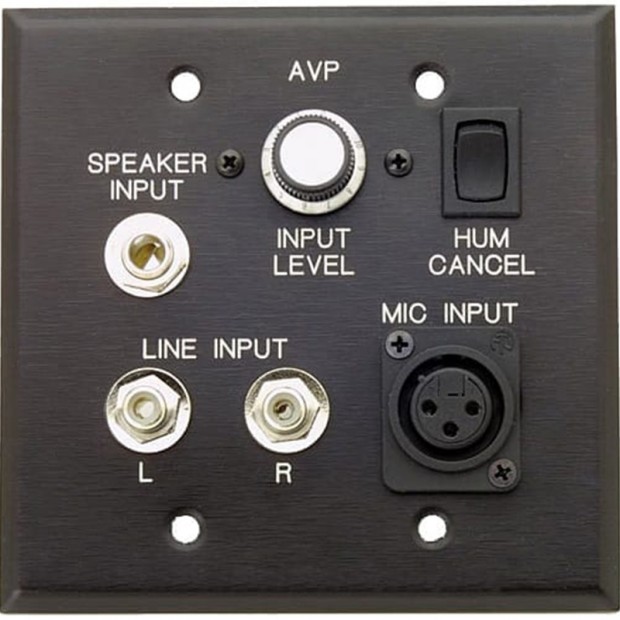

ProCo AVP1VBLK Audio Visual Passive Interface Wall Plate with Volume Control

By ProCo Sound

ProCo AVP1VBLK Audio Visual Passive Interface Wall Plate with Volume Control

Name: ProCo AVP1VBLK Audio Visual Passive Interface Wall Plate with Volume Control
Brand: ProCo Sound
SKU: PROCO-AVP1VBLK
Price: 438.99 USD
Availability: InStock

Write a Review

Part #:

AVP1VBLK

Model #:

AVP1VBLK

Current Stock:

Availability: Usually arrives in 5-9 business days.

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The ProCo AVP1VBLK is a dual-gang wall plate mounted interface device that allows the line-level outputs of audio and videotape/cassette recorders, phonographs, etc. to be connected to microphone inputs of house P.A. systems.

Description

The AVP1V is a dual-gang wall plate mounted interface device that allows the line-level outputs of audio and videotape/cassette recorders, phonographs, etc. to be connected to microphone inputs of house P.A. systems. It has the added feature of a 10kW linear input level control and is available on a brushed stainless steel or black anodized aluminum wall plate.

Features

Speaker Input - 1/4" 3-conductor phone jack, wired for use with standard 2-conductor plug, accepts signals from unbalanced line level or speaker-level sources such as phonographs, audio and video tape recorders and movie projectors. Has 16-ohm, 5-watt dummy load, 20 dB attenuator network, and low-pass filter (-3 dB @ 8 kHz, 6 dB/octave). Input impedance: approx. 16 ohm.
LINE INPUT L/R - RCA phono jacks, resistively mixed to monaural, for signals from nominal -10 dBV sources such as radio, cassette or VCR outputs. Input impedance: approx. 4 kohm.
MIC INPUT - Female 3-pin XLR-type connector provides independent microphone input (brought out to output barrier strip) for announcer, lecturer, etc.
HUM CANCEL - Ground-lift switch, used to reduce hum and buzz by eliminating ground loops and providing proper grounding for various conditions. Breaks connection between input and output shields.

Specifications

Input Impedance	>130 kOhm @1kHz (line in L/R jacks, mono source) 4.0 kOhm (line in L/R jacks, stereo source, resistively mixed) 16 Ohms (PROJ IN jack)
Output Impedance
Frequency Response	20 Hz - 20 kHz, +/-.5dB @-15dBv output -3dB @85 kHz 6dB/octave attenuation above 8 kHz (PROJ IN jack)
Input Connectors	2 x RCA Phono Line In 1 x 3-pin XLR Female Mic In 1 x 1/4" TS Phone PROJ IN(SPKR)
Output Connector	Barrier Strip
Dimensions (H x W x D)	4.6" (115.8 mm) x 4.6" (115.8 mm) x 1.25" (31.75 mm)
Weight	0.41 lbs (0.184 kg)
