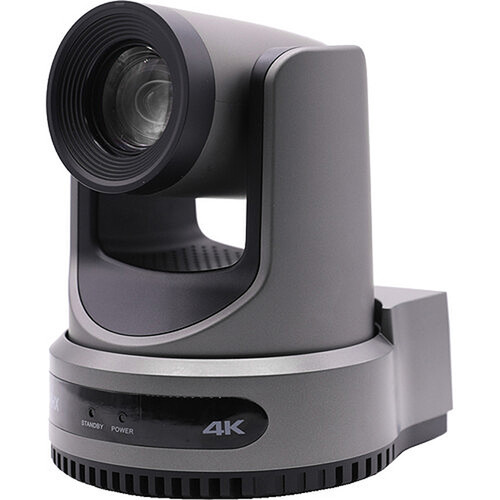

PTZOptics PT20X-4K-GY-G3 Move 4K PTZ Camera with 20X Optical Zoom - Gray

Part #:
PT20X4KGYG3
Model #:
PT20X-4K-GY-G3
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL
The PTZOptics PT20X-4K-GY-G3 Move 4K PTZ camera delivers 4K at 60fps, 20x optical zoom, built-in auto-tracking, PoE+, and versatile HDMI, SDI, USB, and IP outputs. Ideal for streaming, lecture capture, and professional video production.

Description

PTZOptics PT20X-4K-GY-G3 Move 4K PTZ Camera with 20x Optical Zoom

The PT20X-4K-GY-G3 Move 4K PTZ camera in gray is a versatile, high-performance camera designed for professional video production, live streaming, and lecture capture. Equipped with 20x optical zoom and capable of 4K resolution at 60fps, this camera delivers crystal-clear imagery with full frame rates for both broadcast and online streaming. Built-in auto-tracking and Presenter Lock™ allow you to follow a subject automatically, eliminating the need for a dedicated camera operator.

With SDI, HDMI, USB, and IP outputs, plus native NDI HX3 support, the Move 4K integrates seamlessly into modern workflows. Advanced features such as wide dynamic range, 3D noise reduction, and multiple white balance modes ensure high-quality video even in challenging lighting conditions. Its PoE+ capability allows for a single-cable solution, simplifying installation while maintaining professional performance.

The PT20X-4K-GY-G3 offers discreet mounting options above, below, or beside the action, and an automatic video inversion feature adjusts the image based on the camera's orientation. Control the camera using production software like OBS, vMix, Wirecast, or Tricaster, or use PTZOptics hardware joysticks for intuitive operation. Stream directly to platforms such as Zoom, YouTube, or Facebook, making this camera a reliable choice for any live production or streaming environment.

Features

  • 4K resolution @60fps, 1080p up to 60fps over SDI
  • 20x optical zoom with pan/tilt/zoom capabilities
  • Built-in auto-tracking with Presenter Lock technology
  • Multiple outputs: SDI, HDMI 2.0, USB 2.0, RJ45 Ethernet
  • PoE+ support for simplified single-cable installation
  • Advanced video features: Wide dynamic range, 3D noise reduction, advanced white balance modes
  • Full broadcast frame rates: 2160p, 1080p/i, 720p
  • Audio input: 3.5mm line level
  • Discreet mounting: Above, below, or beside subjects; automatic video inversion
  • Integration: Works with OBS, vMix, Wirecast, Tricaster, Blackmagic switchers, NDI HX3, and cloud streaming platforms

Specifications

Optical Zoom 20x
Pan/Tilt Range 340° pan, 120° tilt
Video Output 1 × SDI, 1 × HDMI 2.0, 1 × USB 2.0, 1 × RJ45
Audio Interface 1 × 3.5 mm line-level input
Resolution 4K 60/50/30/25, 1080p 60/50/30/25, 1080i, 720p
Advanced Features Auto-tracking, Presenter Lock, 3D Noise Reduction, Wide Dynamic Range, White Balance Modes
Mount Type Ceiling, Wall, Tabletop, or Tripod
Color Gray
Dimensions (H x W x D) 7.91" (164.5 mm) x 5.57" (168.4 mm) x 5.94" (141.5 mm)
Weight 3.25 lbs (1.47 kg)
