Inside the Design
This Energy Star certified public address sound system is engineered for clear, intelligible paging in both indoor and outdoor environments. Ideal for facilities that require high output and long throw performance, this system includes a bi-axial wide angle horn with compression driver, two weather-resistant long throw paging horns, and an energy-efficient 80W commercial mixer amplifier that delivers reliable operation while conserving power. Complete with a Pure Resonance Audio UC1S dynamic vocal microphone, desktop mic stand, and all necessary cabling, this paging system provides exceptional clarity, durability, and ease of use for commercial paging applications.
Sound System Features:
- Complete Energy Star certified paging system for indoor and outdoor environments
- Wide angle bi-axial horn with 180 degree directional positioning using a gimbal mount
- Weather-resistant long throw paging horns with focused coverage for extended projection
- High efficiency 80W commercial mixer amplifier designed for long run times and reduced heat
- Includes Pure Resonance Audio UC1S dynamic vocal microphone with On Off switch for clear speech reproduction
- Durable adjustable height desktop mic stand for stable microphone placement
- All required audio and speaker cabling included for quick installation
About the System Components
AtlasIED BIA-100 Bi-Axial Horn
The BIA-100 is a classic bi-axial reflex horn featuring twin air columns and an exponential bell for wide angle coverage and smooth frequency response. Designed for optimal acoustic loading down to 350 Hz, the horn ensures strong mid and high frequency projection. The included patented gimbal-mount bracket allows precise directional aiming up to 180 degrees both vertically and horizontally. Its weather-resistant matte black finish and rugged mount assembly make it suitable for demanding environments.
AtlasIED PD60AT Compression Driver
The PD60AT is a fully environment-resistant 60 watt compression driver built for high output indoor or outdoor paging. It features precision machined components, a durable sound chamber, and optimized magnetic structure. The driver delivers a plane wave frequency response from 100 Hz to 3.7 kHz, making it ideal for large or noisy spaces requiring clear, high intelligibility announcements.

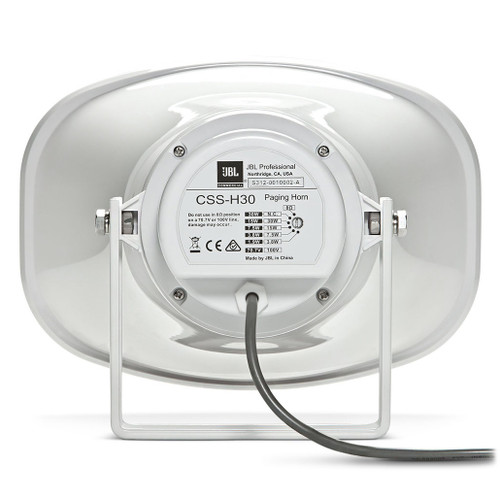

JBL CSS-H30 30 Watt Paging Horns
The JBL CSS-H30 long throw paging horns provide focused acoustic coverage for superior distance projection. Designed for harsh environments, these horns are IP65 rated and constructed from durable ABS with stainless steel hardware. Each horn includes a built-in multi-tap 70V 100V transformer with adjustable taps and an 8 ohm bypass option. Typical applications include warehouses, schools, factories, civic centers, commercial buildings, and outdoor public areas.

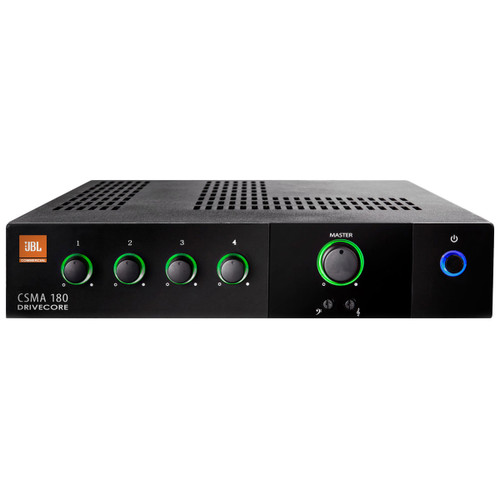

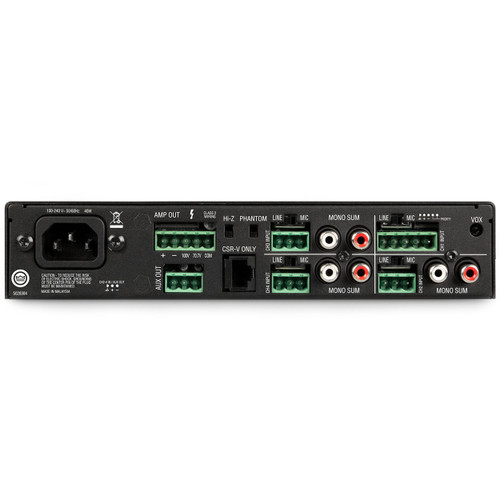

JBL CSMA 180 Commercial Mixer Amplifier
The CSMA 180 mixer amplifier combines ease of use with high efficiency DriveCore technology for reduced power consumption and heat output. Ideal for long duty cycles, it supports 8 ohm, 4 ohm, 70V, and 100V operation without the need for external transformers. The intuitive front panel features illuminated volume controls for visibility in low light. Balanced and unbalanced inputs, RJ45 connectors for remote volume control, and a universal power supply provide flexible integration in commercial paging systems.

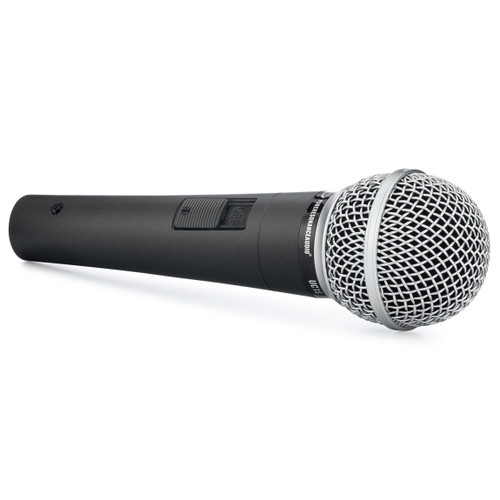

Pure Resonance Audio UC1S Ultra Clear Dynamic Vocal Microphone
The Pure Resonance Audio UC1S is a high quality dynamic vocal microphone designed for clear, intelligible speech and vocal performance. Its cardioid pickup pattern reduces feedback and background noise while enhancing voice clarity. The tailored frequency response provides crisp articulation, and the integrated On Off switch allows convenient control during paging or announcements. Built with a robust metal body and internal pop filter, the UC1S offers dependable performance in commercial environments.

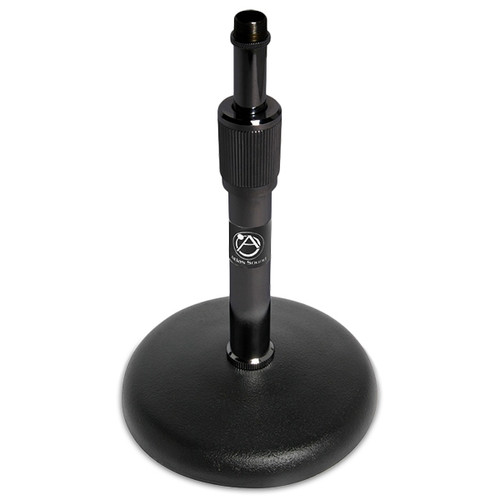

AtlasIED DS7E Adjustable Height Desktop Mic Stand
The DS7E desktop microphone stand features an adjustable height range of 8 to 13 inches, a grip-action clutch, and a stable ebony-finished cast iron base. Its compact and durable design makes it well suited for podiums, desks, counters, and paging stations.
