Pure Resonance Audio C3 3" Micro Ceiling Speakers
Featuring a stylish, intelligent design, the Pure Resonance Audio C3 3" micro ceiling speaker is compact and lightweight. This ceiling speaker seamlessly attaches and blends into the ceiling creating a beautiful architectural look. With 8 Ohm and 70 Volt taps, the C3 ceiling speaker is designed to provide excellent sound quality for a wide variety of low to medium volume applications such as, background music, paging and ambient sound masking in commercial environments such as offices, retail stores, coffee shops, restaurants, hospitality venues, reception/waiting rooms, lounges, foyers, hallways, and auxiliary spaces.
Compact and lightweight, the Pure Resonance Audio C3 3" micro ceiling speaker system is an intelligent, stylish design that seamlessly blends into ceilings while producing quality sound and excellent dispersion of both music and vocals. Because of its small size, the C3 ceiling speaker is great for installations where architectural or aesthetic considerations require a small format ceiling speaker. It features an 8 Ohm and 70 Volt tap, as well as a power tap transformer switch which allows for selectable inputs of 8 Ohm or 70V/100V applications. The C3 ceiling speaker is perfect for providing background music, paging and ambient sound masking for offices, retail stores, coffee shops, restaurants, hospitality venues, reception/waiting rooms, lounges, foyers, hallways, and auxiliary spaces.

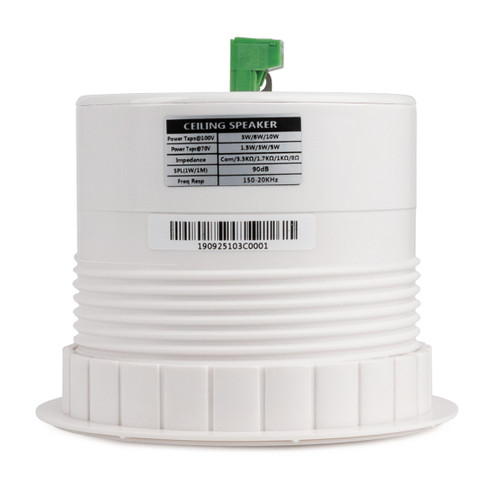

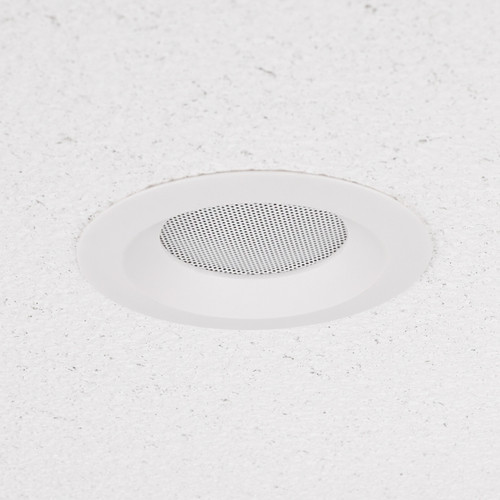

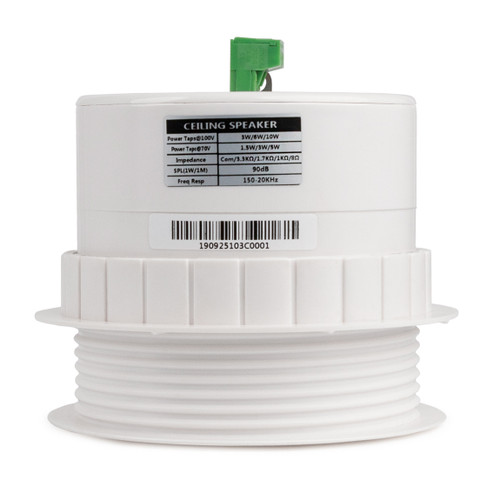

An ultra-thin flat bezel allows the C3 to blend into ceiling planes. The quick and Easy-Mounting threaded mounting ring provides secure, clean installation onto ceiling tiles and many other ceiling types.- Features
Features
- Compact and lightweight
- Smallest possible footprint while maintaining powerful quality sound
- Intelligent, stylish design that seamlessly blends into the ceiling

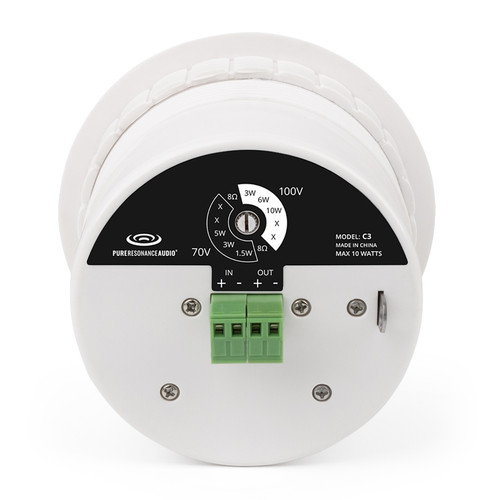

- Power tap transformer switch for selectable 8 ohm or 70V/100V operation for commercial applications
- Tap settings:
- 70V: 8 ohm, 1.5W, 3W, 5W
- 100V: 8 ohm, 3W, 6W, 10W

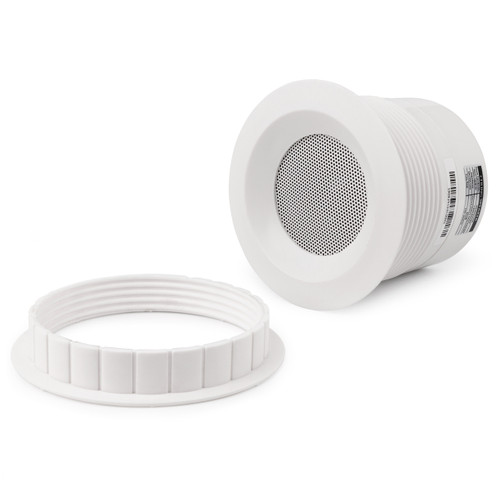

- Quick & easy installation with threaded mounting ring
- Perfect for background music in offices, retail stores, restaurants, hotels, foyers, and auxiliary spaces
- Specification
Frequency Response 120Hz - 20kHz Low Frequency (-10 dB) 180 Hz - 20 kHz Impedance 8 Ohms with 70V transformer (Built-in) Maximum Input Voltage 17 dBV (7.1V, 6W into 8Ω) Power Taps 70V: 1.5W / 3W / 5W
100V: 3W / 6W / 10WTransducer Full-range 3" driver Speaker Cone Material Paper driver with butyl rubber surround Nominal Coverage Angle 130° Conical Coverage 180° Coverage Angle -1 dB @ 1.25 kHz
-5 dB @ 2.5 kHz140° Coverage Angle -10 dB @ 10 kHz Sensitivity SPL 85 dB @ 1W/1 m Maximum SPL 89.6 dB referenced @ 1m Cutout Size 4.25" (107.95 mm) EZ-Mount Ring (Dia) 5.125" (130.18 mm) Bezel (Dia) 4.88" (123.83 mm) Mounting Depth (Dia x D) 4.125" (104.78 mm) x 3.16" (80.16 mm) without connector
4.125" (104.78 mm) x 3.88" (98.43 mm) with connectorOverall Dimensions (Dia x D) 4.125" (104.78 mm) x 4" (101.6 mm) without connector
4.125" (104.78 mm) x 4.69" (119.08 mm) with connectorNet Weight (ea) 1.6 lbs (0.73 kg) Shipping Weight 12 lbs (5.44 kg) - Documents
- In The Box
In The Box
- (4) C3 3" Micro In-Ceiling Speakers
- (4) Easy-Mounting Threaded Mounting Rings
