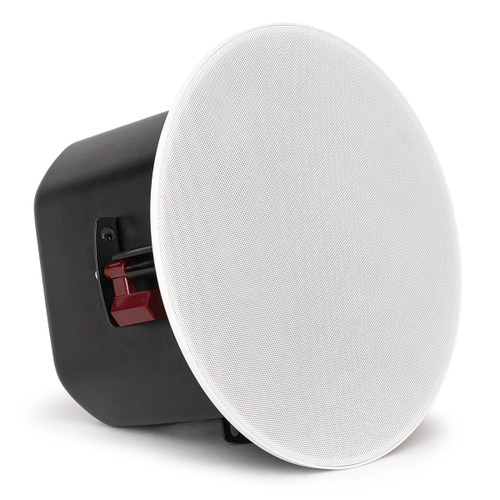

Pure Resonance Audio C6 6.5" 2-Way In-Ceiling Loudspeaker
The Pure Resonance Audio C6 6.5" 2-way high-performance commercial ceiling speaker features an innovative compact flush-mount design that blends naturally into any space. This 70-volt ceiling speaker provides full-range high-quality sound for superior background music, sound masking, paging, or announcements. With a front-accessible built-in 70V transformer and an 8-ohm bypass, the C6 is perfect for offices, retail stores, restaurants, classrooms, conference rooms, and most commercial environments.
Full-Range Directional Sound

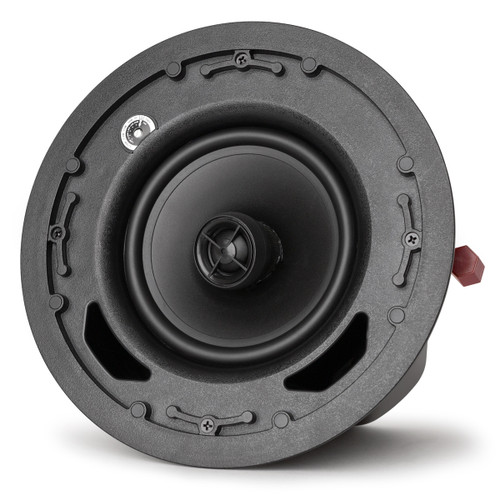

The C6 contains a 6.5" polypropylene (PP) cone woofer and an adjustable 1" silk tweeter that can be positioned where you need it for the best sound coverage possible. An 88 dB sensitivity and 30-watt power handling capability maintain superb performance in commercial audio applications. With a wide 130Hz - 17kHz frequency range, this two-way 70V ceiling speaker delivers impressive lows and clear highs for superior vocal intelligibility and full-range uncolored music reproduction. The C6 employs high-quality materials featuring an ABS enclosure with an iron back barrel and a power-coated iron mesh grill.
Easy Installation and Adjustments

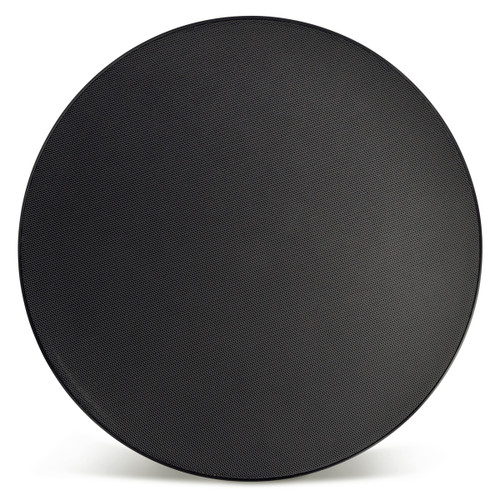

The bezel-less magnetic iron grill is conveniently removable to access the front-mounted tap selector switch for easy adjustment of the speaker's output level, even after installation. The C6 features 4 doglegs to offer quick and secure installation. The available tile bridge should be used for additional support when mounting in drop tile ceilings (sold separately).
- Features
Features
- Flush-Mount Design - Intelligent and compact flush-mounted design with a bezel-less grill that seamlessly blends into the ceiling

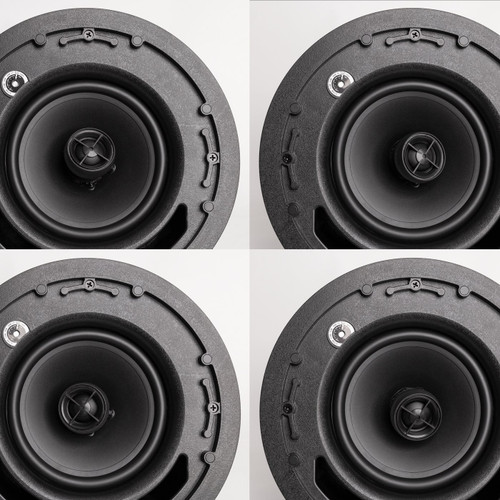

- Adjustable Tweeter - The ABS enclosure with an iron back barrel contains a 6.5" polypropylene (PP) cone woofer and an adjustable positioning 1" silk tweeter for the best sound coverage in your space
- Multi-Functional - Perfect for providing high-quality background music, sound masking, paging, and announcements for business offices, retail stores, restaurants, classrooms, conference rooms, and more
- Quality Performance - Full-range sound with a wide 130Hz - 17kHz frequency range, 30-watt power handling capability, and 88dB sensitivity provide quality audio output

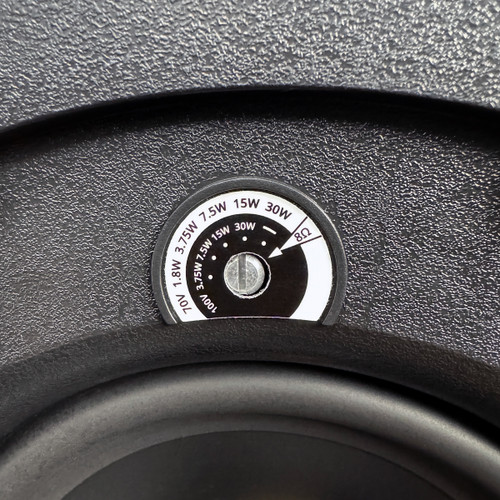

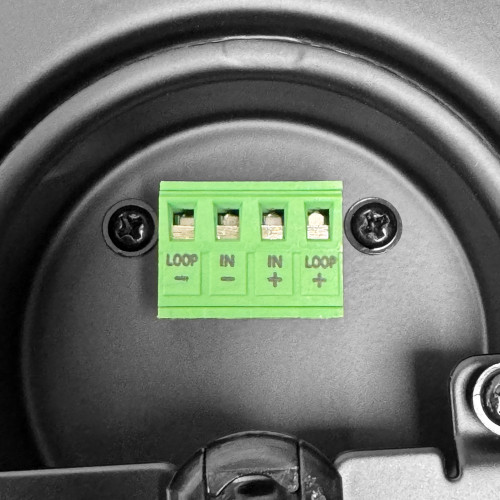

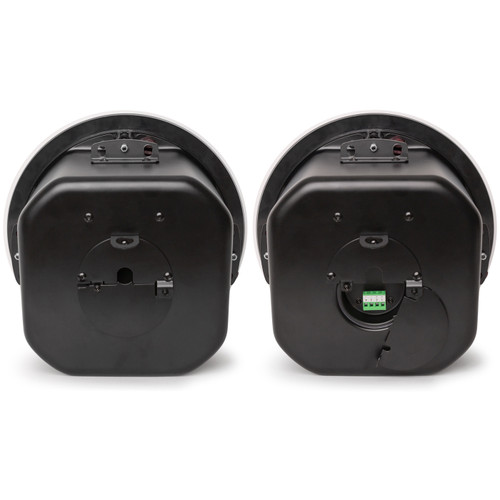

- Front Access Tap - Designed with the installer in mind, the C6 features a 70-volt / 100-volt multi-tap transformer with an 8-ohm bypass on the front of the speaker and a recessed 4-pin Euroblock screw terminal connector on the back
- Quick & Easy Install - The removable magnetic grill and mounting doglegs ensure effortless installation and tap setting adjustments. A tile bridge is also available (sold separately) for secure mounting in drop tile ceilings
- Specification
Impedance 8 Ohms Frequency Response 90Hz - 17kHz RMS Power Rating 30 Watt Transformer Taps 1.8W, 3.75W, 7.5W, 15W, 30W @ 70V
3.75W, 7.5W, 15W, 30W @ 100V
8 Ohm BypassLow-Frequency Driver 6.5" Woofer High-Frequency Driver 1" Adjustable silk driver Speaker Cone Material Polypropylene (PP) Sensitivity SPL 88±3dB @ 1W/1 m Material ABS enclosure with iron back barrel and power-coated iron mesh magnetic grill Cutout Size 9.45" (240 mm) Dimensions (Dia x D) 10.51" (267 mm) x 6.38" (162 mm) Shipping Dimensions 12.4" (315 mm) x 12.2" (310 mm) x 9.65" (245 mm) Weight 7.28 lbs (3.3 kg) Shipping Weight 9.48 lbs (4.3 kg) - Documents
