Pure Resonance Audio H6 6.5" 2-Way Full-Range All-Weather Horn-Loaded Loudspeaker with 6.5" LF 110 dB 60W 4 Ohm 70V/100V
Usually arrives in 5-9 business days.
B-Stock. Authorized Pure Resonance Audio Dealer. Factory-renewed performance and value. Returns are thoroughly inspected and tested to meet strict factory standards. Documentation and Packaging as new product.

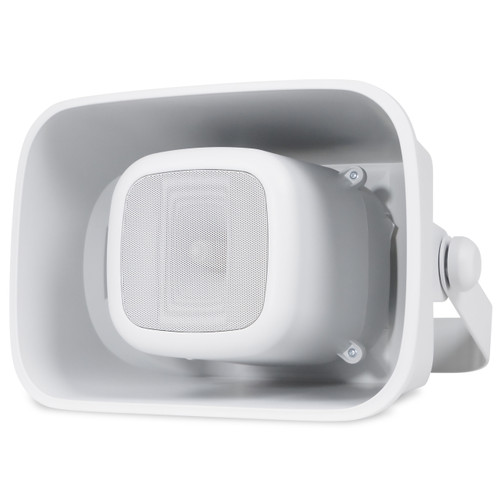

Constructed from durable polypropylene and calcium carbonate, the Pure Resonance Audio H6 horn-loaded loudspeaker is engineered for long-lasting performance in challenging environments. Designed to deliver high-quality paging and announcements over long distances, the H6 excels even in extreme conditions. With an IP66 protection rating and impact-resistant housing, this outdoor loudspeaker horn is fully shielded against dust, dirt, high-pressure water, and environmental impacts. Built to provide consistent performance while enduring the elements, the H6 reliably handles paging, announcements, and public address in small stadiums, gymnasiums, schools, arenas, racetracks, fairgrounds, rodeos, outdoor parks, playgrounds, warehouses, distribution centers, factories, manufacturing plants, and other indoor and outdoor commercial applications.
The Pure Resonance Audio H6 PA horn speaker delivers clear speech and broad coverage with power taps up to 60 watts and a wide 90° x 90° coverage angle. This horn-loaded speaker is designed to reach long distances, featuring a 6.5" woofer and a 1" tweeter for high-output sound and a full-range frequency response of 120Hz - 18kHz. With an average sensitivity of 93 dB SPL, it ensures your message is clearly heard across wide areas. The low-frequency paper driver provides an organic sound with quicker response times and better transient performance, resulting in precise sound reproduction and cleaner, more controlled audio output. The glass-fiber-reinforced ABS tweeter offers durability, enhanced high-frequency response, improved heat resistance, and consistent performance. Engineered for outstanding voice reproduction, the H6 is an excellent choice for environments requiring clear communication over long distances.

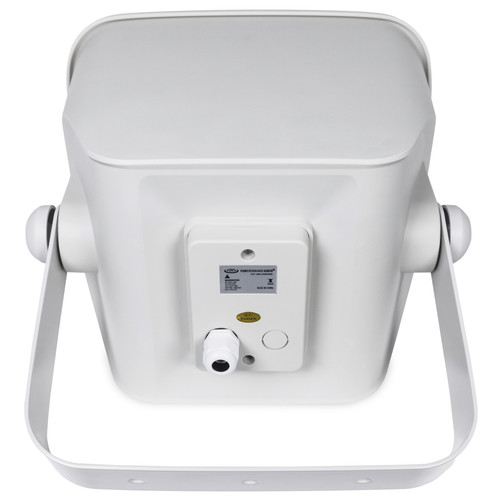

The H6 features a built-in 60W 70V/100V multi-tap transformer with a 4-ohm bypass, offering flexible installation options. The included heavy-duty mounting bracket ensures secure and stable installation, while the transformer and bare wire connector are recessed under the rear waterproof cover for a secure and weather-safe connection. With easy power selection and straightforward installation, the H6 is a practical solution for various paging and public address applications. Installation is quick and secure: remove the rear cover, connect the speaker wire based on the desired tap setting, replace the cover, mount the bracket, and attach the speaker. To connect an additional speaker, remove the knockout from the back cover and add the provided collet nut for water resistance. A 15/16" wrench is required for the external nut.
| Power Rating | 60 Watts RMS; 120 Watts Peak |
|---|---|
| Frequency Response (±10 dB) | 120 Hz - 18 kHz |
| Sensitivity (@ 1w/1m) | 93 dB |
| Max SPL | 110 dB |
| Coverage Pattern | 90° x 90° |
| Impedance | 4 Ohm |
| Transformer Taps | 70V: 7.5W, 15W, 30W, 60W 100V: 15W, 30W, 60W 4 Ohm Bypass |
| Woofer | 6.5" Paper |
| Tweeter | 1" ABS/Glass Fiber |
| Material | Polypropylene + calcium carbonate enclosure |
| Protection | Weatherproof IP66 |
| Connection | Bare wire |
| Mount | Aluminum mounting bracket |
| Mounting Holes | 3 x 10 mm (Distance between each hole is 80 mm) |
| Dimensions (H x W x D) | 10.71" (272 mm) x 14.37" (365 mm) x 12.91" (328 mm) |
| Net Weight | 13.78 lbs (6.25 kg) |
| Shipping Weight | 17.64 lbs (8 kg) |
