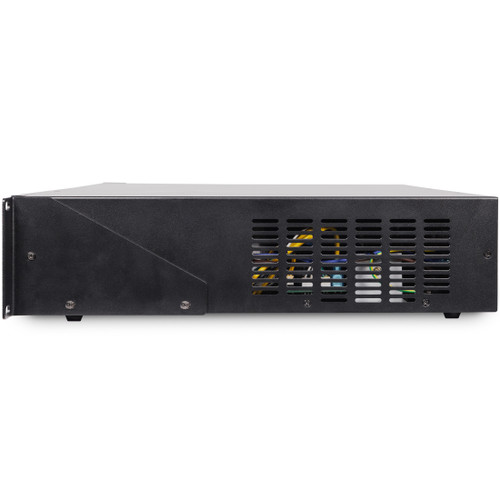

Pure Resonance Audio RZMA120BT 4 Zone Commercial Mixer Amplifier with Bluetooth 4 x 120W at 4-16 Ohms or 70V/100V (Discontinued)
Write a Review
Pure Resonance Audio RZMA120BT 4 Zone Commercial Mixer Amplifier with Bluetooth 4 x 120W at 4-16 Ohms or 70V/100V (Discontinued)
Part #:
RZMA120BT
Model #:
RZMA120BT
Availability:
No Longer Available
Contact us for comparable solutions.
Certified Audio Expertise
FREE Custom System Design
Get Expert Help Fast
Description
Pure Resonance Audio RZMA120BT 70V Bluetooth Commercial Multi-Zone Mixer Amplifier
Exceptional Multi-Zone Control
The Pure Resonance Audio RZMA120BT 4-zone mixer amplifier with Bluetooth delivers advanced multi-zone functionality, offering 120 watts per zone across 4-16 ohm, 70V, and 100V outputs. Designed for flexibility, this rack-mount mixer amplifier integrates seamlessly into commercial audio setups, featuring matrix technology that allows you to assign up to 5 selectable inputs to a single zone or multiple zones with just a button press. This makes this 70-volt mixer amplifier perfect for businesses needing diverse audio control across multiple spaces without complicated equipment.
Versatile Input and Playback Options
Equipped with an array of audio inputs and playback options, the RZMA120BT supports Bluetooth streaming, MP3 playback via USB and SD, and FM radio. This 120-watt mixer amplifier also includes XLR and RCA inputs, as well as a telephone input for paging, ensuring easy integration with existing phone systems. Each input channel offers independent gain, bass, treble, and volume controls for tailored sound adjustments. Whether used in retail, hospitality, sports venues, schools, or corporate settings, this multi-zone mixer amplifier is built to accommodate various audio sources.
Reliable, User-Friendly Design
Built with durability and ease of use in mind, the RZMA120BT features a 2U rack-mountable chassis and a user-friendly control panel. LED indicators, zone-select buttons, and dedicated volume knobs make operation straightforward, while a built-in monitor channel enables real-time zone monitoring. With overload, short circuit, and overheat protection, this 4-zone mixer amplifier ensures safe, reliable performance in commercial environments.
Features
- 4-Zone Flexibility - Easily assign audio to individual zones or all four simultaneously with advanced matrix technology, no programming or tuning is required
- Powerful - Delivers robust 120-watt output for each of the four zones, supporting 4-16 ohm, 70V, and 100V speaker setups
- Bluetooth & MP3 - Enjoy versatile playback options with built-in Bluetooth, USB, SD, FM tuner, and MP3 player for seamless audio streaming
- Versatile Inputs - Accommodates various audio sources across 5 channels, including XLR, RCA, telephone, and bare wire inputs, making it ideal for commercial environments
- Durable Design - Housed in a robust 2U, 19-inch rack-mountable chassis for stability and easy integration into any commercial audio rack setup
- Remote Control - Adjust volume and source settings easily with the included remote control, perfect for quick adjustments
Specifications
| Rated Power Output | 4 x 120 Watts at 70V |
|---|---|
| Speaker Outputs | 70V / 100V and 4-16Ω |
| LINE 1-3 Output Level | 1V / 600Ω (balanced output) |
| Monitor Output | 1W / 8Ω |
| Input Sensitivity | AUX: 500mV / MIC: 4mV |
| Frequency Response | 60Hz - 20kHz |
| Distortion (THD) | |
| Signal-to-Noise (S/N) Ratio | >80 dB |
| Equalization | High: ±10 dB at 100Hz / Low: ±10 dB at 100Hz |
| MP3 | Supports MP3 format, max capacity of 32GB |
| SD File System | Only FAT16 or FAT32 |
| Indicators | Indicators |
| Protection | Overheat, overload, and short-circuit |
| Power Consumption | 960W |
| Power Supply | ~110-120V 50-60Hz |
| Remote Control | IR remote uses replaceable AAA batteries |
| Rack Spaces | 2U |
| Dimensions (H x W x D) | 3.46" (88 mm) x 19.06" (484 mm) x 15.88" (403 mm) |
| Weight | 37.48 lbs (17 kg) |
DOCUMENTS
In The Box
- (1) RZMA120BT 4 Zone Bluetooth Mixer Amplifier
- (1) IR Remote Control
- (1) Power Cord
