Pure Resonance Audio S10 10" 70V Compact 2-Way Full-Range 90° x 90° All-Weather Coaxial Loudspeaker with 10" LF 8 Ohm 70V 100V
Usually arrives in 5-9 business days.

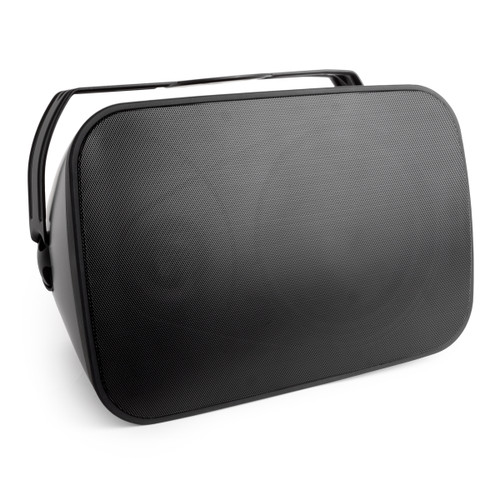

The Pure Resonance Audio S8.1 all-weather loudspeaker offers premium audio performance from an elegant but durable surface mount enclosure. The S8.1 delivers superb sound reproduction for foreground or background music and crystal clear announcements for paging, public address, and general-purpose audio year-round in indoor and outdoor commercial applications. IP65-rated (when the cover is installed and the speaker is mounted correctly), this 70-volt outdoor speaker is fully dust-tight and protected against direct contact with water or rain. Anti-UV materials added to the shell prevent fading in sunlight. A rugged Acrylonitrile Butadiene Styrene (ABS) housing and mesh metal grille provides outstanding impact resistance and long-term durability to withstand the harshest environments. The S8.1 is ideal for patios, decks, poolside, or high-moisture indoor environments that require superior speech intelligibility and outstanding music reproduction.
The S8.1 two-way commercial outdoor speaker produces up to 25 watts of continuous performance for an average sensitivity of 90 dB SPL, offering high output capabilities. The durable, functional design includes a 1.1" high-frequency silk soft dome tweeter for superb clarity and an 8" graphite low-frequency woofer for strong low-end with lower distortion, increased bandwidth, and improved transient response. Exclusive OBE (Optimal Bass Enhancement) radiator technology effectively enhances quality and performance for richer sound and outstanding full-range frequency response of 60Hz - 20kHz.

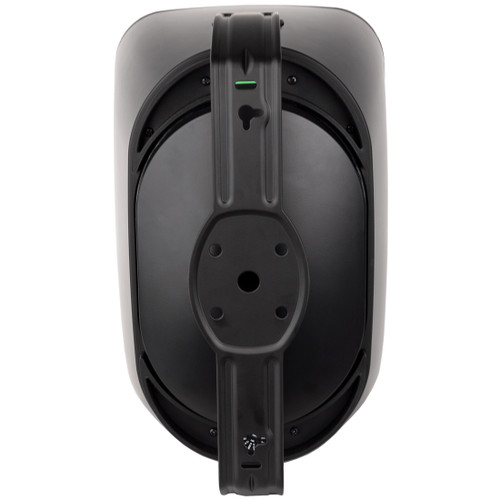

This 70-volt outdoor surface mount loudspeaker is designed for exceptional performance and ultimate installation convenience in restaurants, bars, retail stores, shopping malls, sports facilities, hotels, casinos, hospitality venues, health and fitness clubs, amusement and theme parks, Houses of Worship, schools, conference rooms, presentation spaces, corporate meeting rooms, conference centers, and other commercial audio distributed sound systems. Unique rear covers with rubber seals protect the Phoenix Euroblock 4-pin screw terminal connector and the built-in 70-volt/100-volt switchable transformer with taps ranging from 3.12W to 50W and an 8-ohm bypass selector. Installation is quick, simple, and reliable with the waterproof bracket with horizontal and vertical notches for two surface mounting options on walls, under awnings, overhangs, press boxes, and more.
| Power Rating | 50 Watt RMS 150 Watt Peak |
|---|---|
| Frequency Response (±10 dB) | 60Hz - 20kHz |
| Sensitivity (@ 1w/1m) | 90 dB |
| Max SPL | 102 dB |
| Dispersion (H x V) | 81° x 87° |
| Impedance | 8 Ohms |
| Transformer Taps | 3.12W, 6.25W, 12.5W, 25W @ 70V 6.25W, 12.5W, 25W, 50W @ 100V 8 Ohm Bypass |
| Woofer | 8" Graphite |
| Tweeter | 1.1" Silk soft dome |
| Grill | Metal |
| Material | ABS |
| Protection Rating | Water-resistant IP65 |
| Connection | 4-pin Euroblock screw terminal |
| Mount | Surface mounting bracket |
| Dimensions (H x W x D) | 15" (381 mm) x 9.84" (250 mm) x 9.84" (250 mm) |
| Net Weight | 11.16 lbs (5.06 kg) |
| Shipping Weight | 13 lbs (5.9 kg) |
