Pure Resonance Audio WMS1-HH Handheld Wireless Microphone System (Band A: 540 - 590 MHz)

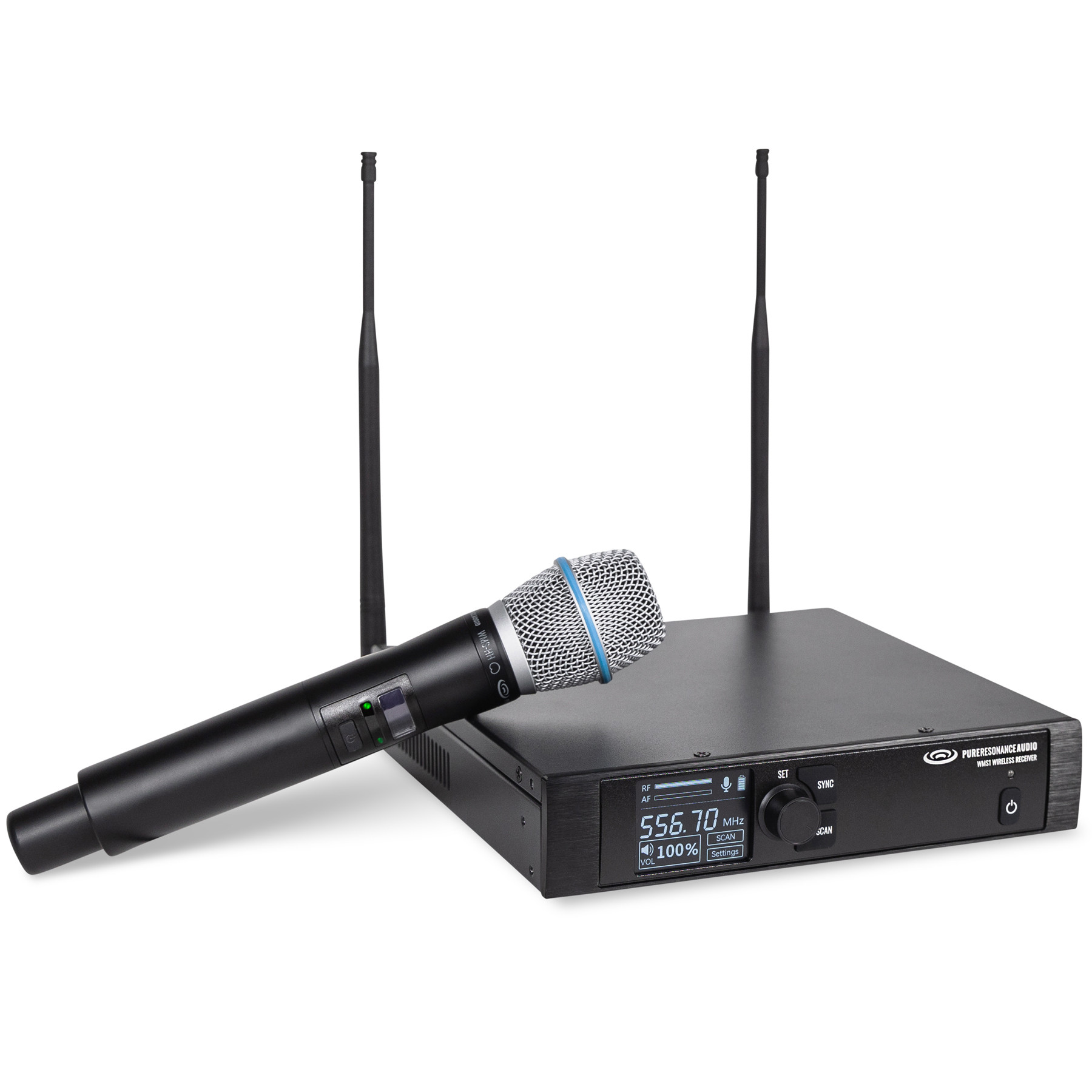

Pure Resonance Audio WMS1-HH Handheld Wireless Microphone System

Professional Wireless Microphone System with Exceptional Clarity

The Pure Resonance Audio WMS1-HH-A UHF wireless handheld microphone system delivers crisp, interference-free sound using advanced digital U-band transmission technology. Operating in the 540 - 590 MHz range with a broad 50 MHz UHF frequency bandwidth provides flexibility for various applications. Designed with a dynamic microphone core, the transmitter delivers natural, high-quality sound. The built-in equalizer offers high, mid, and bass adjustments for enhanced audio effects and a better listening experience. With professional quality performance, this wireless microphone system is ideal for classrooms, conferences, lecture halls, public speaking, vocal performances, live presentations, and more.

Reliable and Long-Lasting Performance

The WMS1-HH-A offers a working range of up to 328 feet and delivers up to 10 hours of performance with just two AA batteries. Its handheld transmitter is designed for comfort, making it easy to hold during extended presentations or events. Both the transmitter and receiver are built from durable metal, ensuring long-lasting components that withstand regular use. The professional wireless microphone system utilizes pi/4-DQPSK modulation, unique ID code pilot encryption technology, and a low bit error rate (BER) to provide a secure, encrypted signal free from cross-frequency interference. These advanced features ensure clearer, more reliable transmission with strong resistance to interference, even in challenging environments. The WMS1-HH-A also includes automatic shutdown and optional auto-mute functions, protecting the device and optimizing battery life and overall performance. With rugged housings, feedback resistance, and high-performance capabilities, the WMS1-HH-A is built to excel in demanding professional settings.

Intelligent Design & Easy Integration

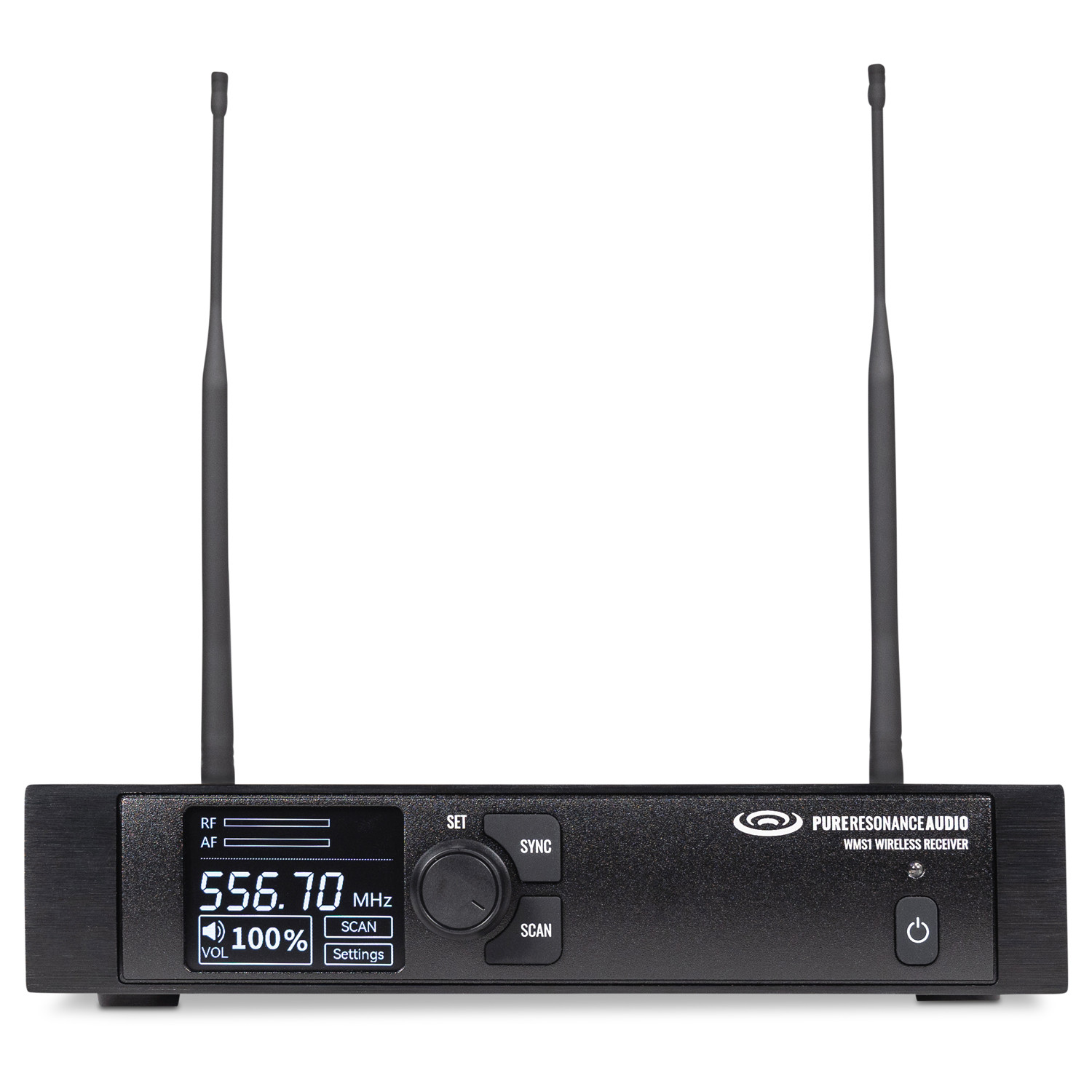

Setup for the WMS1-HH-A is quick and user-friendly, thanks to its automatic frequency scanning function that swiftly locates a clear frequency for the transmitter. Pairing the transmitter and receiver is made easy through infrared scanning and synchronization. The handheld wireless microphone transmitter features an OLED display that provides real-time status updates on battery level, signal strength, audio encryption status, frequency value, and mute status. Users can view current statuses and adjust settings through the receiver's TFT-LCD display screen. Additionally, the unique multifunction button on the microphone transmitter allows for easy muting, while the rack-mountable receiver offers both balanced XLR and unbalanced TS audio output jacks, ensuring seamless integration into any professional audio system.

• Design - The rack-mountable wireless microphone receiver is easy to integrate into any system, while the handheld transmitter offers a comfortable grip, perfect for extended use in live events and presentations
• Superior Audio - A high-quality dynamic wireless microphone transmitter with EQ adjustments for highs, mids, and bass allows for personalized audio balance and professional sound quality
• Reliable Signal - Strong anti-interference and encrypted signal transmission for stable, clear audio across a 328-foot operating range
• Long Working Time - Up to 10 hours of continuous operation ensures dependable performance throughout any event
• Easy Setup & Use - With an easy-to-use interface featuring automatic frequency scanning and IR sync functions, finding a clear frequency and pairing the transmitter with the receiver is quick and simple

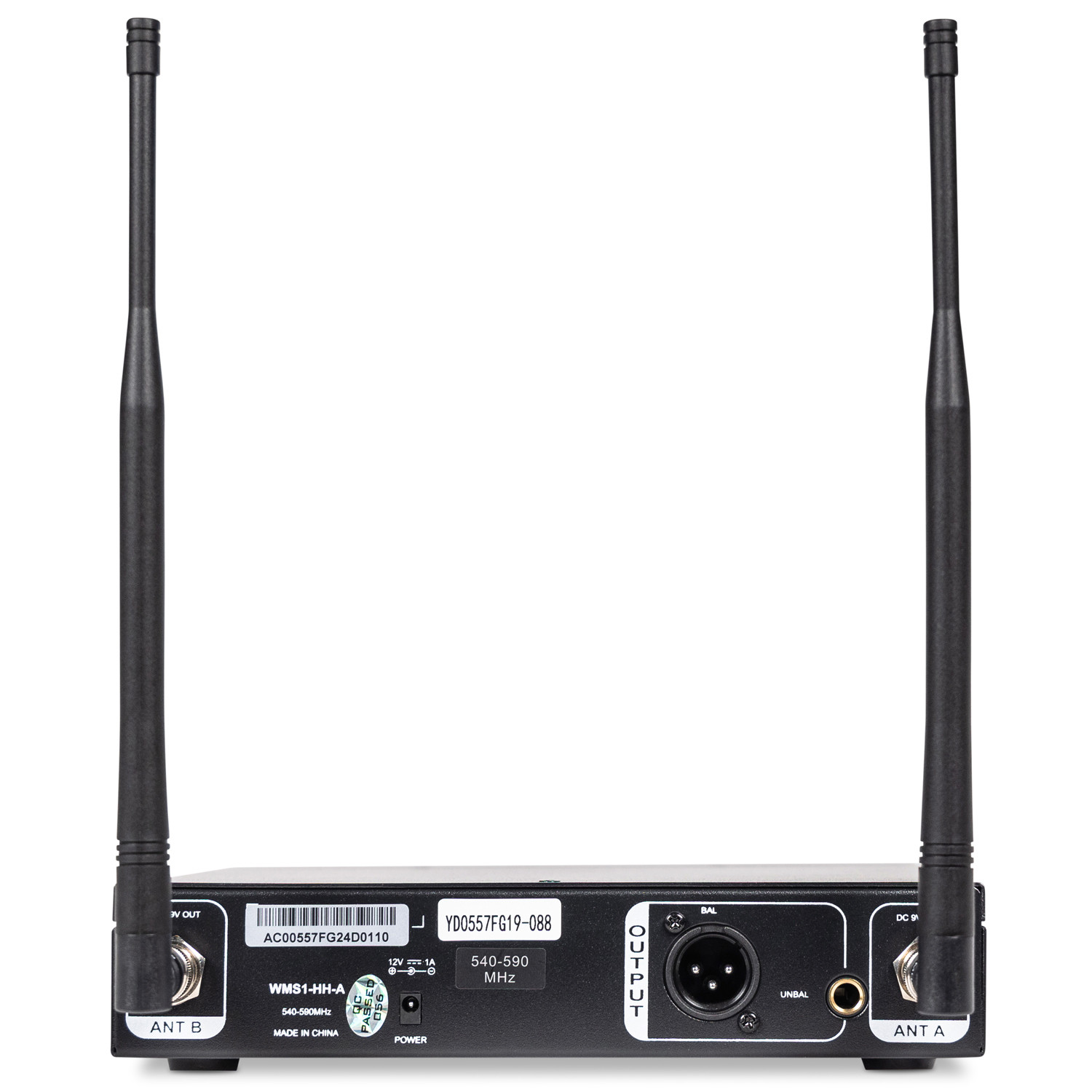

• Versatility - Supports both balanced XLR and unbalanced ¼" TS outputs, catering to various professional audio setups

Manual

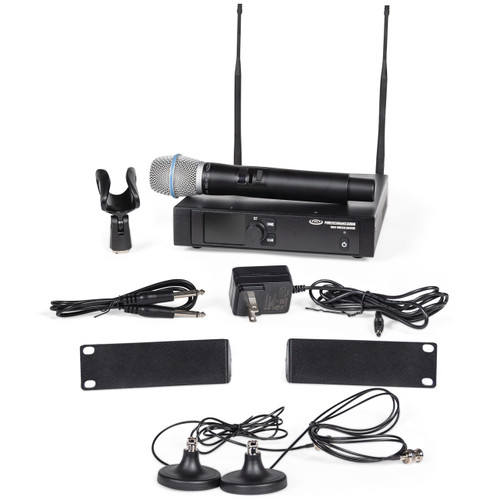

• (1) Handheld Wireless Microphone Transmitter
• (1) Rack Mountable Wireless Microphone Receiver
• (1) Microphone Clip
• (1) Power Supply
• (1) Unbalanced ¼" TS to ¼" TS Cable - 4ft
• (1) Rack Mount Bracket Set (2 Pieces)
• (2) External Mounting Antenna Bases with 60" Cables
• (2) Antennas with BNC Connector
