QSC AcousticDesign™ Series AD-C.SAT 2.75" Small Format Ceiling Satellite Loudspeaker
for Background Music in Retail, Cafe, Restaurant, Fine Dining, Hospitality, and Commercial Applications
The QSC AD-C.SAT is part of the AcousticDesign™ Series SUB/SAT loudspeaker line which is ideally suited for background music applications that require refined depth and clarity even at lower volume settings.
The AcousticDesign Series offers integrators a premium quality installed sound solution where performance, consistent coverage, and aesthetics are paramount. Specifically designed to maintain a consistent tonal characteristic across the entire family in ceiling, surface, and pendant enclosures, the AcousticDesign Series allows integrators seamless transitions within blended installations.
The AcousticDesign Series SUB/SAT loudspeakers have been specifically designed to be mix-and-match capable. Any combination of satellites may be paired with any subwoofer in the SUB/SAT line.

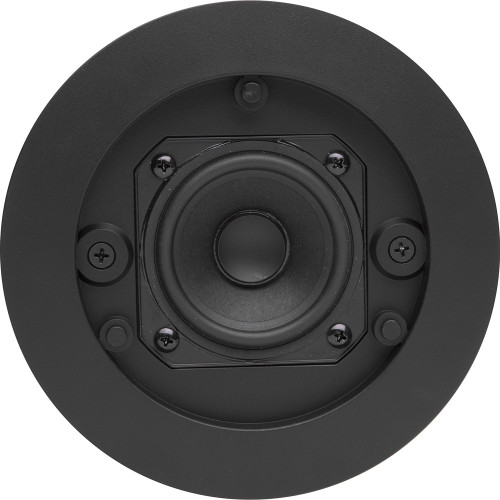

The AD-C.SAT features a high-quality 2.75-inch weather treated paper cone woofer with an inverted aluminum dust cap for extended high-frequency presence within a sealed enclosure.
These loudspeakers are rated at 16 Ω, and up to four satellites may be connected to any AcousticDesign Series SUB/SAT subwoofer's high-pass filtered outputs. Satellites also may be used as stand-alone loudspeakers using an external high-pass filter.
The input is located behind a removable conduit cover plate with captive screws to prevent loss during installation and uses a locking 2-pole Euroblock style connectors capable of 12AWG (2 mm) wire thickness.
To retain their stylish aesthetics, the rugged ABS baffle is further protected by using UV inhibitors that prevent discoloration and by a powder coated steel back can. The magnetic grill features a stick-on logo that can be removed blemish-free for installations where branding is not permitted.

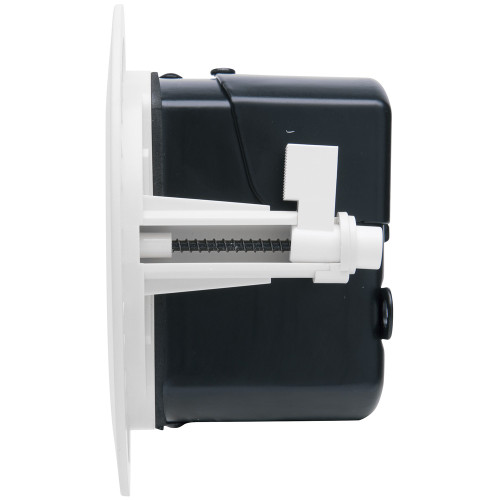

Installers will appreciate the 2x, long travel dog-ear blind mounting system, which captures from 0 - 2.25 inches of ceiling thickness.
Intrinsic Correction™ voicings that optimize performance and speed the install process are easily deployed via the MP-M Series music and paging mixers as well as the Q-SYS Platforms, including CXD-Q Series amplifiers, as part of a complete QSC systems solution.
The AD-C.SAT is also available in black (AD-C.SAT-BK) and may be painted to match any decor.
| HF Transducer | 2.75" (70 mm) weather treated paper cone woofer |
|---|---|
| Effective Frequency Range | 150 Hz – 20 kHz |
| Rated Noise Power / Voltage | 25W / 20V (rms) |
| Sensitivity [dB] | 82 (rated @ 1 W, 1 m) |
| Coverage (‐6 dB) | 170° Conical |
| Maximum SPL [dB] | 90 continuous / 96 peak |
| Recommended Amplifier | 25W (with 1st order high-pass filter at 200 Hz) |
| Transformer Taps / Impedance | Bypass: 16 Ω |
| Connector | 2-pole Euroblock connectors |
| Enclosure Material | ABS baffle on powder coated steel back can |
| Grill Material | Powder coated steel |
| Operating Environment | Designed for indoor use |
| Operating Temperature Rrange | -4 to 122° F (-20 to 50° C) |
| Color | White |
| Included Accessories | C-ring, Euroblock connector, cut-out template, grill (pair packed) |
| Ingress Protection | IP-34 |
| Dimensions (Dia x H) | 5.9" (150 mm) x 3.4" (86 mm) |
| Weight | 1.39 lbs (0.63 kg) |
