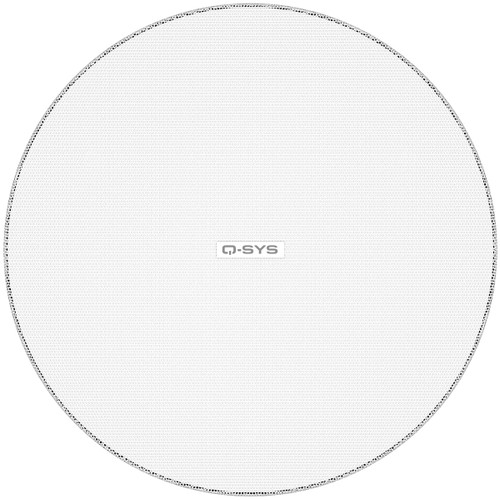

QSC AD-C6T-ZB AcousticDesign 6.5" 2-Way Zero-Bezel Ceiling Loudspeaker - Pair

Description

Details

QSC AD-C6T-ZB AcousticDesign 6.5" 2-Way Zero-Bezel In-Ceiling Speakers

The AD-C6T-ZB ceiling speaker offers consistent tonal characteristics across the entire AcousticDesign™ family, whether in surface or ceiling applications. It features a sleek zero-bezel design suited for modern architectural spaces and a Directivity Matched Transition® (DMT) waveguide that ensures smooth, uniform frequency response across the coverage area. The speaker includes a snap-fit magnetic grille and a 3x double-stepped, long-travel dog-ear blind mount system for easy installation. Advanced Intrinsic Correction™ voicings are available via Q-SYS™, and it supports low-saturation, low-loss 70/100V transformers with a 16 Ω bypass. Additional features include a blemish-free removable logo and a removable conduit cover plate, also offered as an accessory for pre-install wiring. It is available in signal white (RAL 9003), with a black grille accessory sold separately. Complete EASE, CAD, and BIM information is available online.

Features

Features

Consistent tonal characteristics across the entire AcousticDesign™ family in both surface or ceiling applications
Sleek zero bezel design for modern architectural needs
Directivity Matched Transition® (DMT) waveguide ensures smooth, uniform frequency response over the coverage area
Snap-fit magnetic grille
3x double stepped, long travel dog-ear blind mount system
Advanced Intrinsic Correction™ voicings available via Q-SYS™
Low-saturation and low-loss 70/100V transformers with 16 Ω bypass
Blemish-free removable logo
Removable conduit cover plate, also available as accessory for pre-install wiring
Available in signal white (RAL 9003), with black grille accessory sold separately
Complete EASE, CAD, & BIM information available online

Specification

Effective Frequency Range	65 Hz – 20 kHz
Rated Noise Power / Voltage	60W / 31V (rms)
Sensitivity (dB)	88 dB SPL
Maximum Continuous SPL	106 dB
Maximum Peak SPL	112 dB
Rated Bypass Impedance	16 Ω
Transformer Taps / Impedance	16 Ω (in bypass setting) 3.75W (70V); 7.5W (100V) Tap: 1333 Ω 7.5W (70V); 15W (100V) Tap: 667 Ω 15W (70V); 30W (100V) Tap: 333 Ω 30W (70V); N/A (100V) Tap: 167 Ω
HF Transducer	.75" (19 mm) aluminum dome tweeter
LF Transducer	6.5" (165 mm) weather resistant paper cone woofer
Input Connector Type	Euroblock connector with parallel output
Enclosure Material	ABS baffle on powder coated steel back can
Grille Material	Powder coated steel
Safety Agency	UL1480, UL2043, NFPA90, NFPA70 suitable for use in air handling spaces. Transformer UL registered per UL1876, ROHS, C-Tick X000, CE compliant. Baffle meets UL94-V0 and UL94-5VB flammability rating; in accordance with IEC60849 / EN60849 systems.
Included Accessories	C-ring and tile rails, rail screws, euroblock connector, cut-out template, tether grille
Cut-Out Dimensions (Dia)	9.65" (245 mm)
Dimensions (Dia x H)	11.02" (280 mm) x 9.32" (237 mm)
Shipping Dimensions (H x W x D)	13" (330 mm) x 29" (737 mm) x 15" (381 mm)
Net Weight (Individual)	9.5 lbs (4.3 kg)
Shipping Weight (Pair)	27.8 lbs (12.6 kg)
