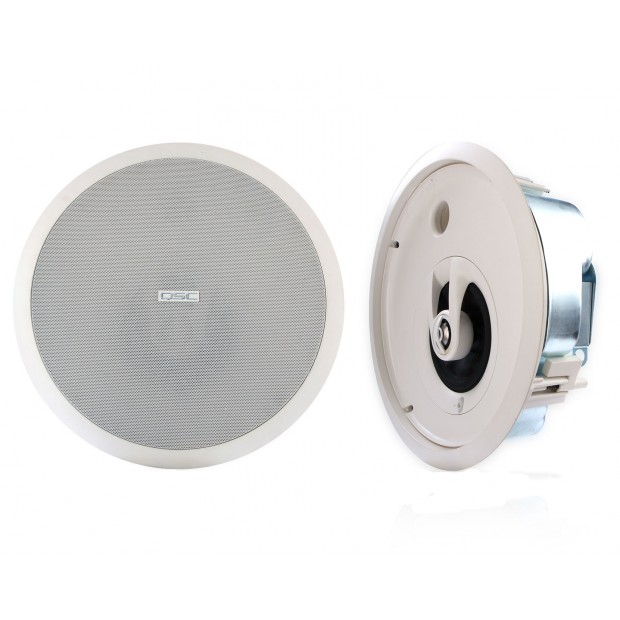

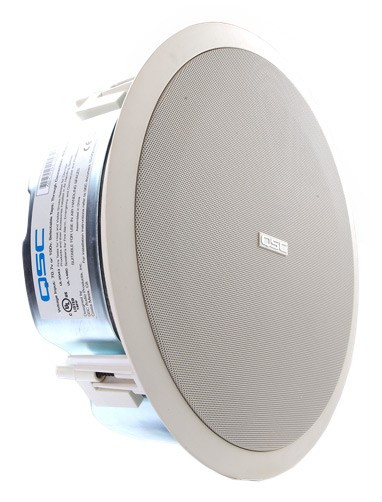

QSC AD-CI52ST-WH In-Ceiling Speaker - Pair (Discontinued)

Description

Details

The QSC AD-CI52ST has been replaced with the QSC AD-C4T.

The QSC AD-CI52ST-WH Design "C" Series ceiling speakers employ a 5.25" weather-resistant LF transducer incorporating a low distortion fiberglass cone, a 25mm voice coil, and a rubber surround. The HF driver is a 1" pure titanium dome tweeter utilizing a neodymium magnet structure. With its larger, ported enclosure, the AD-CI52ST provides greater low frequency extension and makes an excellent choice for installations requiring shallow install depth - such as cruise ships. By contrast, the AD-CI52T has a smaller "footprint" - enabling this speaker to be less visually intrusive. While both models are weather-resistant, the AD-CI52T, by not being a ported enclosure, carries the added benefit of being a fully sealed speaker system.

The AD ceiling speakers are packaged with the backcan, support bracket, tile rails, and a grille. For integration with any décor, the trim and grille can be painted. Additionally, these speakers are well suited for use in air handling spaces per UL2043 and UL1480. There is also a seismic tab provided for secondary support.

Delivering exceptional sound quality and value for background music and paging systems, the AD-CI52T and ADCI52ST are ideal for a wide range of business applications, including hotels, restaurants and pubs, corporate offices, retail spaces, convention centers, recreation facilities, churches, airports, etc.

Featuring an unusually wide frequency range and the ability to deliver higher SPLs, the AD Series loudspeakers provide natural sounding lows and transparent highs for a truly musical sound with very low distortion. Coupled with wide and even dispersion, the AD-CI52T and AD-CI52ST deliver outstanding coverage.

Features

Features

Wide-Bandwidth, High-Fidelity Performance - ensures a full, rich, musical sound with low distortion
Shares Driver Technology with AD-S (surface mount) loudspeakers for Seamless Sonic Integration
AD-CI52ST Employs Shallow Can - can be mounted in ceilings and standard architectural walls
True High-Fidelity, 2-Way Design - speakers feature a 1" titanium HF dome tweeter

Specification

Configuration	Shallow can, two-way, ported enclosure
Transducers
Low Frequency Transducer	5.25" Weather-resistant, low distortion fiberglass cone woofer, 25 mm voice coil, rubber surround
High Frequency Transducer	1" titanium dome tweeter, neodymium magnet
Frequency Range
Frequency Response (±3 dB)	63 Hz - 20 kHz
Useable Frequency Range (-10 dB)	53 Hz - 20 kHz
Maximum Output	Continuous: 103 dB SPL, Peak: 109 dB SPL
Nominal Impedance	8 ohms
Power Capacity	40 W (100 hours IEC)
Recommended Max Amp Power	80 W RMS
Sensitivity	87.5 dB, 2.83 V, 1 m, flush mounted (2pi)
Nominal Coverage	100° conical pattern
Bass Loading	Ported, tuned to 70 Hz
Transformers
Type	Custom low distortion laminated core, wide bandwidth design
Taps	70/100V: 30, 15, 7.5, 3.8 Watts and 8 ohms selected by switch
Insertion Loss	0.8 dB, averaged over 50 Hz - 20 kHz bandwidth (30 W tap)
Distortion	Less than .01% THD above 100 Hz,0.2% at 50 Hz (30 W tap)
Bandwidth	40 - 20 kHz (-1 dB, all taps)
Enclosure
Material	Injection molded high impact polystyrene baffle on a steel enclosure
Finish	White (paintable)
Grill	Heavy duty powder coated steel
Connectors	4-pin Euro terminals in fire protective sub-chamber
Mounting Hardware	Rails and brackets for ceiling tile installation
Net Weight (ea)	8 lbs (3.7 kg)
Shipping Weight (Per Pair)	27 lbs (12.2 kg)
