QSC AD-S112SW AcousticDesign 12 inch Subwoofer
QSC AD-S112SW AcousticDesign 12 inch Subwoofer
QSC AD-S112SW AcousticDesign 12 inch Subwoofer
QSC AD-S112SW AcousticDesign 12 inch Subwoofer
QSC AD-S112SW AcousticDesign 12 inch Subwoofer
QSC AD-S112SW AcousticDesign 12 inch Subwoofer
By QSC Audio

QSC AD-S112SW AcousticDesign 12 inch Subwoofer

Write a Review
Part #:
AD-S112-SW-BK
Model #:
AD-S112-SW
MSRP: $1,030.99
$1,030.00
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Adding to cart… The item has been added
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

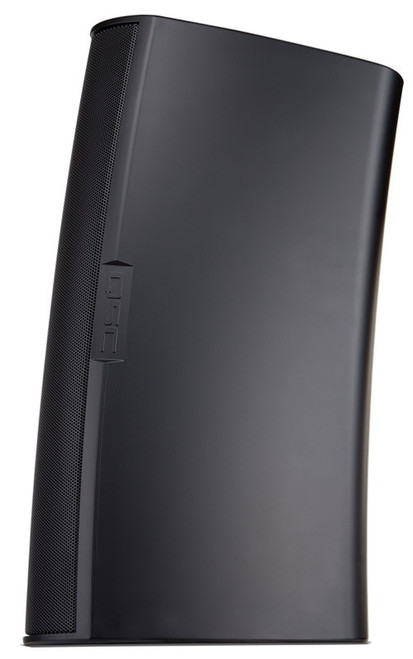

The QSC AD-S112SW Acousticdesign 12" subwoofer provides optimal resonant tuning and high velocity air flow along with advanced voicing filter sets. Its weather resistant enclosure makes it perfect for either indoor or outdoor use.

Description
The QSC AD-S112SW is an Acousticdesign 12" subwoofer with a maximum peak SPL at 121 dB. The AD-S112SW has a TFR (Turbulent Flow Reduction) port that provides optimal resonant tuning and high velocity air flow. Its advanced voicing filter sets use QSC Intrinsic Correction, which is available through either Q-Sys processing or CXD amplifier platforms.

The AD-S112SW has a lightweight enclosure which offers long-term durability and lasting good looks.  Its sealed input panel cover and powder coated aluminum grilles are for added weather resistance.

A yoke mount is included with the AD-S112SW which helps maximize boundary plane coupling while reducing vibration transmission.

Features
  • 12” weather treated woofer
  • TFR™ (Turbulent Flow Reduction) port for optimal resonant tuning and high velocity air flow
  • Maximum peak SPL 121 dB
  • Included yoke mount
  • Optional M10 Kit-C for additional installation versatility
  • Advanced voicing filter sets using QSC Intrinsic Correction™
  • Lightweight ABS enclosures for durability and lasting good looks
  • Sealed input panel cover and powder coated aluminum grilles for added weather resistance
  • Meets IEC60529 IP-54 for dust and splash resistance

Specifications
System
Effective Frequency Range 30 to 135 Hz
Rated Noise Power / Voltage 300 watts / 50 volts (rms)
Broad-Band Sensitivity 90 dB SPL
Maximum Continuous SPL 115 dB
Maximum Peak SPL 121 dB
Rated Impedance 8 ohms
Recommended Amplifier Power 600 watts
LF Transducer 12” weather resistant paper cone woofer, 2.5” / 64mm voice coil
Input Connector Type Euroblock connector with parallel output
Enclosure Material Painted ABS polymer
Grille Material Powder coated aluminum
Yoke Material Powder coated galvanized steel
Enclosure
Ingress Protection IP-54
Operating Environment Designed for indoor and outdoor use
Operating Temperature Range -20 to 50° C / -4 to 122° F
Included Accessories Yoke mounting system, euroblock connector, input panel cover
Physical
Product Dimensions 23.4” × 13.9” × 12.7” (594 mm × 354 mm × 323 mm)
Shipping Dimensions 27.5” x 21.75” x 18.5” (698 mm x 552 mm x 470 mm)
Net Weight 29 lbs (13.2 kg)
Shipping Weight 43.1 lbs (19.6 kg)
