QSC AD-S52T 5.25 inch Surface Mount Loudspeaker - Pair (Discontinued)
Part # AD-S52T
Model # AD-S52T
The QSC AD-S52 is a full range, surface mount loudspeaker with sleek, contemporary styling that fits perfectly into multiple environments and applications including hotels, restaurants, & convention facilities.

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

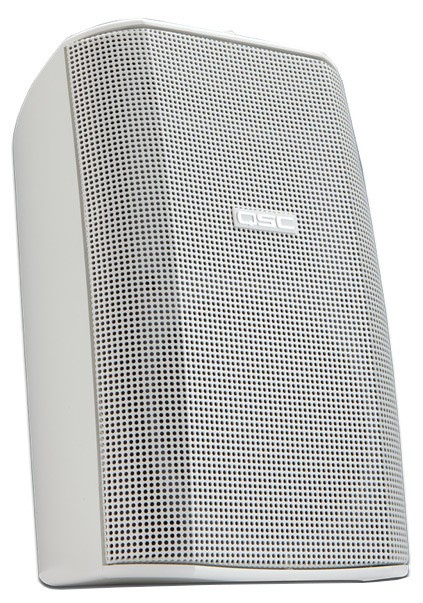

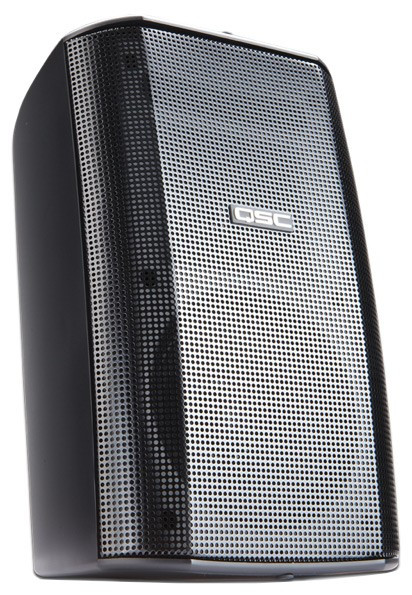

The QSC AD-S52T Surface Mount Loudspeaker's low frequency driver is magnetically shielded, making it perfect for use near video monitors. Available in black or white, these great sounding, weather resistant enclosures can be painted to match any specific decor.

The AD-S52 is a high output, 2-way design incorporating a 5.25" weatherproof, LF transducer and a 1" neodymium tweeter. This exceptional loudspeaker carries the added benefit of built-in dynamic power protection - thus ensuring system reliability in the event of overload conditions.

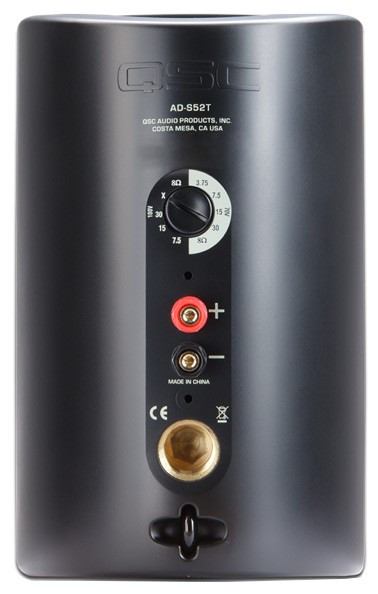

The AD-S52T models are equipped with a 70V/100V matching transformer for distributed audio systems. There is a transformer tap switch on the rear panel for setting the power level of the loudspeaker. This switch may also be set for 8-ohm operation, bypassing the transformer completely - providing greater system flexibility compared to most competing products.

The AD-S52 system package includes a ball mount assembly for convenient installation of the enclosure in a wide variety of orientations. If desired, the ball mount adapter's back plate can be removed, reducing the overall depth of the assembly and the footprint of the mount on the wall. Further, the assembly includes a weather resistant input connection cover to protect the 5-way binding post input terminals.

Features

Features

  • 5.25 Inch, 2-way Design - in a lightweight, contemporary styled multipurpose enclosure
  • Magnetically Shielded LF Transducer - ideal for use near video monitors
  • Flexible Ball Mount Assembly Included - for convenient installation
  • 70V/100V Transformer - for use with distributed audio systems
  • Available Optional Yoke Mount Bracket
Specification
ConfigurationCompact two way, ported enclosure
Transducers
Low Frequency Transducer5.25" shielded, weather-resistant
High Frequency Transducer1" neodymium tweeter
Frequency Range
Frequency Response (±3 dB)75 Hz - 19 kHz
Useable Frequency Range (-10 dB)60 Hz - 20 kHz
Maximum OutputContinuous: 104 dB SPL, Peak: 110 dB SPL
Nominal ImpedanceSwitchable 8 ohms
Power Rating60 W (IEC, 100 hours)
Recommended Max Amp Power120 W RMS
Sensitivity86 dB, 2.83 V, 1 m, free field (4pi)
Nominal Coverage90° H x 90° V
Transformers
TypeCustom low distortion laminated core, wide bandwidth design
Taps70V: 30, 15, 7.5, 3.75 Watts
100V: 30, 15, 7.5 Watts
Enclosure
MaterialInjection molded, weather resistant,high impact polystyrene
FinishWhite or black (paintable)
Weather ResistanceYes
GrilleHeavy duty powder coated aluminum
ConnectorsPair of 5-way binding posts
Mounting HardwareIncluded ball mount assembly; available optional yoke mount
Weight18 lbs (8.2 kg)
Shipping Weight25 lbs (11.4 kg)
