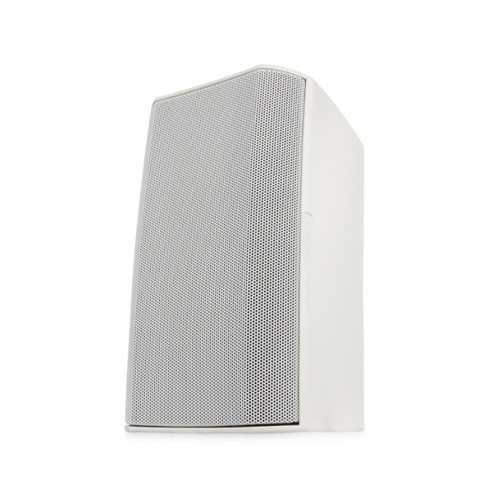

QSC AD-S6T AcousticDesign 6.5" 2-Way Wall Mount Loudspeakers - White Pair

By QSC Audio

QSC AD-S6T AcousticDesign 6.5" 2-Way Wall Mount Loudspeakers - White Pair

Name: QSC AD-S6T AcousticDesign 6.5" 2-Way Wall Mount Loudspeakers - White Pair
Brand: QSC Audio
SKU: QSC-AD-S6T-WH
Price: 1020 USD
Availability: InStock

Write a Review

Part #:

AD-S6T-WH

Model #:

AD-S6T

Current Stock:

MSRP: $1,020.99

$1,020.00

Availability: Usually arrives in 5-9 business days.

Quantity:

Adding to cart… The item has been added

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The QSC AD-S6T AcousticDesign 6.5" 2-way surface mount loudspeaker has smooth, uniform frequency response over a 105° axisymmetric (conical) coverage area. Its X-Mount system makes for easy installation whether it's indoors or outdoors.

Description

The QSC AD-S6T is an AcousticDesign 6.5" 2-way surface mount loudspeaker. With its 6.5" weather treated woofer and 1" silk dome tweeter, the AD-S6T has DMT (Directivity Matched Transition) that ensures smooth, uniform frequency response over a 105° axisymmetric (conical) coverage area.

The AD-S6T has an X-Mount system that enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time. It also has advanced voicing filter sets that use QSC Intrinsic Correction, which is available through either Q-Sys processing or CXD amplifier platforms.

The AD-S6T's lightweight ABS enclosure offers long-term durability and lasting good looks. Its sealed input panel cover and powder coated aluminum grilles are also added for weather resistance.

Features

6.5" weather treated woofer; 1" silk dome tweeter
105° conical DMT coverage
60 watt low-saturation and low-loss 70/100V transformers with 8Ω bypass
Maximum peak SPL 116 dB (8 ohm bypass)
DMT™ (Directivity Matched Transition) ensures smooth, uniform frequency response over the coverage area
X-Mount™ system enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time
Advanced voicing filter sets using QSC Intrinsic Correction™, available through either Q-SYS processing or CXD amplifier platforms
Lightweight ABS enclosures offer long-term durability and lasting good looks
Sealed input panel cover and powder coated aluminum grilles for added weather resistance
Meets IEC60529 IP-54 for dust and splash resistance

Specifications

Effective Frequency Range	60 Hz to 20 kHz
Rated Noise Power / Voltage	150 watts / 35 volts (rms)
Broadband Sensitivity	89 dB SPL
Coverage Angle (-6 dB)	105°
Directivity Factor (Q)	5
Directivity Index	7 dB
Maximum Continuous SPL	110 dB
Maximum Peak SPL	116 dB
Rated Impedance	8 ohms
Recommended Amplifier Power	300 watts
Transformer Taps	70V: 60, 30, 15, 7.5W and 8Ω bypass; 100V: 60, 30, 15W and 8Ω bypass
HF Transducer	1" silk dome tweeter / 1" voice coil, horn loaded
LF Transducer	6" weather resistant paper cone woofer; 1.5" / 38 mm voice coil
Input Connector Type	Euroblock connector with parallel output
Enclosure Material	Painted ABS polymer
Grille Material	Powder coated aluminum
X-Mount Material	Powder coated aluminum
Ingress Protection	IP-54
Operating Environment	Designed for indoor and outdoor use
Operating Temperature Range	20 to 50° C / -4 to 122° F
Included Accessories	X-Mount mounting system, euroblock connector, input panel cover
Dimensions (H x W x D)	14.4" (365 mm) x 8.5" (215 mm) x 8.5" (215 mm)
Shipping Dimensions (Pair)	20" (510 mm) x 12" (305 mm) x 23" (585 mm)
Net Weight	13.6 lbs (6.2 kg)
Shipping Weight (Pair)	33.4 lbs (15.2 kg)
