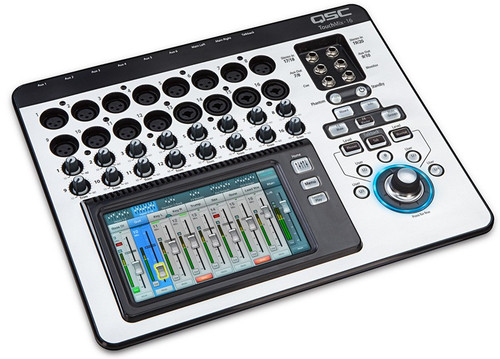

The QSC Audio TouchMix-16 Compact Digital Mixer has the functionality to satisfy demanding professionals combined with a range of features and functions that help the less experienced user achieve quality results. This mixer is completely self-contained. They require no external PC or video display. The graphic, color touch-screen provides display of and access to mix parameters. Mixer parameters may be adjusted on the screen or via the physical rotary encoder. Frequently used functions can be accessed or controlled using hardware buttons.
The TouchMix may also be controlled remotely by means of Wi-Fi connection to wireless iOS devices. The available Remote Control App controls all mixer parameters and the mixer includes a WiFi adapter that creates the network connection between the mixer and the hand-held device. No external network hardware is required.
To sound their best, musicians need to hear themselves. With four (TouchMix-8) or ten (TouchMix-16) auxiliary output channels, TouchMix has ample stage monitor mixing capability. Both models have the ability to drive multiple, wired stereo in-ear monitors directly.
TouchMix is also capable of direct recording to an external USB hard drive – no external computer is required. All inputs plus a stereo mix are created in 32-bitbroadcast wave format. Tracks can also be played back on the mixer or imported into most DAW software for over-dubs and post production.
Finally, the TouchMix comes complete with its own padded carrying case, for transport and protection. Wherever your music takes you, the TouchMix will be there, ready to take the stage to help you achieve the most ideal sound for your audience.
| Display | 6.1" x 3.5" (156 mm x 90 mm) color TFT, touch sensing |
|---|---|
| Inputs (Mic/Line) | 20 Total; 4, XLR/TRS combi; 12, XLR; 2 Stereo, 1/4” TRS |
| Input (Talkback) | 1, XLR |
| Outputs | 2 Main XLR, Line;6 Aux XLR, Line 2 Stereo Aux. TRS, (Line or In Ear Monitor, 16 Ohm min. impedence) 1 Stereo Monitor, TRS, (Line or headphone, 16 Ohm min. impedence) 1 Stereo Cue, TRS, (Line or headphone, 16 Ohm min. impedence) |
| Mic & Line Input Channel Processing | 4-band, parametric EQ with Hi/Low shelving option, variable 24db/octave HPF & LPF, Gate, Compressor |
| 2-Track (USB) & FX Return Processing | 2-band shelving EQ, variable 24db/octave HPF, Gate, Compressor |
| Output Channel Processing | Main outputs and auxes 1 - 6: 1/3 octave GEQ, Variable HPF and LPF, 4-band variable notch filters, Limiter, Auxes 7/8 & 9/10 (TM-16 only): 4-band PEQ, Limiter |
| Recording | 20 tracks, requires USB 3.0 HD, minimum 7800 RPM |
| Groups | 8 DCA groups (with mutes), 8 Mute groups |
| Cue | Input cue priority, AFL, PFL, Solo In Place |
| Effects | 4 professional effects engines including reverb, echo, delay, chorus. 50 factory, 50 user presets, 1 Pitch Correct (assignable to any mono input channel) |
| Preset Memory | Mixer Preset: Factory & User mixer presets including all mixer parameters, Channel Preset: User channel presets may be stored internally or loaded to / from USB |
| External Control | iOS mixer app for iPad, control via Wi-Fi provides access to all mixer functions |
| Wi-Fi | USB Wi-Fi adapter included |
| Line Voltage Requirements | 100 VAC - 240 VAC, 50 - 60 Hz |
| Sampling Frequency | Selectable 44.1kHz or 48kHz |
| Internal Processing | 32-bit floating point |
| Signal Delay | |
| THD | |
| Frequency Response | 20 Hz - 20 kHz +/-0.5 dB, any input to any output |
| Dynamic Range | 105dB |
| Equivalent Input Noise | -128dBu |
| Residual Output Noise | -86dBu |
| Crosstalk | -80dB |
| S/N Ratio | -94dB |
| Maximum Input Level | +16dB (Mic inputs), +22dB (Line inputs) |
| Phantom Power | 48V, individually switchable per channel |
| Included Accessories | USB WiFI adapter, Soft Carrying Case, Power Supply |
| Dimensions (H x W x D) | 3.5" (89 mm) x 14.2" (360 mm) x 11.7" (297 mm) |
| Weight | 5.9 lbs (2.98 kg) |
