QSC GX7 725 Watts Per Channel 8 Ohm Stereo Power Amplifier (Discontinued)
QSC GX7 725 Watts Per Channel 8 Ohm Stereo Power Amplifier (Discontinued)

By QSC Audio

QSC GX7 725 Watts Per Channel 8 Ohm Stereo Power Amplifier (Discontinued)

Write a Review
Part #:
GX7
Model #:
GX7
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL
The GX7 amplifier is ideal for professional entertainer who require maximum performance and portability on a limited budget. The hallmarks of the QSC brand professional audio quality, precision manufacturing and long-term reliability.

Description

Add contemporary styling, multiple input/output options, light weight, and advanced protection circuitry, and the GX Series clearly represents real value – something everyone can use.

GX amplifiers deliver just the right amount of power to the most popular speakers used by entertainers. Typically, loudspeaker manufacturers recommend an amplifier with power output equal to the speaker’s “Program (Music) Power” rating or two times (2 x) the “Continuous (RMS) Power” rating.

The GX7 outputs 725 watts into an 8 ohm load. Owners of popular 4 ohm loudspeakers (such as dual-woofer, two-way models) will find the 700 watt (4 ohm) power, the GX7 1000 watts will very capably power many of today’s popular subwoofers or two typical 8 ohm speakers per channel.

The GX7 adds the road-proven PowerLight supply to the Class H output section, for more overall output power and additional weight savings. The result is one of the highest power-to-weight ratios in the industry. A low-noise variable-speed fan with rear-to-front airflow keeps amplifiers and racks cool.

As always, GX Series amplifiers are fully protected from the usual hazards of the trade, ensuring stable performance and long life.

Features
  • Power levels matched to the most popular speakers used by entertainers.
  • Optimized for maximum real-world headroom into 4 ohm and 8 ohm speaker systems.
  • Inputs: XLR, 1/4" TRS and phono input connectors for compatibility with any source.
  • Outputs: Speakon® combo accepts, 1/4" (TS) plugs or Speakon 2-pole and 4-pole plugs (connects 2 poles only). Binding posts support all other speaker wiring systems.
  • Minimum depth chassis (10.1"/257 mm) fits in compact, inexpensive effects racks.
  • Detented gain controls for precise setting and matching of sensitivity.
  • GuardRail™ automatically protects the amplifier and loudspeakers from damage due to temperature rise or overdrive without shutting down the show.
  • Front panel LEDs monitor Power, Signal and Clipping.
  • Subwoofer/Satellite crossover built-in.

Specifications
8 ohms / 1 kHz (both channels driven) 725 W
8 ohms / 1 kHz (single channel driven) 800 W
4 ohms / 1 kHz (both channels driven) 1000 W
4 ohms / 1 kHz (single channel driven) 1200 W
Distortion (1 dB below rated power, 1 kHz) 8 ohms: less than 0.02%4 ohms: less than 0.05%
Signal to Noise (20 Hz - 20 kHz) 100 dB
Input Sensitivity 1.2 Vrms
Voltage Gain (8 ohms) 36.1 dB
Output Circuitry 2-tier Class H
Power Requirements (1/8 power, pink noise at 4 ohms, 120V) 10.1A
Frequency Response 20 Hz - 20 kHz, +0, -1 dB
Dynamic Headroom (4 ohms) 2 dB
Input Impedance (ohms) Greater than 20k (balanced)
Maximum Input Level +24 dB (16 Vrms)
Input Connectors (each channel) 3-pin XLR and 1/4" TRS, balanced, parallel Phono, unbalanced
Output Connectors (each channel) Speakon®, 1/4", Binding Posts
Amplifier and Load Protection Short circuit, open circuit, thermal, RF protection Load protected against DC faults
Front Panel Controls and Indicators Gain controls, 21 detents Red Clip LEDs, proportional, 0.1% THD threshold Green Signal LEDs
Front Panel Controls and Indicators threshold -35 dB Blue Power LED, AC on
Rear Panel Controls Full Range / Crossover switch100 Hz, 3rd order LP (sub), 2nd order HP (top)
Dimensions Height: 3.5" (89 mm) 2RU Width: 19" (483 mm) Depth: 10.1" (257 mm)
Weight
Net Weight 15.5 lbs (7 kg)
Shipping Weight 20.5 lbs (9.3 kg)
230V model
Net Weight 16.5 lbs (7.5 kg)
Shipping Weight 21.5 lbs (9.75 kg)

Related Products

Sold Out

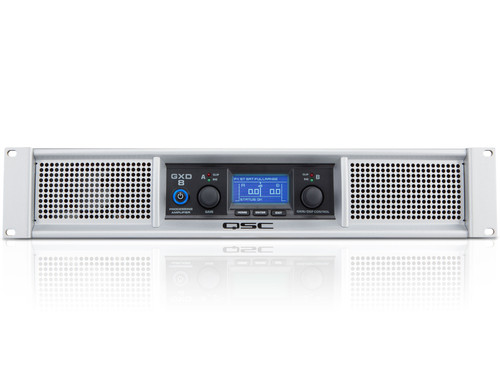

QSC GXD 8 Professional 4500W Power Amplifier with DSP (Discontinued) QSC GXD 8 Professional 4500W Power Amplifier with DSP (Discontinued)

QSC GXD 8 Professional 4500W Power Amplifier with DSP (Discontinued)

As part of the E Series Entertainment System, the GXD amplifiers are ideal for entertainment and production applications. With integral signal processing and outstanding performance, the GXD...
MSRP: $1,439.99
$1,199.99

Usually arrives in 5-9 business days.

MSRP: $1,439.99
$1,199.99
Sold Out

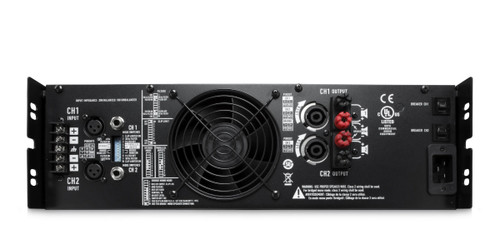

QSC RMX 4050a 2-Channel Power Amplifier (Discontinued) QSC RMX 4050a 2-Channel Power Amplifier (Discontinued)
