- Description
Details

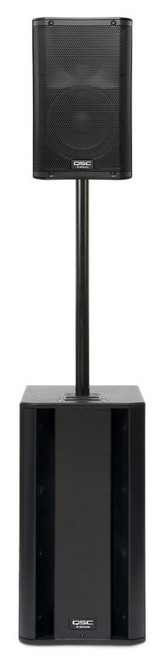

The QSC K10 10 inch 2 Way Loudspeaker is quite simply The New Standard in lightweight powered loudspeaker systems. For starters, each of the four models features an all new, Pat Quilter designed 1000 watt continuous QSC Class D power module. Next, breaking from the traditional loudspeaker paradigm, every model is fitted with the identical 1.75" HF device (full-range models) and woofers of the same high quality for unparalleled performance, regardless of speaker size.
Extensive DSP processing is employed throughout, providing levels of sonic clarity and total output that defy the system’s size and weight. Premium-grade materials, advanced construction processes and multiple mounting and suspension options allow for a wide range of live and installed applications.
The combo XLR and 1/4" TRS inputs accept both Mic and Line Level input while a set of RCA phono inputs (except KSub) allow additional connectivity to portable MP3 players, CD players and line-level mixers. Up to three audio sources can be mixed internally and summed to a balanced output for ”daisy- chaining” of multiple units. Separate direct outputs are also provided on each channel for additional output flexibility. The on-board switches provide preset EQ settings. The HF setting (full-range models) can be set to VOCAL BOOST for additional presence in the critical mid-frequency area or FLAT for accurate reproduction of the incoming signal.
- Features
Features
- 10” Woofer and 1.75” diaphragm compression driver
- 90° Nominal coverage angle
- Maximum SPL 129 dB peak
- 1000-watt continuous Class D power modules in all models
- Onboard mixer with two combo XLR and 1/4” inputs, and stereo RCA inputs, (three audio input sources)
- Extensive DSP enhances system performance
- DMT (Directivity Matched Transition) provides for matched LF and HF coverage across the entire listening area
- Intrinsic Correction™, first featured in our high-end line-array products maps 65–75 spatially-averaged measurements to IIR and FIR filters
- DEEP and excursion limiting allow for extended low-frequency response by actively managing low-frequency transients
- GuardRail protection protects both the amplifier module and your performance from unnatural and destructive clipping
- Attractive and professional appearance
- Rugged ABS enclosures
- Functions as a monitor wedge
- 16-gauge powder coated steel grille
- Comfortable ergonomic handles
- 35 mm pole sockets with Tilt-Direct
- M10 rigging points
- Eyebolt and yoke mount accessories available
- Specification
Configuration Multipurpose 2-way Transducers Low-Frequency 10" cone transducer High-Frequency 1.75" diaphragm compression driver Frequency Response (-6 dB) 60 Hz - 18 kHz Frequency Range (-10 dB) 56 Hz - 20 kHz Nominal Coverage (-6 dB) 90° conical Maximum SPL (1 meter) 129 dB peak Amplifiers Power Output 1000W continuous Class D (500W LF, 500W HF), 2000W peak Input Impedance (ohms) XLR / 1/4": 40k balanced / 20k unbalanced XLR / 1/4" MIC mode: 2260 balanced RCA: 10k Controls Power, Gain A, Gain B, Mic/Line, LF Mode (Ext Sub/Norm/DEEP™) HF Mode (Flat/Vocal Boost), Front LED Indicators Power, Signal A, Signal B, Standby, Limit, Mic Cooling On demand, 50 mm variable speed fan Amplifier Protection Thermal limiting, output overcurrent, over temperature muting, GuardRail™ Transducer Protection Thermal limiting, excursion limiting AC Power Input Universal power supply 100 – 240 VAC, 50 – 60 Hz AC Power Consumption (1/8 Power) 100 VAC, 2.3 A 120 VAC, 2.01 A 230 VAC, 1.13 A Enclosure Material Impact resistant ABS Finish Black paint Grille Black powder coated 18 gauge steel Dimensions (H x W x D) 20.4" (519 mm) x 12.6" (320 mm) x 11.8" (300 mm) Net Weight 32 lbs (14.5 kg) - Documents
Documents
