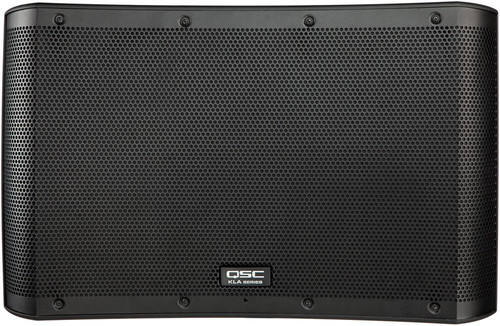

QSC KLA12 12" 2-Way Active Line Array Speaker
Housed in a rugged ABS enclosure that results in both light weight and long-term durability, the KLA12 features a 12-inch low-frequency transducer coupled with a 1.75-inch compression driver housed on a multiple difraction aperture waveguide. This waveguide design is based upon similar principles found on our patented WideLine™ Series waveguides and the waveguides found on our K Series products. Designed to be used exclusively as a fixed arcuate line array, each KLA12 is configured for a 90° x 18° coverage angle, allowing 90° vertical arrays to be configured using only five boxes (most other solutions require six). KLA's unique self-contained SOLO™ (Single-Operator Logistics) Rigging System enables users to quickly assemble (and disassemble) the line array in a fraction of the time without the need for special tools or external hardware.
KLA12's Ar-Q™ (Arcuate Equalization) processing enables users to quickly tune and configure the array, making appropriate frequency adjustments based on the number of boxes. With the click of a dial, the user can select the total number of boxes deployed in the array resulting in an evenly balanced and accurate tonal curve. QSC's proprietary Intrinsic Correction™ actively adjusts time, frequency and amplitude response to achieve a maximally flat bandpass target.- Features
Features
- 500W x 500W power module
- Rugged, ABS enclosure delivers light-weight durability
- SOLO Rigging System supports deployment without tools or external hardware
- Ar-Q Frequency Optimization quickly tunes the array with the click of a dial, adjusting for the appropriate number of boxes
- 12:1 design factor supports arrays of up to five units
- 90° x 18° nominal coverage (requires only five boxes to configure a 90° x 90° array)
- High power, 12" low frequency driver provides extension down to 44Hz without subwoofers
- Extensive DSP further enhances and protects performance
- 1.75" diaphragm compression driver delivers clear and powerful high-frequency reproduction
- PowerCon Input and Thru connections
- Tilt-Direct pole mount assists directivity in single-unit applications
- Specification
Configuration 2-way Line Array Element Transducers Low-Frequency: 12" cone transducer
High-Frequency: 1.75" diaphragm compression driverFrequency Response (-6 dB) 49 Hz - 18 kHz Frequency Range (-10 dB) 44 Hz - 20 kHz Nominal Coverage (-6 dB) 90° H x 18° V Maximum SPL (1 meter) 131 dB Amplifier Power Output 500W x 500W power module Input Impedance (ohms) XLR: 40k balanced / 20k unbalanced Indicators Power, Signal, Standby, Limit Cooling On demand, 50 mm variable speed fan Amplifier Protection Thermal limiting, output overcurrent, overtemperature muting, GuardRail™ Transducer Protection Thermal limiting, excursion limiting AC Power Input Universal power supply 100 - 240 VAC, 50 - 60 Hz AC Power Consumption 1/8 Power 100 VAC, 2.3 A,120 VAC, 2.01 A,230 VAC, 1.13 A Finish Black Grille Black powder coated 18 gauge steel Dimensions (H x W x D) 15" (381 mm) x 23.4" (594 mm) x 16.6" (422 mm) Net Weight 55 lbs (25 kg) - Documents
