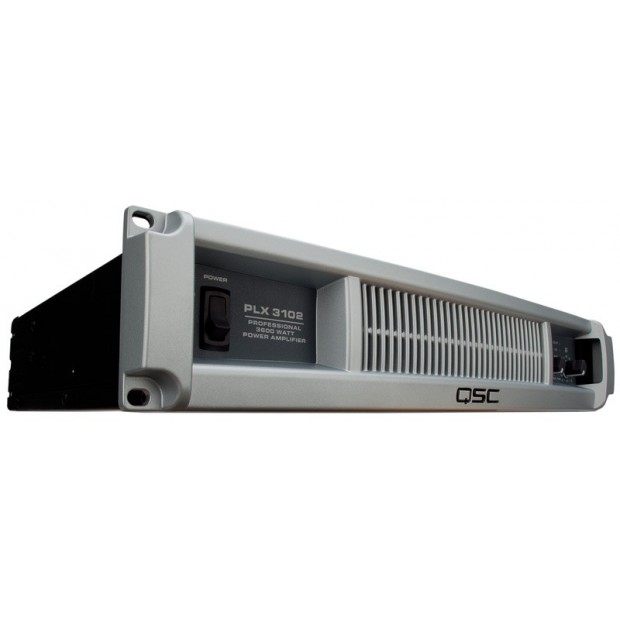

This PLX2 series amplifier have the refined, rugged good looks usually associated with high performance racing cars, competition bikes, professional power tools and high power machinery. A solid, cast-aluminum front panel adds professional style to any rack while also acting as an integral I-beam, rigidly tying the chassis together for years of on-the-road reliability. Built on the third generation of QSC PowerLight technology, this PLX2 amplifier combine light weight, superlative audio quality and proven QSC reliability. PLX2 audio power circuitry achieves performance normally associated with studio reference amplifiers. In order to reduce crossover distortion, precision bias tracking makes minute adjustments as amplifier temperature changes.
| 8 Ohms | |
|---|---|
| 1 kHz, 0.1% THD | 600W |
| 4 Ohms | |
| 1 kHz, 0.1% THD | 1000W |
| 2 Ohms | |
| 1 kHz, 1% THD | 1550W |
| 8 Ohms | |
| 1 kHz, 0.1% THD | 2100W |
| 4 Ohms | |
| 1 kHz, 1% THD | 3100W |
| Signal to Noise (20 Hz - 20 kHz) | -107 dB |
| Input Sensitivity at 8Ω | 1.23 Vrms |
| Voltage Gain at 8Ω | 35 dB |
| Output Circuitry | 2-Step Class H |
| Distortion (SMPTE-IM) | < 0.02% |
| 1/8 rated power, 20 Hz - 20 kHz | < 0.02% |
| Full rated power, 20 Hz - 20 kHz | < 0.02% |
| Damping Factor | > 500 |
| Input Impedance | 10k ohms unbalanced / 20k ohms balanced |
| Input Clipping | 11 Vrms (+21 dBu) |
| Cooling | Variable-speed fan, rear-to-front air flow |
| Input Connectors, Each Channel | 3-pin XLR and 1/4" TRS balanced, parallel |
| Output Connectors, Each channel | Neutrik® NL4 Speakon® and touch-proof binding posts /Both channels available on Ch 1 NL4 connector |
| Amplifier Protection | Full short circuit, open circuit, thermal, infrasonic, ultrasonic, and RF protection |
| Load Protection | On/off muting, DC-fault power supply shutdown |
| Shipping Weight | 26 lbs (11.8 kg) |
| Net Weight | 21 lbs (9.5 kg) |
| Dimensions | 3.5" H x 19" W x 14.9" D (89 mm x 483 mm x 379 mm) |
