- Description
Details

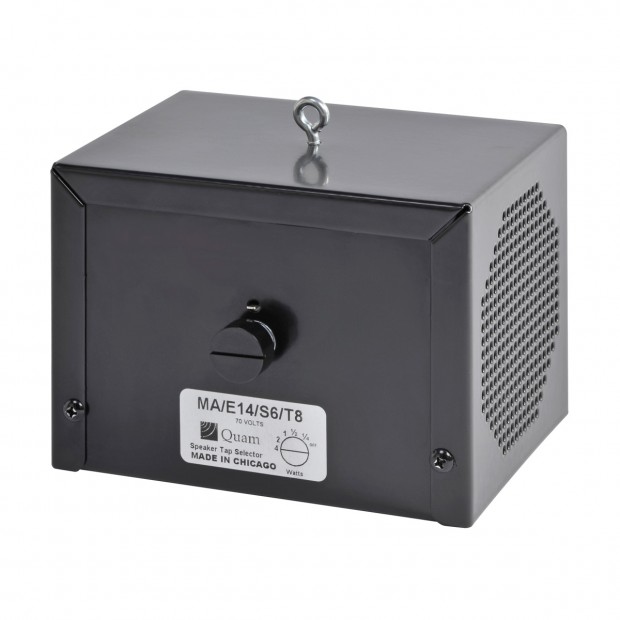

The MA/E14/S6/T8 is a compact, bi-directional sound masking loudspeaker assembly consisting of dual 4" O.D. loudspeakers with 5-oz. magnets, and a 4W-70V rotary select transformer designed for quick and easy installation under raised access floors and above suspended ceilings.
- Features
Features
- Single hanging point.
- Rust-resistant CRS Baffle Finish.
- Rotary select transformer.
- Specification
System Components Cone Size Dual 4" O.D. Speakers Transformer 4W-70V Rotary Select Transformer Intended Use Installation Under raised access floors, and above suspended ceilings Program Material Primary Use Equalized random noise Secondary Use Signal tones or voice Audio Average Sensitivity 95 dB SPL, 1W/ 1M Loudspeaker Power Rating 10W RMS, EIA 426A Standard Calculated Output 101dB SPL, 5W/ 1M Magnet Type & Weight BeFe Ceramic, 5 oz. Nominal Frequency Response 130Hz - 9 kHz EIA 426A Standard Nominal Coverage Angle 100° Included Angle, -6 dB / 2 kHz, Half space Audio Connection 7" Leads Mechanical Connection Single point suspension Unit Weight 6 lbs (2.72 kg) - Documents
