Quam Solution 3 Installer Package Speaker System
Quam Solution 3 Installer Package Speaker System
Quam Solution 3 Installer Package Speaker System
Quam Solution 3 Installer Package Speaker System
Quam Solution 3 Installer Package Speaker System
By Quam Speakers

Quam Solution 3 Installer Package Speaker System

Write a Review
Part #:
Solution 3
Model #:
Solution 3
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The Quam Solution 3 is a complete speaker/transformer/designer baffle solution for ceiling installations. The 8C10FEPAX has 8 Ω O.D. foam edge surround and features a dual cone loudspeaker.

Description

The Solution 3 is a complete speaker transformer designer baffle solution for ceiling installations. Each package includes two C10FX/BU/2WS. The 8C10FEPAX has 8 Ω O.D. foam edge surround and features a dual cone loudspeaker. It comes with a 10 oz magnet and a TBLU, 5 W-25/70 V transformer mounted on a BR8-2WS designer baffle. Also included are two SSB-6 rust-resistant steel, load bearing supports and two ERD8U 275 CID, round, steel back boxes.

Features
  • Paging, signal tones, and background music
  • Nominal Coverage Angle 90° Included Angle, -6 dB / 2 kHz, Half space
  • Downward-firing position in a 24” wide drop-tile ceiling

Specifications
Average Sensitivity 95 dB SPL, 1 W/ 1 M
Loudspeaker Power Rating 20 W RMS, EIA 426A Standard
Calculated Output 105 dB SPL, 5 W/ 1 M
Magnet Type & Weight BeFe Ceramic, 10 oz Nominal
Frequency Response 60 Hz - 17 kHz EIA 426A Standard
Nominal Coverage Angle 90° Included Angle, -6 dB / 2 kHz, Half space
Audio Connection 7” Color Coded Leads
Audio Connection 0.205" Spade Lug
Baffle (Diameter x D) 10.5" (266.7 mm) x 1.25" (31.8 mm)
Loudspeaker (Diameter x D) 8" (20.32 mm) x 2.63" (6.6802 mm)
Back Box (Diameter x D) 4.25" (108 mm) x 12.31" (312.7 mm)
Mounting Device (H x W x D) 14.44" (366.8 mm) x 23.75" (603.3 mm) x 0.56" (14.2 mm)

System Includes

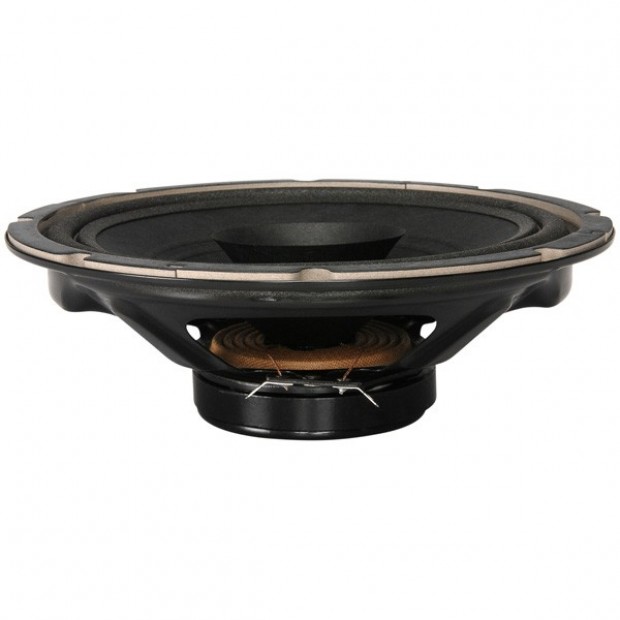

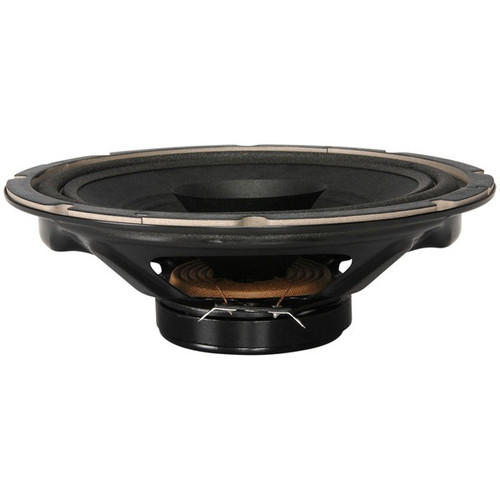

  • (2) 8C10FEPAX Loudspeaker

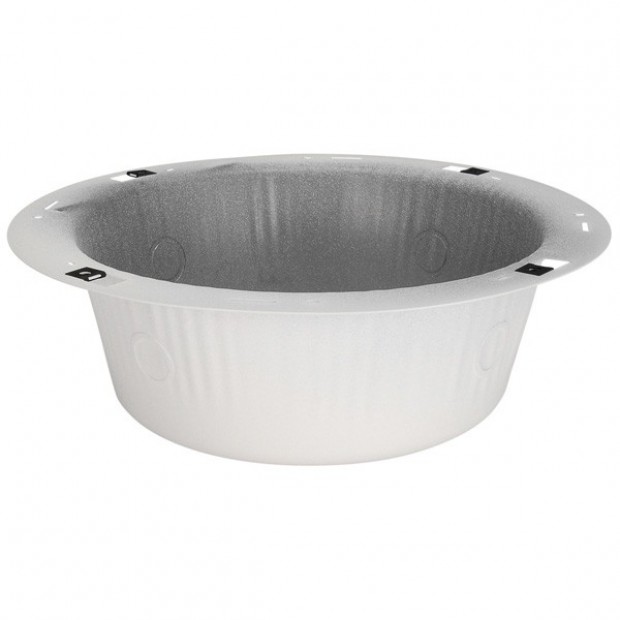

  • (2) ERD8U Back Box
  • (2) BR8-2WS Baffle
  • (2) SSB-6 Mounting Device
  • (2) 5 W-25/70 V Transformer
  • (2) Qmount Hard Ceiling Brackets

Related Products

Sold Out
Quam SYSTEM-3/VC Surface Mounted Speaker System (Discontinued)

Quam SYSTEM-3/VC Surface Mounted Speaker System (Discontinued)

The SYSTEM 3/VC is a complete loudspeaker assembly in a 22 gauge slanted steel enclosure with 8" frame loudspeaker, 25/70.7V universal transformer and volume control. It has a white baked epoxy...
MSRP: $86.99
$86.64

Usually arrives in 5-9 business days.

MSRP: $86.99
$86.64
Quam SYSTEM-1 Surface Mounted Speaker System

Quam SYSTEM-1 Surface Mounted Speaker System

The Quam SYSTEM 1 is a complete loudspeaker assembly with 8" frame loudspeaker, 25 and 70.7V universal transformer, 16 gauge square steel enclosure and 22 gauge baffle. The assembly finish is a...
$125.48

Usually arrives in 5-9 business days.

$125.48
Add to Cart The item has been added
Quam System 19 Lay-In Ceiling Tile Speaker

Quam System 19 Lay-In Ceiling Tile Speaker

The System 19 is a complete, UL Listed, 2-way, shallow depth, lightweight, 2' x 2' ceiling tile replacement loudspeaker system consisting of an 6.50" O.D. LF woofer, 1" tweeter, and a 20 W-70 V...
$289.79

Usually arrives in 5-9 business days.

$289.79
Add to Cart The item has been added
Sold Out

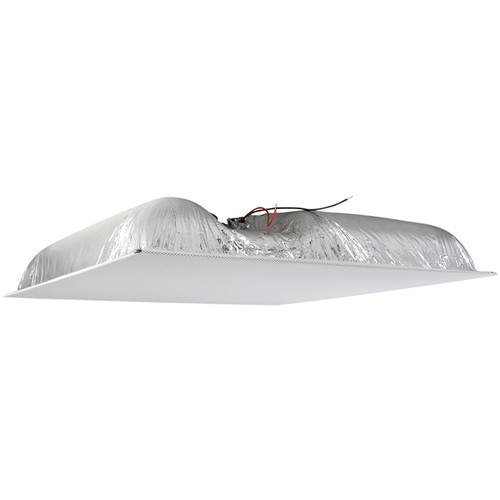

Quam SYSTEM 17/70RS/MP 2' x 2' Ceiling Tile Speaker (Discontinued)
