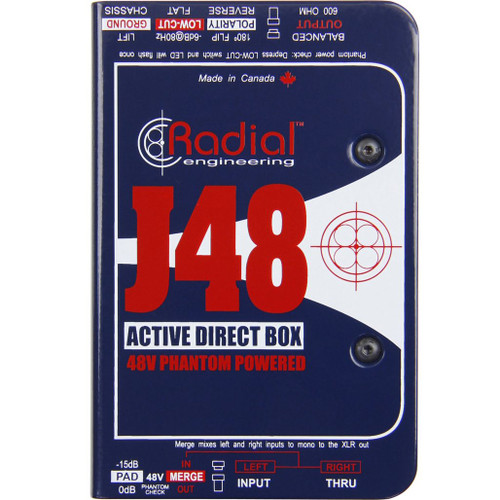

Radial Engineering J48 Phantom Powered Active Direct Box
Radial Engineering J48 Phantom Powered Active Direct Box
Radial Engineering J48 Phantom Powered Active Direct Box
Radial Engineering J48 Phantom Powered Active Direct Box

By Radial Engineering

Radial Engineering J48 Phantom Powered Active Direct Box

Write a Review
Part #:
R800 3001
Model #:
J48
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The Radial Engineering J48 is a high performance active direct box for live concert touring and professional recording studio applications, with the ability to handle extreme transients without distortion while delivering the natural sound of your instrument.

Description

Radial Engineering J48 Phantom Powered Active Direct Box

The Radial Engineering J48 is a high performance active direct box for live concert touring and professional recording studio applications, with the ability to handle extreme transients without distortion while delivering the natural sound of your instrument.

Most battery-powered guitars and basses will produce as much as 7 Volts when played at maximum volume, which can easily overload typical active direct boxes that are only able to handle about 3 Volts. The J48 uses a unique switching power supply that raises the internal rail voltage so it can handle up to an incredible 9 Volts, resulting in improved signal handling and greater headroom. This additional headroom significantly reduces distortion of all types, allowing the natural tone and character of the instrument to shine through.

Applications:

    • Live Touring
    • Studio
    • Reamping

Features
  • Exceptional headroom and dynamic range
  • Retains the natural sound of the instrument
  • Merge switch sums stereo instruments to mono
  • Powered by 48V phantom, no batteries required
  • 15dB pad reduces the input sensitivity for active basses and high output keyboards
  • 48V check flashes once when the 80Hz filter is depressed to confirm 48V phantom power is present
  • Merge changes the input and thru-put to two LR inputs and mixes the output to mono at the XLR
  • Input instrument input connection to the J48
  • Thru throughput from the J48 to the amp. Hi impedance will not load instrument down

Specifications
Frequency Response 20Hz ~ 20kHz
Dynamic Range 109dB
Total Harmonic Distortion 0.002% @ -5dBu
Intermodulation Distortion 0.003% @ -3dBu
Phase Deviation +10º at 20Hz | 0º at 1kHz | -1º at 20kHz
Input Impedance 220kΩ - 1/4" input
Output Impedance 200Ω - XLR output
Equivalent Input Noise -103dBu
Noise -99dB below 0dBu
Maximum Input +10dBu
Dimensions (H x W x D) 2" (48 mm) x 5" (127 mm) x 3.3" (84 mm)
Weight 1.55 lbs (0.7 kg)
