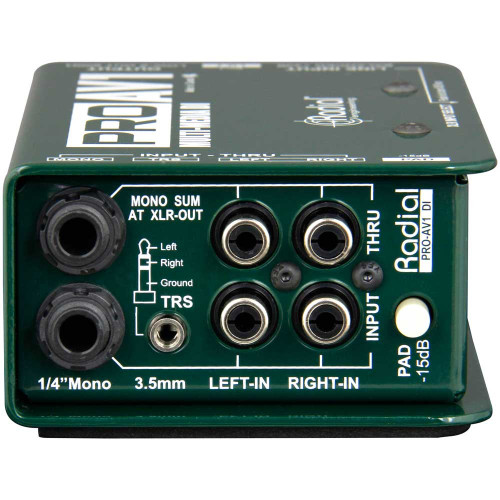

Radial ProAV1 Passive Multimedia Direct Box
The ProAV1 is a passive direct box specifically designed for audio-video integrators and technicians, featuring a variety of stereo inputs that are summed to mono via a resistive mixer, greatly simplifying signal management.
The ProAV1 provides you with the ability to connect almost any audio source to a PA system, while automatically summing stereo sources to mono to preserve channels and simplify the audio setup. Inputs are available via 1/4", RCA, 3.5mm stereo, and line-level XLR connections, giving you the ability to easily connect to smartphones, tablets, laptops, CD players, or even a +4dB line level output from a console or recording interface. Transformer isolation helps eliminate noise while maintaining a linear frequency response, and a mono balanced XLR output allows you to feed a recording interface or a PA system.
⚠️WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
| Frequency Response | 20Hz to 18kHz +/- .5dB |
|---|---|
| Total Harmonic Distortion | 0.01% from 20Hz ~ 20kHz @ -10dB |
| Input Connectors | 1/4", RCA, 3.5 mm TRS, XLR |
| Output Connectors | XLR |
| Extras | 1/4" thru, RCA thru |
| Power | Passive, no power required |
| Dimensions (H x W x D) | 1.875" (47.63 mm) x 5" (127 mm) x 3.25" (82.55 mm) |
| Weight | 1.6 lbs (0.7 kg) |
