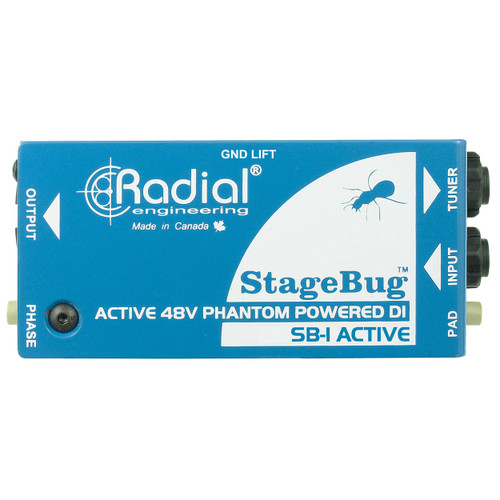

The Radial StageBug SB-1 is a high-performance active direct box made for players that are on the move. Made to fit inside a guitar case, the SB-1 is the smallest Radial DI box ever! But don’t let the small size deter… this ultra-compact StageBug sounds absolutely terrific!
The design begins with standard ¼ instrument input with a thru-put to feed your tuner or your on-stage amp. The ultra-quiet active circuit at once converts the signal from high to low impedance to reduce susceptibility to noise. The signal is then buffered and balanced for long cable runs to the PA system. 48-volt phantom provides the power, so the SB-1 does not require batteries or external supply to make it work. You simply plug in and you are ready to go!
⚠️WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
| Audio Circuit Type | Active Buffer with Phase Splitter |
|---|---|
| Frequency Response | 20Hz to 20KHz |
| Total Harmonic Distortion | |
| Dynamic Range | >100db |
| Input impedance | 800K/23K |
| Maximum Input | +2dbu/+8dbu |
| Gain | +1.3dbu/+4.4db |
| Clip Level - Output | +3.3dbu/+12.3dbu |
| Output Impedance | 330 Ohms |
| Equivalent Input Noise | -101dbu |
| Noise Floor | -97dbu |
| Intermodulation Distortion | |
| Phase Deviation | 25/12 degrees Maximum |
| Switches | Pad, Phase |
| Merge Function | Automatic |
| Input Pad | -12db |
| Polarity | Yes |
| XLR Configuration | + = Pin 2, - = Pin 3, Ground = Pin 1 |
| Construction | 16 gauge steel chassis & outer shell |
| Finish | Baked enamel |
| Power | 48V phantom power |
| Dimensions (L x W x D) | 4.5" (114 mm) x 1.85" (47 mm) x 1.35" (34 mm) |
| Shipping Dimensions (L x W x D) | 8.25" (210 mm) x 5" (127 mm) x 1.75" (44 mm) |
| Weight | 0.55 lbs (249.48 g) |
| Shipping Weight | 0.8 lbs (362.87 g) |
