Rane Commercial Terminal 1010x Audio Distribution DSP Multiprocessor (Discontinued)

Description

Rane Terminal 1010x Audio DSP Multiprocessor

The Terminal 1010x takes the DSP Experience to the next level with an intuitive front-panel that enables users to control 10 analog balanced inputs for Mic/Line/+48V and 10 balanced outputs. There are also 6 flexible RAD Plus PoE ports to connect breakout boxes and wall plate remote controls and 4 Universal GPIO logic ports for external devices such as alarm systems, sensors, lights, projectors, etc. There is also a slot for an optional DANTE™ 32x32 card for network connectivity.

Features

• Native Analog 10-in/10-out

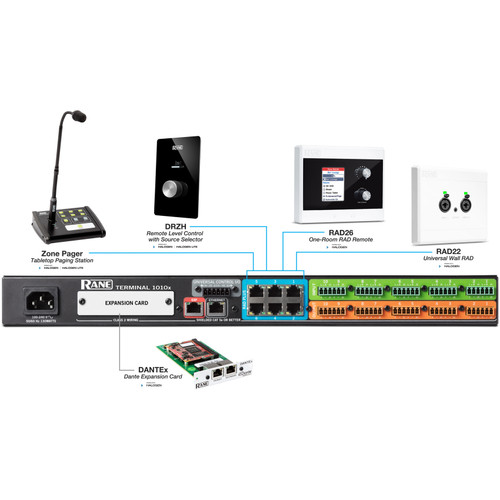

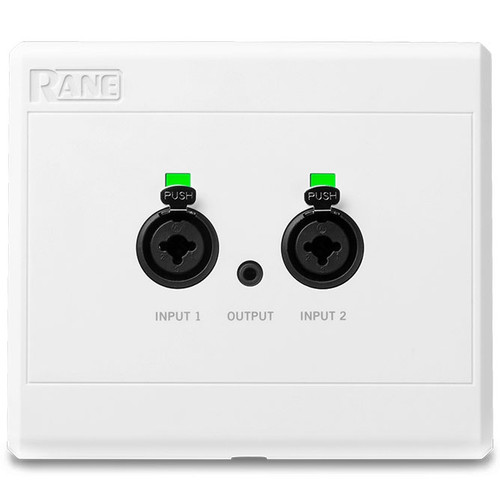

• 6 RAD+ Ports support RADs and DRs - adds 12-in/12-out, for a total 22-in/22-out
• Optional DANTE™ card adds 32-in/32-out on the network
• Expansion Port for future hardware releases
• Online Wizard for quick-start using Halogen software

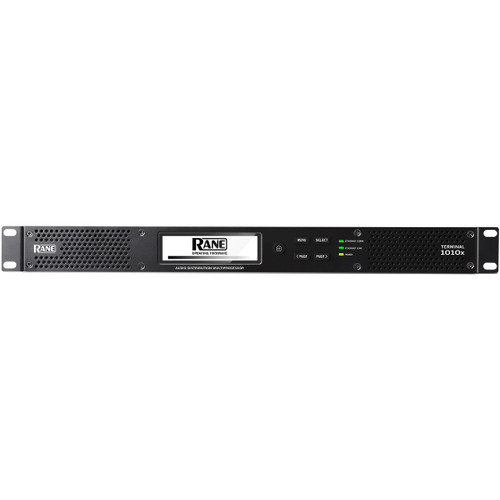

• Enhanced front panel control and monitoring

Specifications

Dimensions (H x W x D)	1.73" (44 mm) x 19" (483 mm) x 8.25" (210 mm)
Weight	7 lbs (3.2 kg)

DOCUMENTS

In The Box

• (1) Terminal 1010x
• (5) 6-Pin 3.8 mm Euroblock Input (Green, for Audio Inputs)
• (5) 6-Pin 3.8 mm Euroblock Outputs (Orange, for Zone Outputs)
• (1) 6-Pin 3.8 mm Euroblock Input (Black, for Logic Input)
• (1) IEC Power Cable
• Quickstart Guide
• Safety & Warranty Manual
