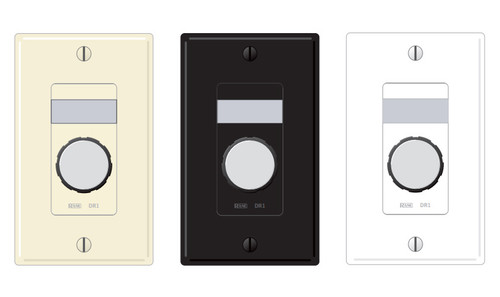

The Rane DR1 is a Level Control remote with several features that make it stand out against other wired remotes.

Description

The Rane DR1 is a Level Control remote with several features that make it stand out against other wired remotes. Its LCD displays the name of the Zone or Group that it is connected to, fully customizable within the Halogen Software to anything you would like. Level values are also displayed and updated dynamically when changed from other sources; such as a linked group with multiple Remotes being connected. Display screens also update automatically when available options have changed through preset activation, room combining, and so on. Therefore, users will always see currently available options. In addition the display is back lit for readability and turns on when the control is used, automatically dimming after a short time period when not.

The DR1 fits into a standard U.S. electrical box and comes with a matching Decora plate cover.


To mount Rane DR1s in a rack, we recommend Lowell rack panels. Note: Lowell's 8-wide panel accepts only single gang devices and does not accept two-gang devices such as Rane RADs or DR2 or DR3. Use Lowell's 9-wide model which accepts multi-gang Decora products.

Features
  • Remotely Controls Zone Volume
  • LCD Displays Connected Zone and Level
  • Wall-Mounted Switchplate
  • Available in 3 Colors

Specifications
CAT 5e Cable Length Max 300 m / 1000 ft
Power Requirement +24VDC / 50mA
Baud Rate 115200
Unit: Conformity CE, FCC
Dimensions (H x W x D) 4.1" (104 mm) x 1.6" (40.6 mm) x 2.2" (55.9 mm)
Net Weight 0.25 lbs (0.11 kg)
Shipping Weight 0.58 lbs (0.26 kg)

DOCUMENTS

Related Products

Sold Out

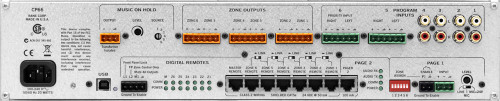

Rane CP66 Commercial Processor (Discontinued) Rane CP66 Commercial Processor (Discontinued)
