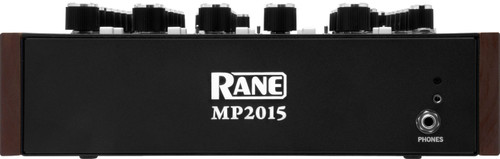

Rane DJ MP2015 4-Channel Rotary Mixer with RIAA Phono Preamps
S/PDIF Inputs, AKM Converters, Filters, 3-Band EQs, Microphone Ducking, Output Isolator EQ, and Dual USB ConnectionsControl, sound, reliability, and durability distinguish Rane's MP2015 techno house club mixer for high-end audio systems.
Born from a legacy of rotary club mixers beginning in 1971 with Rudy Bozak’s CMA-10-2DL, on to 1982 and UREI’s 1620, then in 1999 Rane’s MP2016/XP2016 combo, and now in 2015, the MP2015 represents the next revival and evolution. This mixer has an analog soul with a digital heart.
With over 40 years of rotary mixer experience to draw on, along with collaboration and input from the world’s best techno house DJs, the MP2015 is the best mixer produced by Rane—ever. There are no compromises in the design. It has the best sound, the best features, the best feel, and the best reliability and durability.Superior Build
Robust 4-channel Rotary Mixer with solid chassis and classic wooden design, pro XLR and TRS Outputs and AKM premium performance Audio 4 Pro delta-sigma modulator converters.
Advanced Sonic Control
Craft and mold your mix with powerful 3band Isolator EQ's with fully adjustable crossover points. Command frequency control with the variable resonance parameter sweepable filter control.
No Compromise
MP2015 is the best mixer produced by RANE - ever. There are no compromises in the design. The best sound, the best features, the best feel, and the ultimate in reliability and durability. Serato DJ Pro, Traktor and Virtual DJ compatible.
Sweep Filters
Each of the four input channels and the Submix channel features a unique three-position toggle selector switch. Choose between LP, HP or L-H combo. All have steep 24dB/octave (4th-order) slopes and are sweepable.
Submix
This unique input channel provides grouping for any number of inputs for easy multi-source mixing. Additionally, this becomes another input to make a 5 channel mixer.
3-Band Full-Cut Tone Controls
All input channels and the Submix channel have exceptional three-band tone controls. These are 12 dB/octave (2ndorder) Linkwitz- Riley, full-cut filters (kill) with selectable crossover points of 150Hz/6.0 kHz or 300Hz/3.0kHz.
- Features
Features
- Isolator EQ - powerful 3-band isolator EQ with fully adjustable crossover points
- Source input selector
- 3-band filters - extensive 3-band tone channel filters
- Filter section - sweepable low pass, low/high pass and high pass filter controls with variable resonance parameters
- Submix channel - unique submix channel-group multiple inputs for easy multi-source mixing
- Output controls - master and booth output control
- FX loop- FX loop send/return controls
- Session controls - session in/out controls for additional input/output
- Mic controls - mic input controls for quality voice control
- Headphone controls - split cue, volume and pan control for headphones
- Headphones - 3.5 mm and 1/4" headphone inputs
- Laptop inputs - Dual USB control for seamless changeover/back-to-back sets
- Phono - turntable ground terminals
- Power - IEC power input and on/off switch
- Aux input
- Session inputs/outputs
- 4 phono/cd inputs
- External FX loop - external FX send/return
- Outputs - main/booth outputs
- Microphone input - dual TRS/XLR mic input
- Input selector - switchable selector for phono/CD/digital inputs
- S/PDIF digital inputs
- Specification
Analog Inputs Four Analog Deck Inputs Analog Stereo RCA Jacks Phono (RIAA) or CD (line-level) Phono Response RIAA +0.1/-0.2 dB, Gain: 31 dB at 1 kHz Max Phono Input 126 mV Max Line Input 4 Vrms, all unbalanced inputs ADCs 24-bit @ 44.1, 48, or 96 kHz DACs 24-bit @ 44.1, 48, or 96 kHz Digital Signal Processing 32-bit floating point USB 2.0 Audio (2 Independent Ports) Seven stereo record, Five stereo playback PCM 24-bit @ 44.1, 48, or 96 kHz FlexFX Send / Return Stereo unbalanced RCA jacks Mic Input Balanced 1/4" TRS & XLR combo jack +48V Phantom Power Switch Turn on for a condenser mic Mic / Line-Level Switch Choose Line to connect a wireless receiver Line Outputs Main, Booth, Session, FlexFX Loop Send Frequency Response 20 Hz to 20 kHz ±0.25 dB Unbalanced Jacks (RCA & FlexFX) Max 4 Vrms Balanced Jacks (Main and Booth) Max 8 Vrms Internal Universal Power Supply 100 to 240 VAC, Max 20 W, 50 Hz to 60 Hz Conformity CE, FCC, CCSAUS Dimensions (H x W x D) 4.3" (109 mm) x 13.1" (333 mm) x 14" (356 mm) Weight 12.7 lbs (5.8 kg) Shipping Weight 15 lbs (7 kg) - Documents
