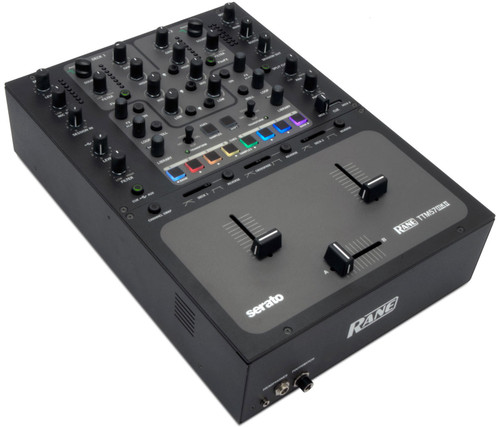

Rane DJ TTM57mkll Mixer for Serato DJ (Discontinued)

Description

Details

The TTM57mkII stays true to its original design by supporting familiar workflow while improving performance and software integration. Updated software controls include silicone RGB backlit pads for triggering four cue points per deck or the SP-6 sampler. Classic joystick controls toggle slip, instant doubles, internal mode, censor, and transform. Dedicated auto-loop & loop roll controls with back-lit buttons. Intuitive Serato DJ iZotope FX controls for easy & quick access.

Features

Features

Durable Lexan faceplate (no paint to wear off)
Channel High, Mid, and Low Kill switches
Filter Resonance adjustment
MIDI-mappable footswitch jack to any parameter
SP-6 Sampler Input Filter control

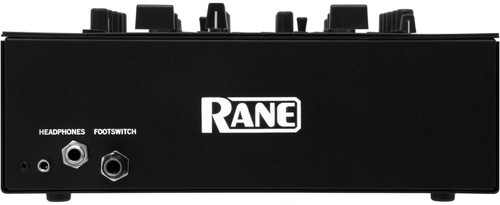

SP-6 Sampler Input Headphone Cue
Headphone Split Cue Mode (Cue in the left ear and Main Mix in the right ear)
Changeable EQ crossover points
Transform Joysticks with extra up/down/left/right functions
Easy access to Serato deck INT mode
Slip ON/OFF quick controls
Scroll access through all Serato DJ-FX
Adjustable Serato DJ-FX Wet/Dry controls
Session Output with a Volume Control
External effects processor loop with +4 & -10 level switch
Up-fader Channel Swap switch
Three-year warranty with great customer support

Specification

Analog Inputs	4 Stereo unbalanced RCA jacks: Phono or Line level input Max Line Input: 4 Vrms Phono Response: RIAA ±1 dB, Gain: 31 dB at 1 kHz Rumble filter: Butterworth 3rd-order Infrasonic Max Phono Input: 126 mV
ADCs	24-bit, 48 kHz; Dynamic range 102 dB A-weighted
DACs	24-bit, 48 kHz; Dynamic range 108 dB A-weighted
Digital Signal Processing	32-bit floating point
USB Audio	Five Stereo Record, Five Stereo Playback 44.1, 48, or 96 kHz, 24-bit PCM Class-compliant, no driver needed for Mac OSX (10.7 to 10.10) ASIO driver provided for Windows 7-SP1, Windows 8 and 8.1
FlexFX	Stereo unbalanced 1/4" TS (tip-sleeve) phone jack send and return
Mic Input	Balanced 1/4˝ TRS & XLR combination jack Single-knob High / Low Tone control Mic / Line level switch to connect a wireless receiver
Frequency Response	20 Hz to 20 kHz ±0.25 dB, Line in to Line out
Dynamic Range	101 dB A-weighted
THD+N	<0.01% re 0 dBFS, 20 to 20 kHz, 20 kHz BW
Line Outputs	Unbalanced jacks (RCA & FlexFX): Maximum 4 Vrms Balanced jacks (Main 1/4"): Maximum 8 Vrms
Internal Universal Power Supply	100 to 240 VAC, 50 Hz to 60 Hz, 15 W max
Dimensions (H x W x D)	4" (101.6 mm) x 10" (254 mm) x 14" (355.6 mm)
Shipping Dimensions (H x W x D)	7.75" (196.9 mm) x 15" (381 mm) x 19.25" (489 mm)
Net Weight	8 lbs (3.7 kg)
Shipping Weight	12 lbs (5.5 kg)
