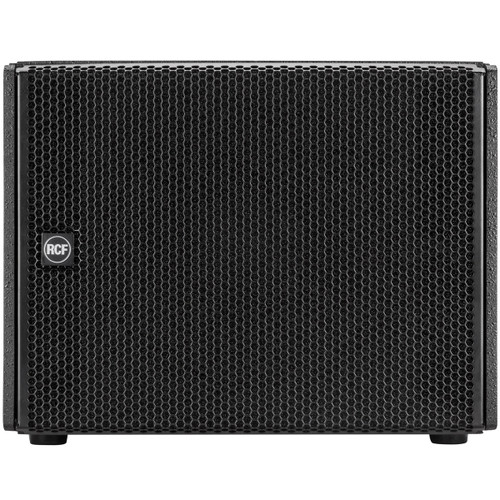

RCF HDL 12-AS 12" 1400W Active Line Array Subwoofer
The HDL 12-AS is the companion subwoofer for HDL 6-A. Housing a 12" woofer, the HDL 12-AS, is a very compact active sub enclosure and features a 1400W powerful digital amplifier. It is the ideal complement to create flown HDL 6-A clusters with outstanding performance. It features a built-in digital stereo crossover (DSP) with adjustable crossover frequency to connect the HDL 6-A line array module or a satellite. The integrated mechanics are both fast and reliable. The heavy-duty front grille is power coated. A special transparent-to-sound foam backing inside helps the further protection of the transducers from dust.
| Acoustical Specifications | Frequency Response: 40 Hz ÷ 120 Hz |
|---|---|

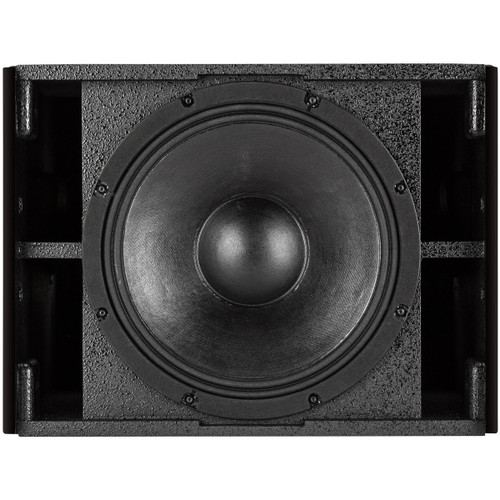

| Transducers | Woofer: 12'', 3.0'' v.c |
| Input/Output Section | Input signal: bal/unbal Input connectors: XLR Output connectors: XLR Input sensitivity: -2 dBu/+4 dBu |
| Processor Section | Hi-Pass Frequencies: 40Hz Low-Pass Frequencies: 80Hz, 110Hz Protections: Thermal, RMS Limiter: Soft Limiter Controls: Volume, EQ, Phase, Xover |
| Power Section | Total Power: 1400W Peak, 700W RMS Low frequencies: 1400W Peak, 700W RMS Cooling: Convection Connections: Powercon IN/OUT |
| Standard Compliance | CE marking: Yes |
| Physical Specifications | Cabinet/Case Material: Baltic birch plywood Hardware: Array fittings, pole Handles: 2 side Grille: Steel Color: Black |
| Dimensions (H x W x D) | 14.92" (379 mm) x 18.5" (470 mm) x 20" (508 mm) |
| Weight | 55.12 lbs (25 kg) |
| Shipping Dimensions (H x W x D) | 17.13" (435 mm) x 22.05" (560 mm) x 20.47" (520 mm) |
| Shipping Weight | 61.73 lbs (28 kg) |
