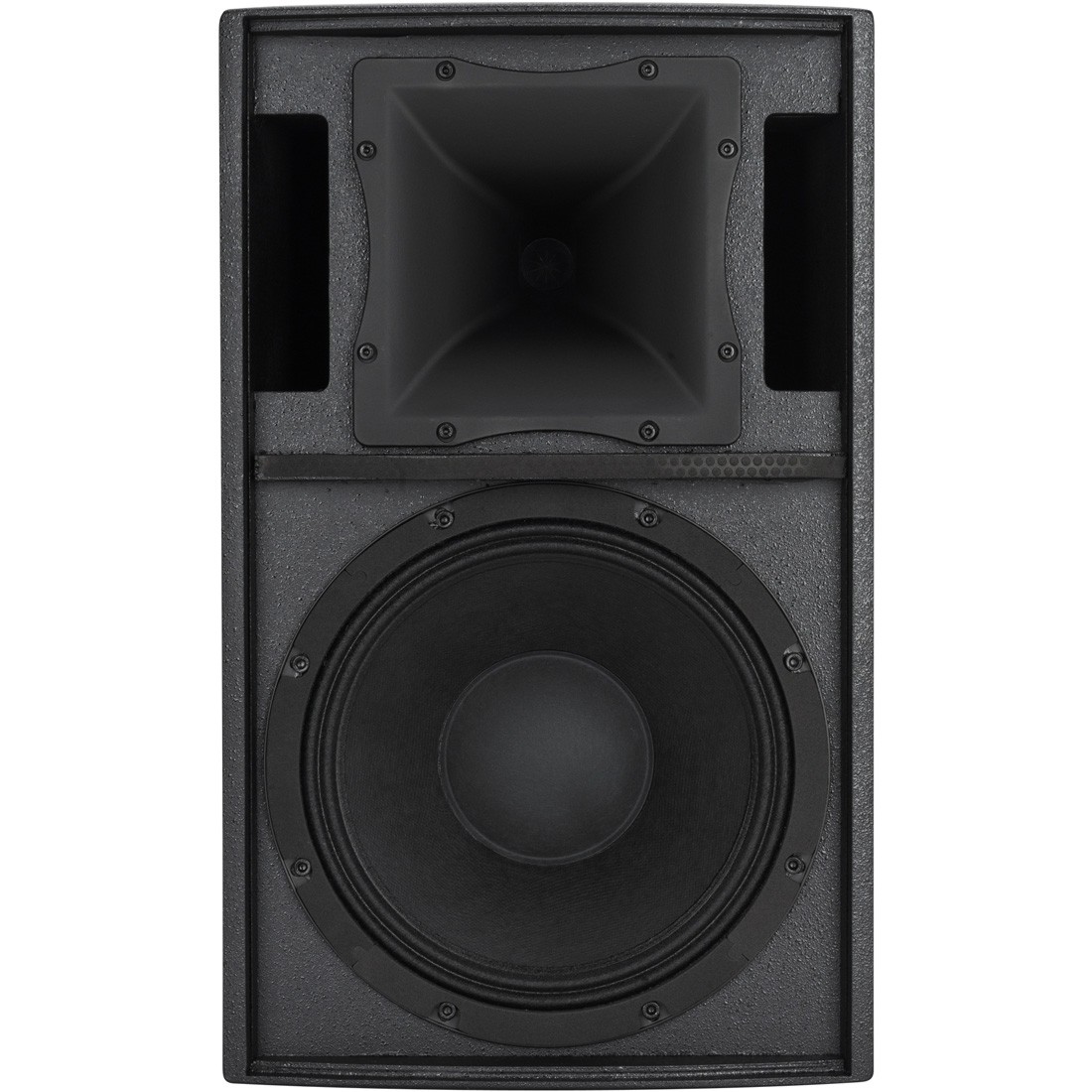

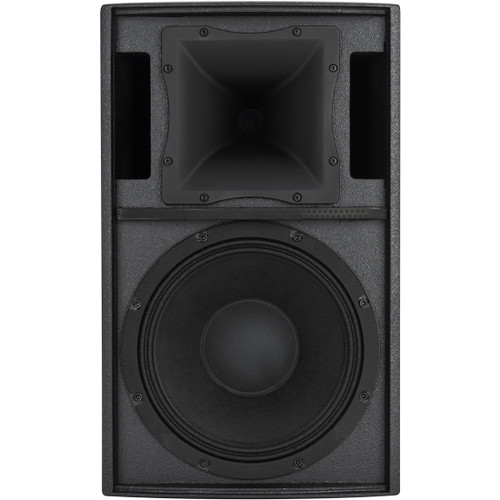

RCF M1001 10" 300W 2-Way Passive Loudspeaker (Discontinued)

The RCF M 1001 is a multipurpose 2-way 10" 300-watt full range speaker system, suitable in a wide range of installations. The compactness, together with the elegant and neutral design with accurate finishing make M 1001 suitable for almost any environment and architectural constraint. Available mounting accessories allow you to use the M1001 wall or ceiling mounted, with reference to the several possible applications.

The M 1001 has a controlled dispersion and delivers undistorted SPL value above any expectation from such a compact speaker system. The M 1001 features high sensitivity thanks to the use of oversized magnets and a comfortable sound quality with smooth and wide frequency response performed thanks to the Kapton diaphragm compression driver loaded on a constant directivity horn. The LICC crossover design includes an electronic protection on high-frequency device.

• High quality 2-way passive loudspeaker
• 1 x 10" woofer, vented
• 1 x 1" driver, on 90° x 60° CD horn
• High power handling 'Low Impedance Compensated Crossover', with electronic protection for the
• driver
• 300W AES power handling
• Rotatable RCF front logo
• Installation points are available on the rear panel, top and bottom
• All models have a 4-pin Euroblock connector (audio input and parallel link output)

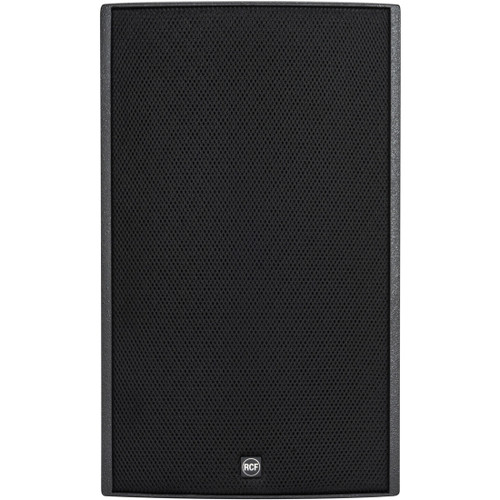

• Steel front grille with robust double mesh polyester clothing
