RDL D-CIJ3D Stereo Consumer Input Jacks

Name: RDL D-CIJ3D Stereo Consumer Input Jacks
Brand: RDL Radio Design Labs
SKU: RDL-D-CIJ3D
Price: 130.64 USD
Availability: InStock

Write a Review

Part #:

D-CIJ3D

Model #:

D-CIJ3D

Current Stock:

MSRP: $174.19

$130.64

Availability: Usually arrives in 5-9 business days.

Quantity:

Adding to cart… The item has been added

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Description

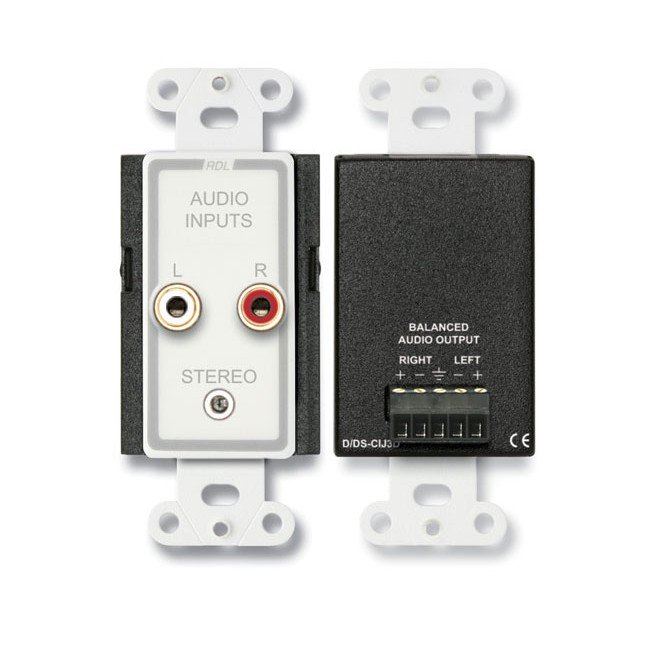

The RDL D-CIJ3D Stereo Consumer Input Jacks are the ideal choice in installations requiring stereo unbalanced line level audio sources to feed stereo balanced (or unbalanced) audio lines. The D-CIJ3D is a complete unbalanced line-level audio input module. The front panel features two gold plated phono jacks and a single stereo mini-jack, intended for mono or stereo consumer level sources. An input signal may be connected to either the phono jacks or to the mini-jack. The inputs are balanced through audio transformers configured to reject induced hum. A stereo line-level output is provided on the rear-panel detachable terminal block for connection to 10 kΩ or higher input impedance line-level module or equipment inputs.

Features

Stereo Inputs to Stereo Outputs
Stereo Inputs on RCA Jacks and Stereo Mini-Jack
Unbalanced to Balanced Conversion Without Gain
Transformer Isolation for Unbalanced Line Inputs
Hum Cancellation on Unbalanced Line Inputs
Line-Level Output to Feed 10 kΩ Equipment Inputs
Output Connections on Detachable Terminal Block

Specifications

Input connectors (3)	Phono jacks with gold contacts (Left and Right), Mini‑jack 3.5 mm (Stereo)
Frequency response (line level)	50 Hz to 20 kHz (±1 dB); 30 Hz to 20 kHz (±2 dB)
THD
Output connector	Detachable terminal block
Crosstalk
Ambient Operating Environment	0° C to 55° C
Mounting Box Minimum Dimensions (W x D)	1.80" (45.7 mm) x 1.75" (44.5 mm)
Dimensions (H x W x D)	4.13" (109.9 mm) x 1.7" (43.2 mm) x 2.15" (54.7 mm)
Weight	0.45 lbs (0.204 mm)
