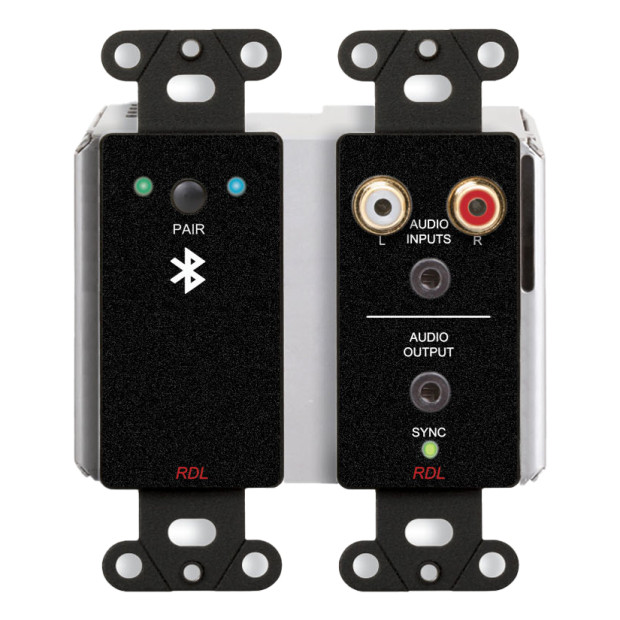

RDL DDB-BTN44 Wall-Mounted Bi-Directional Dante Audio Interface with Bluetooth and PoE - Black

RDL DDB-BTN44 Wall-Mounted Bi-Directional Dante Audio Interface

More Views

RDL DDB-BTN44 Wall-Mounted Bi-Directional Dante Audio Interface with Bluetooth and PoE - Black

Part # DDB-BTN44

Model # DDB-BTN44

The RDL DDB-BTN44 is a black wall-mounted bi-directional Dante audio interface with Bluetooth and PoE. It converts consumer audio inputs to Dante channels and Dante channels to line-level outputs with full duplex communication and easy front-panel control.

Availability:

List Price $1,354.35

Pro Acoustics Price Price $1,015.76

Your Savings $338.59 (25%)

Qty:

Share with
Add to Wishlist

Description

Details

RDL DDB-BTN44 Bluetooth Dante Audio Interface with Line-Level I/O in Black

The DDB-BTN44 wall-mounted bi-directional Dante audio interface with Bluetooth and PoE in sleek black provides professional-grade network audio conversion and integration for commercial AV systems. This module allows stereo audio from a Bluetooth-enabled device or consumer analog inputs (Mini-Jack or RCA) to feed Dante network channels, while Dante network audio can be routed back to connected Bluetooth devices for full duplex communication. Front-panel LEDs indicate signal activity for quick monitoring.

The rear-panel terminal block delivers balanced (+4 dBu) or unbalanced (-10 dBV) line-level outputs, enabling easy connection to amplifiers or other wall panels in the audio system. Mono or stereo input modes are switch-selectable behind the cover plate, giving installers flexible routing options. Powered via PoE, the DDB-BTN44 eliminates the need for additional power wiring while providing robust and reliable performance.

Installers can customize module names, passwords, and Bluetooth settings using RDL Console 2.0 software, making configuration simple and scalable for multiple units. Built with high-quality circuits and analog filters, the black DDB-BTN44 delivers studio-quality audio performance with minimal noise and distortion, making it a high-value solution for networked audio installations requiring seamless Bluetooth integration.

Features

Features

Wall-mounted bi-directional Dante audio interface in black finish
Bluetooth audio input and full duplex communication with Dante network
Consumer audio inputs via front-panel Mini-Jack or RCA jacks
Balanced (+4 dBu) or unbalanced (-10 dBV) line-level outputs on rear panel
Mono or stereo input mode selectable behind cover plate
Front-panel LEDs indicate input and network audio activity
Powered via PoE, no separate power supply required
Module settings are customizable via RDL Console 2.0 software
Studio-quality analog circuits and filters for pristine audio performance
Ideal for professional AV systems, classrooms, conference rooms, and commercial installations

Specification

Network Connector	RJ45 with Link and Speed indicators
Digital Audio Ethernet Protocol	Dante
Transmission Rate	100 Mbps
Sample Rates Supported	44.1 kHz, 48 kHz (default)
Bit Depth Supported	24 bits
Audio Operating Levels	20 dBFS = +4 dBu (balanced); -20 dBFS = -10 dBV (unbalanced), nominal
Bluetooth Frequency Response	20 Hz - 20 kHz (± 0.5 dB)
Network to Mini-Jack Output	Stereo mini-jack; 20 Hz - 20 kHz (± 0.75); THD+N <0.05%
Network to Line Output	Balanced/unbalanced; 20 Hz - 20 kHz (± 0.5 dB); THD+N <0.05%
Line Inputs	4 stereo inputs: Mini-Jack & RCA; Frequency Response 20 Hz - 20 kHz (±0.25); THD+N <0.05%
Noise Floor	Bluetooth <-70 dB; Network/Line <-80 dB; Line Inputs <-75 dB
Crosstalk	Network-to-mini jack <80 dB; Line Inputs <75 dB
Power	PoE Class 0, IEEE 802.3af
Dimensions (H x W x D)	4.11" (104.39 mm) x 3.52" (89.41 mm) x 2.09" (53.09 mm)
Shipping Weight	1.15 lbs (0.52 kg)
