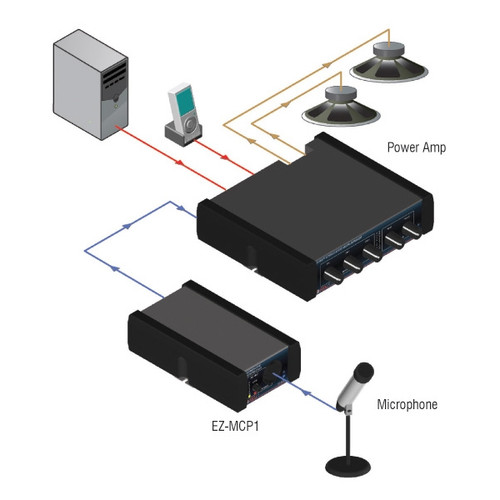

The EZ-MCP1 is an in-line microphone compressor that produces consistent audio levels despite wide variations (up to 30 dB) from the microphone. It is installed between a dynamic or condenser microphone and a mic-level mixer or amplifier input. The only setup required is a front-panel level trimmer that is adjusted during normal speech until the compression LED just begins to flash. A rear-panel output level trimmer is provided although it is typically left in the normal default position. Phantom voltage (24 V) is automatically switched on when the EZ-MCP1 output is connected to a mic jack that provides phantom voltage. The EZ-MCP1 improves sound quality and intelligibility by producing consistent audio levels and controlling overloads that produce distortion and clipping. It is used for recording, paging and public address in houses of worship, restaurants, clubs, meeting rooms, educational facilities, conference rooms and commercial sound systems.
| Input | Mic level, -60 to -30 dBu nominal |
|---|---|
| Input Impedance | >1 kΩ balanced |
| Input / Output Connectors | XLR |
| Level Adjustment | Single turn audio taper (front panel) |
| Minimum Input Level | -60 dBu @max gain,-30 dBu @min gain |
| Maximum Input Level | 0 dBu @min gain |
| Output | Mic level, -55 dBu to -30 dBu, adjustable; NORMAL: -45 dBu |
| Output Impedance | 150 Ω nominal, balanced |
| Output Level Adjustment | Single turn audio taper (rear panel) |
| Frequency Response | 50 Hz to 20 kHz (+/- 0.5 dB) |
| THD+N | < 0.5% (50 Hz to 20 kHz, at compressor threshold) |
| Compression | 30 dB, automatic adjusting attack and release times |
| Noise | |
| CMRR | > 55 dB (50 Hz to 120 Hz) |
| Phantom | 24 V (IEC 1938: 1996-12), present when phantom detected at module output |
| 24 Vdc Power Supply Current | 55 mA (idle), 60 mA (max.), 70 mA (max. with phantom) |
| Power Supply Input Voltage | 100 to 240 VAC |
| Mounting Size | 1/6 rack width |
| Package Dimensions | 9.5" (241.3 mm) x 7" (177.8 mm) x 2.25" (57.15 mm) |
| Shipping Weight | 0.93 lbs (0.42 kg) |
