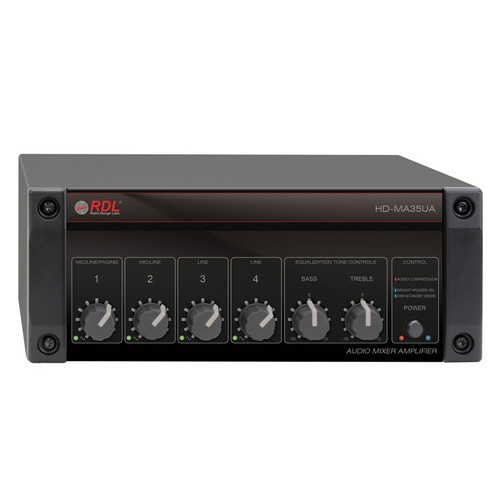

RDL HD-MA35U Mixer Amplifier with Power Supply
Part # HD-MA35U
Model # HD-MA35U

The RDL HD-MA35U Mixer Amplifier with Power Supply is a four input audio mixer amplifier for systems demanding the broadest range of features and the highest energy efficiency. Two output power amplifier zones, 35 watts (Zone 1) and 4 watts (Zone 2), are driven from high-efficiency Class D amplifier stages.

Availability: Usually arrives in 5-9 business days.

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email [email protected] or call us at 888-256-4112.

List Price $635.00
Pro Acoustics Price $476.25
Your Savings $158.75 (25%)
OR

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

The RDL HD-MA35U Mixer Amplifier with Power Supply is a four input audio mixer amplifier for systems demanding the broadest range of features and the highest energy efficiency. Two output power amplifier zones, 35 watts (Zone 1) and 4 watts (Zone 2), are driven from high-efficiency Class D amplifier stages. The mixer and amplifier sections all normally shut down (standby “sleep” mode) when audio is absent and automatically turn on when needed. The Zone 1 amplifier output level may be VCA controlled using various optional RDL remote controls, or by industry standard 0 to 10 Vdc or 0 to 10k ohm controls. This output drives 4 ohm or 8 ohm speakers. The output impedance is switch-selectable on the rear panel. The Zone 2 amplifier output drives an 8 ohm speaker and/or 600 ohm telephone equipment.

The HD-MA35U is engineered, tested and manufactured in the U.S.A. to strict energy conservation standards. The unit consumes less than 1 watt of mains power in standby mode, and meets power amplifier efficiency specifications with analog-filtered Class-D digital output stages for both power amplifier output zones and for the 600 ohm output.

The HD-MA35U features two mixers. The Zone 1 mixer is located on the front-panel providing user level and tone controls for the 35 watt amplifier output. The tone controls adjust the equalization at the Zone 1 amplifier output and can be switch selected on the rear panel to also adjust the equalization at the line-level output. The Zone 2 mixer on the rear panel provides level trimmers normally set by the installer to provide music-on-hold and/or for background music in a small zone equipped with an 8 ohm speaker. The Zone 2 section includes a 4 watt amplifier, a 600 ohm transformer-balanced MOH output, and an active balanced line-level output that may be used to feed another audio power amplifier.

Features

Features

  • Four inputs with individual front‑panel volume controls
  • Bass and Treble tone controls
  • Designed for background music with paging and music‑on‑hold
  • Master volume VCA controlled with remote adjustment capability
  • Manual or automatic (VOX) priority ducking
  • Balanced inputs and amplified outputs on detachable terminal blocks
  • Unbalanced inputs and outputs on RCA jacks
  • Includes power supply
  • Automatic sleep mode meets strictest energy saving standards
