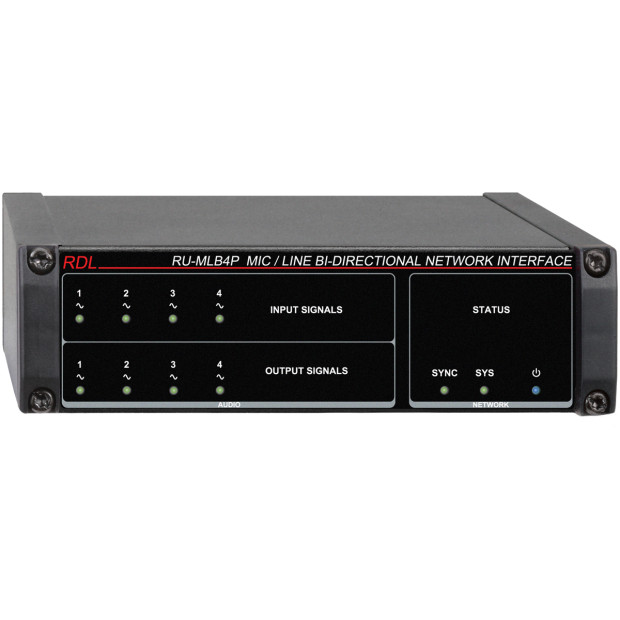

RDL RU-MLB4P 4x4 Mic/Line Dante Network Interface
The RU-MLB4P 4x4 mic/line bi-directional Dante network interface with PoE provides professional, high-resolution audio conversion for commercial and industrial installations. This versatile unit converts four microphones or line-level sources to Dante network channels and simultaneously converts four Dante network channels to balanced line-level outputs, delivering seamless integration with professional audio systems. The front-panel LED indicators show both input and network channel audio levels, facilitating easy setup and monitoring.
Each input is switch-selectable for mic or line operation. Microphone inputs provide automatic gain of 40 dB for condenser mics and 60 dB for dynamic mics, along with P48 phantom power. Line inputs accept both balanced +4 dBu or unbalanced -10 dBV signals with over 18 dB of headroom. Output channels deliver +4 dBu balanced line level with low noise and minimal crosstalk, ensuring pristine audio quality across the system.
Powered via PoE or an optional external 24 Vdc supply, the RU-MLB4P supports normal and hot-standby operation, automatically switching between power sources without interrupting operation. Housed in a rugged all-metal enclosure, this unit supports surface, rack, or free-standing mounting, making it ideal for conference rooms, broadcast environments, and other professional networked audio applications. Built in the U.S.A., the RU-MLB4P is engineered for continuous-duty reliability and exceptional audio performance.
- Features
Features
- 4x4 mic/line bi-directional Dante network interface with PoE
- Converts four microphones or line-level sources to Dante channels
- Converts four Dante network channels to balanced line-level outputs
- Mic inputs provide 40 dB automatic gain for condenser mics and 60 dB for dynamic mics
- P48 phantom power on each microphone input
- Line-level inputs accept +4 dBu balanced or -10 dBV unbalanced signals
- Front-panel LED indicators for each input and Dante channel output
- High-resolution 24-bit analog-to-digital and digital-to-analog conversion
- Minimal noise and crosstalk for pristine audio quality
- Switch-selectable input mode for mic or line operation
- PoE-powered with hot-standby switching from external 24 Vdc supply
- Durable all-metal enclosure for rack, surface, or free-standing mounting
- Engineered for commercial and industrial networked audio systems
- U.S.A. manufactured for continuous-duty reliability
- Ideal for conference rooms, broadcast, and professional AV installations
- Specification
Network Connector RJ45 with Link and Speed indicators Digital Audio Ethernet Protocol Dante Transmission Rate 100 Mbps Sample Rates Supported 44.1 kHz, 48 kHz (default) Bit Depth Supported 24 bits Audio Operating Levels -20 dBFS = +4 dBu Mic Inputs 4 balanced, detachable terminal block; automatic gain (40 dB condenser/60 dB dynamic); P48 phantom power Line Inputs 8 total (4 balanced, 4 unbalanced); +4 dBu balanced/-10 dBV unbalanced; >18 dB headroom Line Outputs 4 balanced, detachable terminal block; +4 dBu nominal; <0.05% THD+N Frequency Response 20 Hz - 20 kHz (± 0.5 dB, all inputs/outputs) Crosstalk <70 dB (mic-to-mic)/<75 dB (line-to-line)/<85 dB (network-to-line) Noise Floor 3" (76.2 mm< -70 dB (mic), < -75 dB (line), < -80 dB (network output active) Power PoE Class 0 IEEE 802.3af or 24 Vdc external supply; supports phantom loads Mounting Rack, surface, or free-standing; all-metal enclosure Dimensions (H x W x D) 1.7" (43.18 mm) x 5.8" (147.32 mm) x 5.2" (132.08 mm) Shipping Weight 1.81 lbs (0.82 kg) - Documents
