- Description
Details
The Tascam ML-32D is a professional Dante-focused converter made specifically to insert or extract analog audio into or out of a Dante network using external breakout devices that utilize Sub-D format connectors.
A powerful and flexible solution, the Tascam ML-32D has 4 D-Sub inputs and 4 D-Sub outputs, which can easily be connected to any of the many devices that utilize D-Sub connectors such as microphone preamplifiers, large and small format console mixers, audio interfaces, amplifiers, and euroblock connector devices. This simple yet elegant solution enables audio to be quickly and easily inserted into - or extracted from - the Dante audio stream.

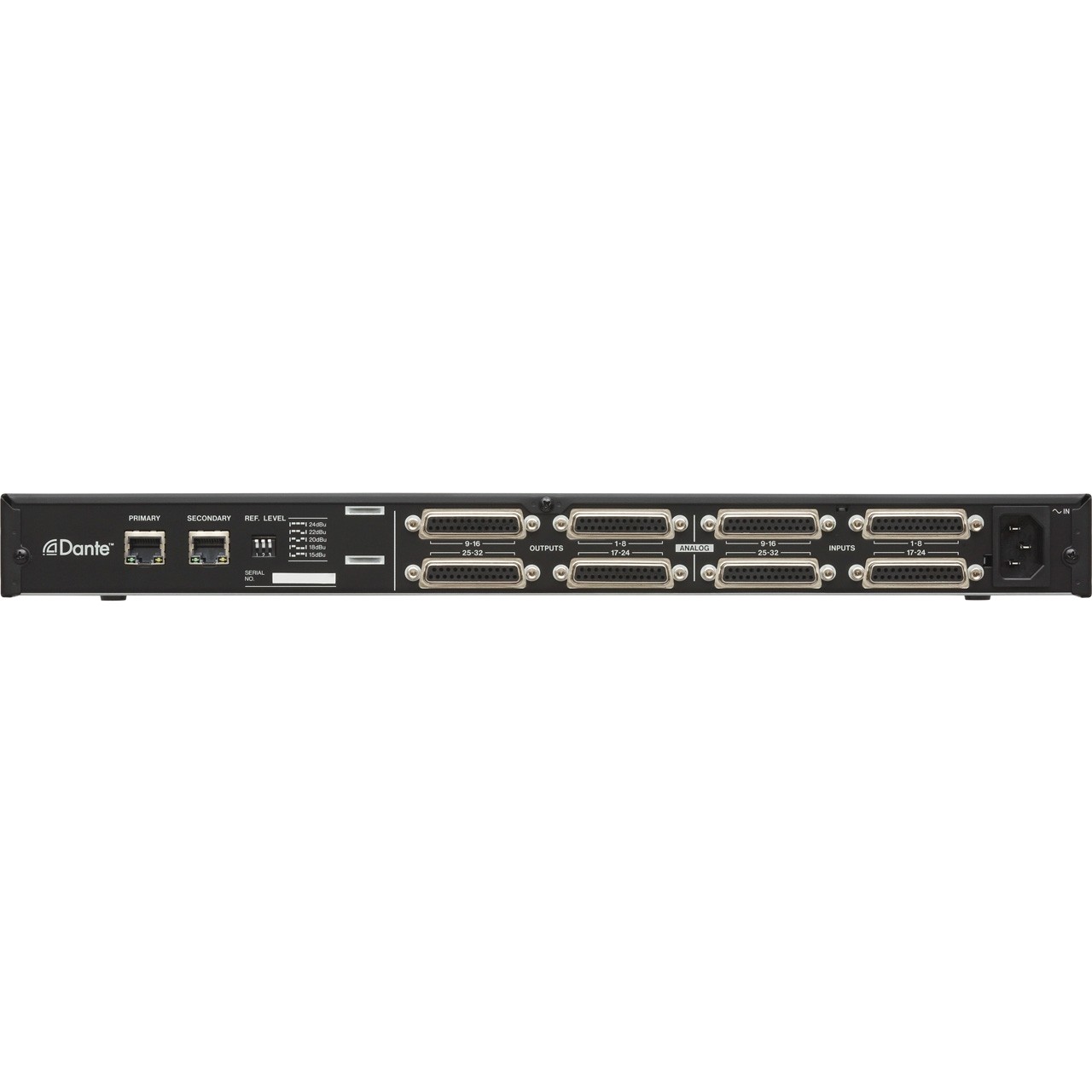

Primary and secondary connectors enable building a redundant system with a duplex network. Should the primary network route fail, the ML-32D automatically switches to the secondary network route. This highly secure system prevents interruption and introduces no noise during the switch.

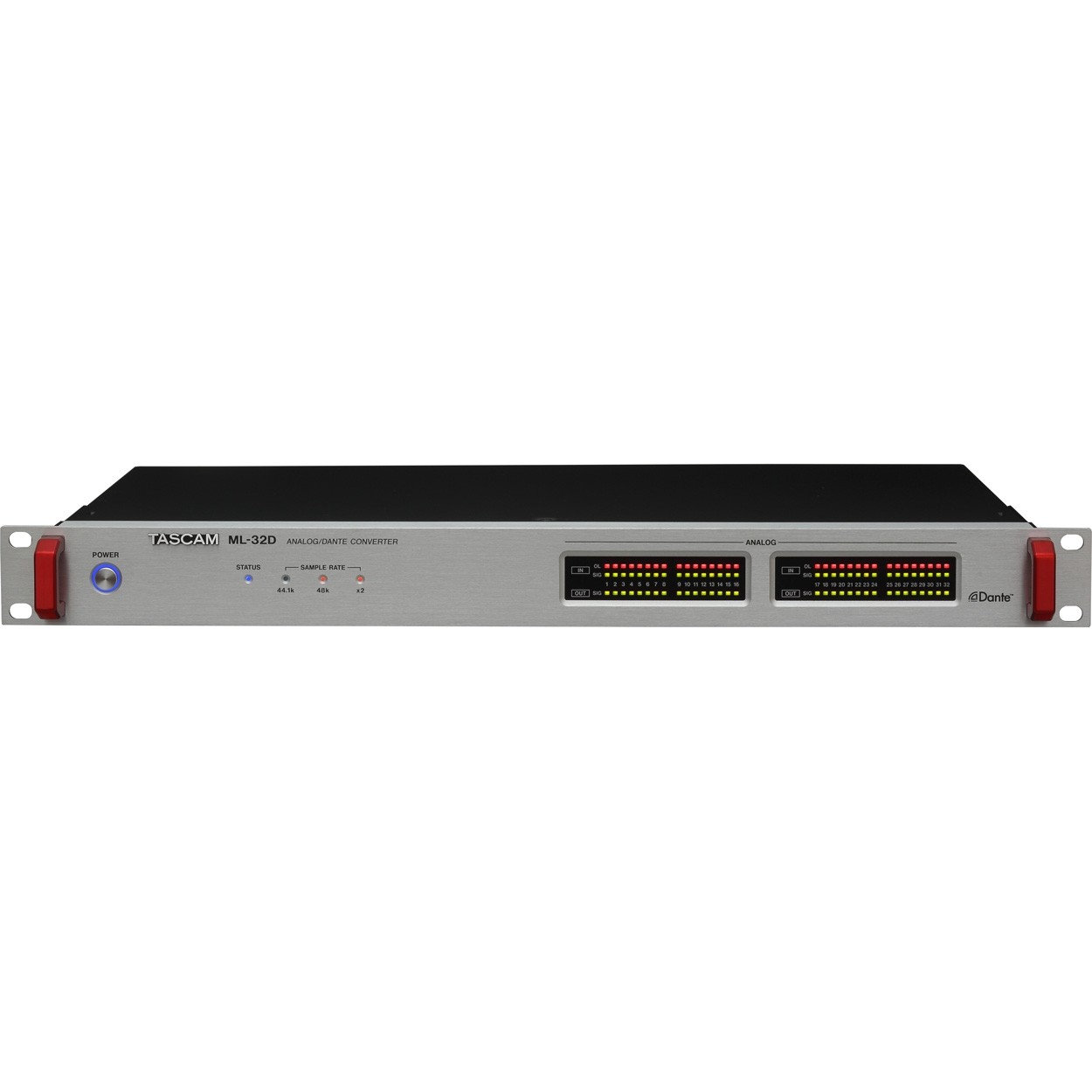

The front panel is equipped with a signal/overload indicator that enables monitoring of analog input/output signals. The signal indicator turns on when a signal level becomes lower than -60dBFs.
The Tascam ML-32D features selectable reference level setting from 5 maximum level options: +24dBu, +22dBu, +20dBu, and +18dBu (the standard level is +4dBu) and +15dBu (the standard level is +6dBu), which can accommodate a variety of purposes including professional use in broadcasting studios, public address systems, and recording environments.
- Features
Features
- Dante-focused interface for connection of external audio into or out of a Dante audio network
- 32-channel analog line input and 32 analog line outputs (48kHz / 96kHz) using 8 D-Sub connectors
- Dual redundant Ethernet jacks which support both primary and secondary connections
- Up to 24 bit / 96kHz quality
- LED display for signal level and overload per input/output channel
- Reference level dip switches for selectable dBu level metering
- Firmware updatable via Dante port
- AES67 and Ravenna compatible
- Specification
Dimensions (H x W x D) 1.8" (45 mm) x 19" (483 mm) x 12" (303.8 mm) Weight 7.7 lbs (3.5 kg) - Documents
