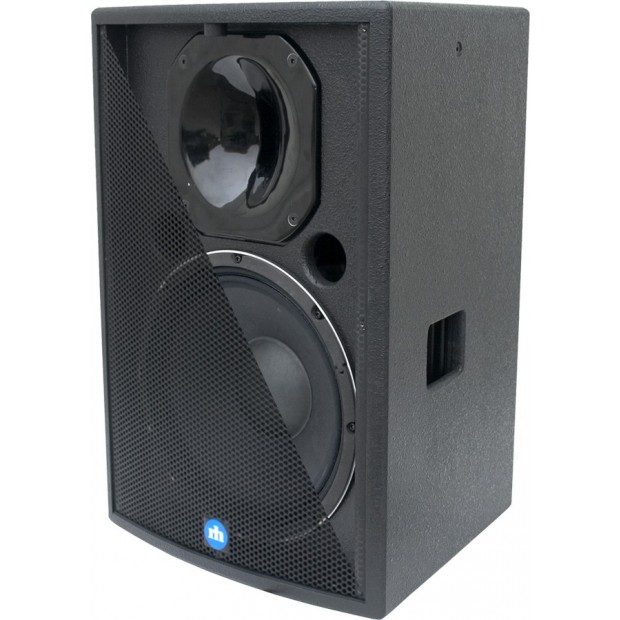

The Renkus-Heinz CFX121 self-powered loudspeaker provides smooth, low distortion high frequency performance to 18 kHz and beyond. CF & CFX Series loudspeakers put the power of unique Renkus-Heinz developments like Complex Conic Horns to work for you.

Description
The CFX121 is a loudspeaker. CF & CFX Series loudspeakers put the power of unique Renkus-Heinz developments like Complex Conic Horns to work for you. Versatile enclosure designs, go-anywhere hardware and rugged construction help solve your sound reinforcement challenges easily and quickly.

Every CF & CFX Series loudspeaker is engineered by Renkus-Heinz to unrivaled standards of quality and innovation. Before we'll ship them, your loudspeakers have to meet our exacting requirements, for performance that will make you proud and durability that will keep you sounding great.

Features
  • Compact Design
  • Exclusive Complex Conic Design
  • 2" Extended Range Titanium HF Driver
  • Heavy-Duty 12" Woofer
  • Passive or Bi-Amp Operation

Specifications
Sensitivity 98 dB (1W/1m)
Max. SPL 128 dB peak
Dispersion 90° H by 60° V, 120° H by 60 V optional
Freq. Resp ± 3 dB, 70 Hz to 18 kHz
HF Driver 2" SSD203-8F driver, 40W RMS, 80W pgm
LF Driver 12" model SSL12-14F, 250 W RMS @ 4 ohms,except CFX121-8 which uses model SSL12-22, 8 ohm, 250W R
Enclosure Hardwood, perforated metal grille
Finish Black or white paint, custom color optional Weather resistant treatment optional
Power 500W pgm at 4 ohms
Connectors Screw terminals & looping Neutrik 4-pin Speakon style connectors
Hardware 6-point univ. mtg. hdw. (#6 metric threads) U-bracket attachment points Tripod socke
Dimensions (H x W x D) 23.13" (587.5 mm) x 15.75" (400 mm) x 14.5" (368 mm)
Weight 52.4 lbs (23.8 kg)
