This restaurant audio system design delivers high-quality, reliable sound coverage across indoor dining areas and large outdoor patios in a professional dining environment. It includes four compact SoundTube SM400i 4" speakers for clear audio indoors, along with six SM500i-II-WX 5.25" weatherproof speakers for powerful outdoor sound. At the core of this restaurant audio solution is the Pure Resonance Audio RMA500BT rack mount mixer amplifier with 500 watts of high-output power, Bluetooth audio streaming, and multiple input options. Two Lowell 200LVC in-wall volume controls with stainless steel wall plates offer independent volume adjustment in different areas, while the RDL D-J3 mic/line wall input panel provides convenient XLR and RCA connectivity for DJs, musicians, or auxiliary audio sources. Easy to use and built for reliable daily operation, this commercial audio system for restaurants combines exceptional performance, durability, and user-friendly operation for a premium dining experience inside and out.

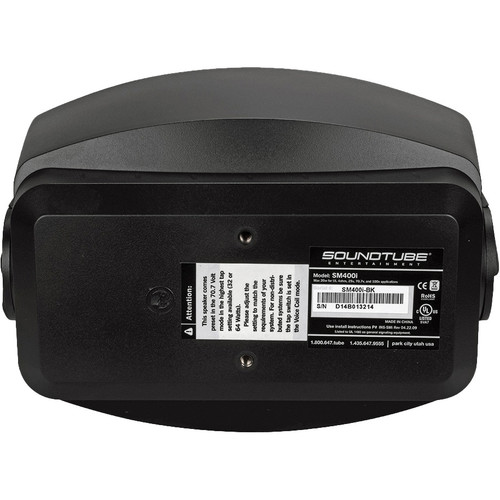

The SM400i is a compact 4" restaurant speaker designed for indoor areas where clear, high-quality audio is needed. This soundtube surface mount speaker features a polypropylene woofer and silk-dome tweeter for natural, even sound reproduction. Its discreet appearance makes it perfect to install in dining areas without drawing attention, while still delivering a wide frequency response for excellent performance.

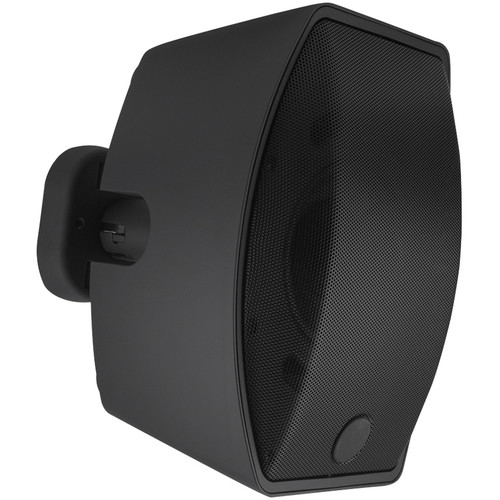

The SM500i-II-WX is a high-power 5.25" surface-mount speaker with enhanced weather resistance and SoundTube’s proprietary Weather Guard™ technology, making it ideal for outdoor restaurant patios and entryways. This soundtube outdoor speaker delivers full-range sound with excellent projection, due to a polypropylene woofer and 1" dome tweeter. Its sealed enclosure and rugged build allow it to perform consistently in open-air conditions without sacrificing audio quality.
The RMA500BT is a powerful 5-channel rackmount mixer amplifier offering 500 watts of total output. It supports 70V/100V speaker systems, making it well-suited for commercial installations. With built-in Bluetooth, FM radio, USB/SD media playback, and mic/line inputs, this mixer amplifier gives you flexibility in audio sources. Perfect for streaming audio for restaurant environments, it also includes priority override for paging, ideal for announcements in a busy restaurant setting.

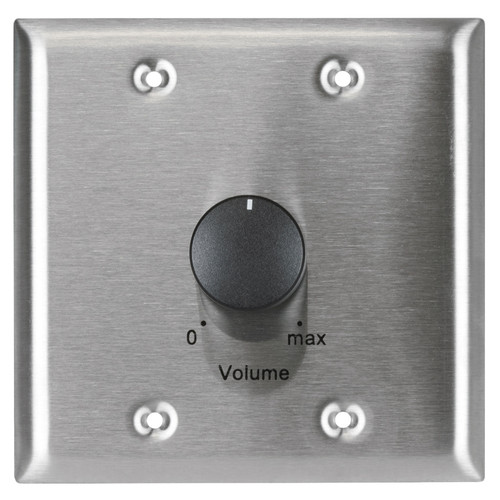

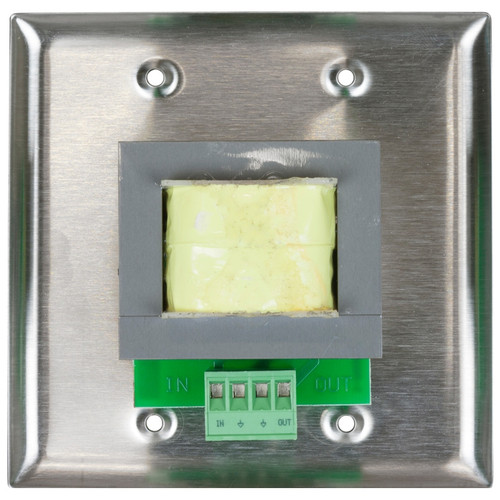

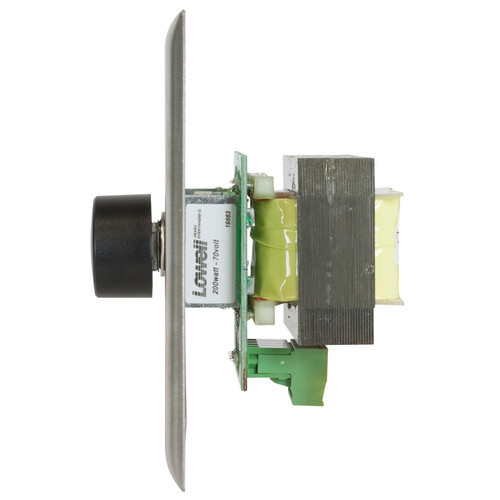

This system includes two Lowell 200LVC in-wall volume controls with easy-to-clean stainless steel wall plates. Each control is rated for 200 watts and designed for use with 70V/100V audio systems. These wall-mounted controls allow staff to easily adjust volume levels in specific areas, such as the patio or indoor dining room, to match the desired ambiance.

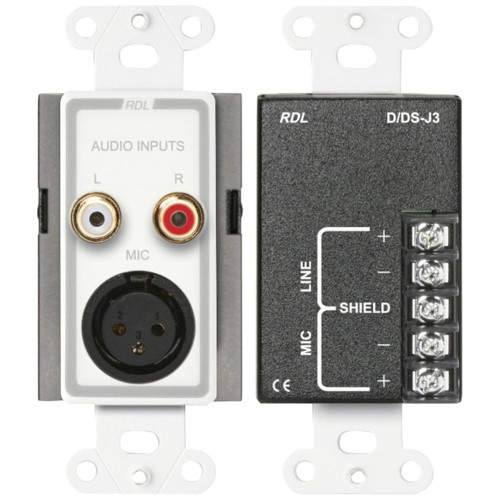

The RDL D-J3 is a mic/line wall input panel that allows easy connection of a microphone or external audio device at a remote location. Featuring balanced XLR and stereo RCA inputs, it’s perfect for when a DJ or musician may need to connect or when someone wants to play audio from their laptop without having direct access to the mixer amplifier. It installs easily in a standard electrical box, offering a clean and convenient solution for flexible audio control.
