Restaurant Sound System with 16 SoundTube CM31-EZ In-Ceiling Speakers, 4 Zone Mixer, 2 Power Amplifiers and 4 Volume Controls

Inside the Design

This restaurant music system delivers high-performance background audio to enhance the atmosphere across multiple zones, both indoors and outdoors. With tailored zoning for areas like the main dining room, bar, patio, and restrooms, it provides exceptional sound quality to create the right ambiance throughout the establishment. The system features 16 SoundTube CM31-EZ in-ceiling speakers, known for their compact design and clear audio performance, paired with the versatile Pure Resonance Audio MX84 4-zone mixer and two DA2500 dual-impedance power amplifiers. These components work together to provide clear and consistent sound throughout the establishment.

The MX84 provides multiple audio and microphone inputs, allowing different music sources and independent volume levels for each zone. The DA2500 amplifiers deliver 500W per channel with independent 70V or 4-16Ω operation for flexible system configuration and reliable power across the speakers. Additionally, this system supports paging capabilities, enabling seamless communication to specific zones or the entire venue.

Sound System Features

• Supports up to 4 zones with independent audio and volume control for tailored sound
• Comprehensive in-ceiling speaker design provides seamless indoor and outdoor coverage
• High-performance components deliver consistent, clear audio for background music and paging
• Paging capabilities allow announcements to one or more zones, enhancing communication across the venue
• Reliable amplification with two DA2500 dual-impedance 500W amplifiers provides consistent power for all speakers
• Pure Resonance Audio VC100W 100W Decora wall volume controls provide convenient local volume adjustment in each zone

About the System Components

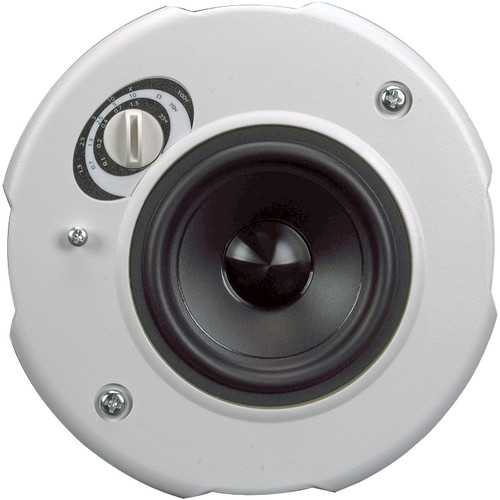

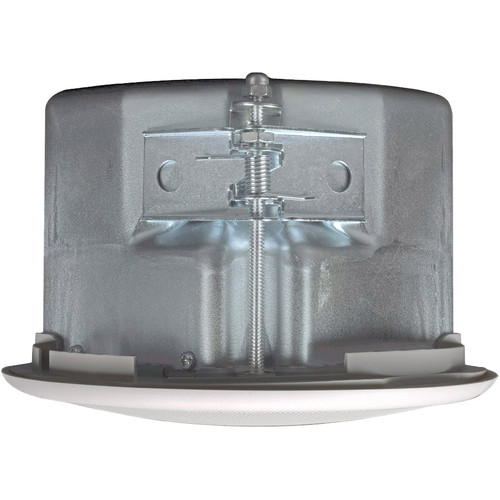

SoundTube CM31-EZ 3" In-Ceiling Indoor/Outdoor Speakers

The SoundTube CM31-EZ is a premium full-range 3-inch in-ceiling speaker designed for both 8-ohm and distributed audio solutions. Featuring a low-profile grille and compact footprint, it is ideal for discreet installations. Its integrated backcan and driver design provide excellent sound performance, while weatherized components make it suitable for indoor and outdoor use.

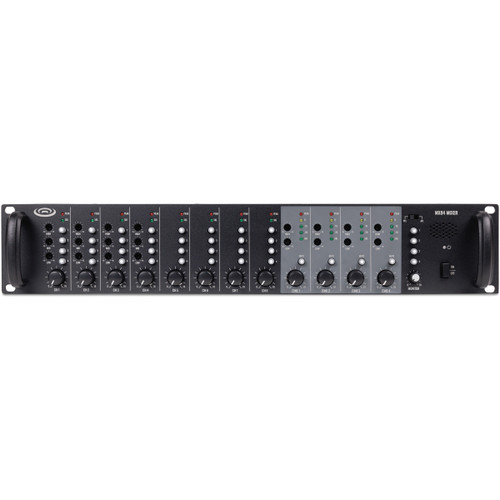

Pure Resonance Audio MX84 4 Zone 8-Channel Mixer

The MX84 mixer supports multiple audio and microphone inputs, offering flexible control for up to four zones. Its user-friendly design includes independent volume, bass, and treble controls for precise audio customization, making it a perfect fit for professional multi-zone sound systems.

Pure Resonance Audio DA2500 Dual-Impedance 500W Rack Mount Power Amplifiers

The DA2500 amplifiers deliver 500W per channel of reliable power with independent dual-impedance operation, supporting 70V or 4-16Ω speaker loads on each channel. Their 1U rack-mountable design provides efficient integration into professional audio systems, making them well suited for powering multi-zone commercial sound systems.

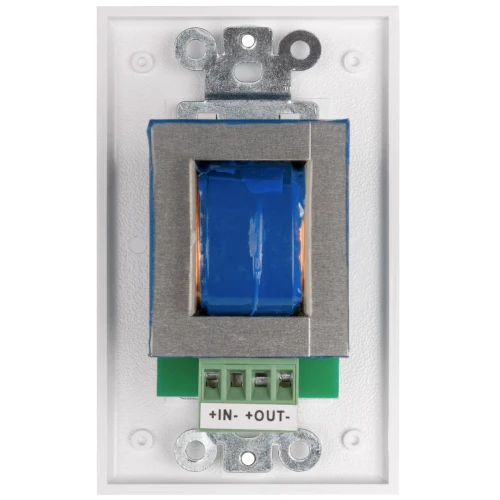

Pure Resonance Audio VC100W 100W Decora 70V Commercial Volume Controls - White

The VC100W volume controls provide smooth, convenient local volume adjustment for each zone. Their white Decora wall plate and matching rotary knob provide a clean, professional appearance while supporting 25V, 70V, and 100V distributed audio systems.
