Restaurant Sound System with 2 QSC AcousticDesign Pendant Speakers, Pure Resonance Audio 4-Zone Mixer, 240W Power Amplifier, Volume Controls, and Bluetooth Music Streaming

Inside the Design

This restaurant sound system provides high-performance audio for high-end applications where sound drives the atmosphere. Equipped with two QSC AD-P.HALO 6.5" 200W integrated sub/sat all-in-one pendant loudspeaker systems, this setup offers powerful and consistent sound coverage. The Pure Resonance Audio MX84 4 zone 8-channel rack mount mic/line mixer allows flexible audio control across multiple zones, while the Pure Resonance Audio DA2240 dual-impedance 240W rack mount power amplifier ensures reliable power distribution. Additional components like the Pure Resonance Audio BTR1 Bluetooth wireless audio receiver and VC100W commercial volume controls provide versatile connectivity and user-friendly operation.

Sound System Features:

• Multi-zone audio distribution for flexible sound management
• Designed for business music installations where music enhances the atmosphere
• Clear, quality paging and background music capabilities
• QSC AD-P.HALO pendant loudspeakers offer a sleek aesthetic design with high-quality sound
• Pure Resonance Audio MX84 mixer provides flexible mic/line input and output options
• Pure Resonance Audio DA2240 amplifier offers high efficiency and dual-impedance support
• Bluetooth connectivity for wireless audio streaming
• User-friendly volume control with Decora-style wall plates



About the System Components

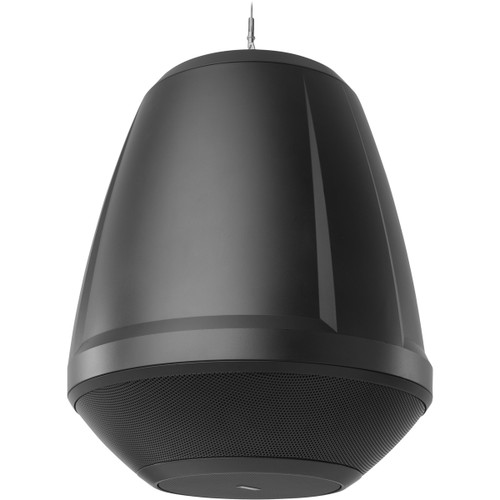

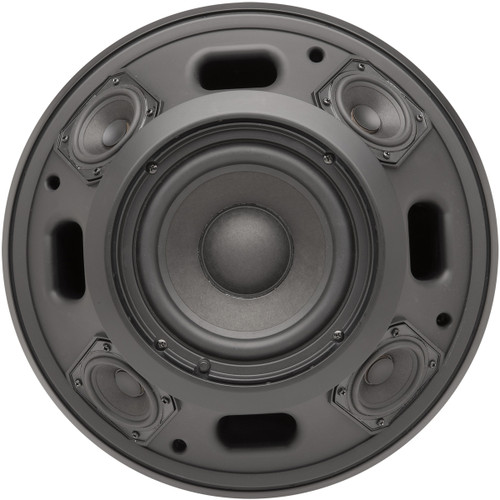

QSC AD-P.HALO 6.5" 200W Integrated SUB/SAT All-In-One Pendant Loudspeaker Systems

The QSC AD-P.HALO is a purpose-built, integrated SUB/SAT pendant loudspeaker system, featuring an integrated 6.5" subwoofer and four 2.75" satellite transducers in a single enclosure. Designed for business music installations where sound drives the atmosphere, it offers a 200W RMS power rating with dynamic headroom that surpasses traditional two-way loudspeakers.

Pure Resonance Audio MX84 4 Zone 8-Channel Rack Mount Mic/Line Mixer

The MX84 mixer features eight input channels with independent volume controls and LED indicators. Its four-zone output design provides flexible routing options for different areas within a venue. With 48V phantom power for microphones and priority ducking for paging, it's ideal for commercial audio applications.

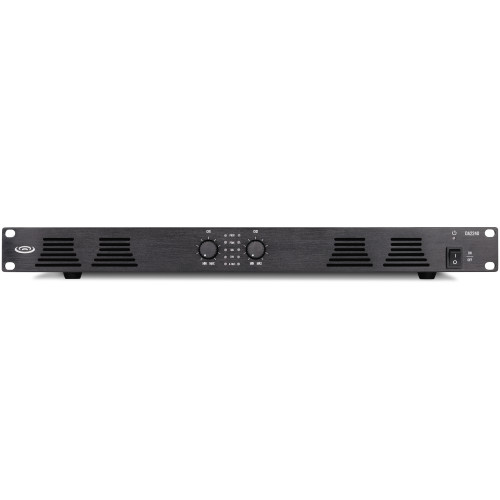

Pure Resonance Audio DA2240 Dual-Impedance 240W Rack Mount Power Amplifier

The DA2240 amplifier delivers 240W of power with dual-impedance support for both 70V/100V distributed audio systems and low-impedance speakers. Its Class-D design ensures high efficiency and low heat, with short circuit and thermal protection for reliability.

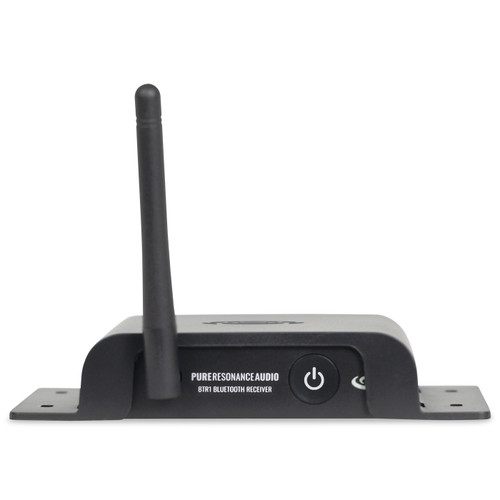

Pure Resonance Audio BTR1 Bluetooth Wireless Audio Receiver with 100ft Range

The BTR1 receiver provides seamless wireless audio streaming with Bluetooth 4.2 technology. With a 100ft wireless range, RCA and 3.5mm output options, and compact design, it offers professional-grade audio connectivity for various applications.

Pure Resonance Audio VC100W 100W Decora 70V Commercial Volume Controls - White

The VC100W volume controls are designed for commercial audio systems with 100W power handling. The Decora-style wall plates feature a smooth rotary knob for precise volume adjustments and are compatible with standard single-gang electrical boxes.
