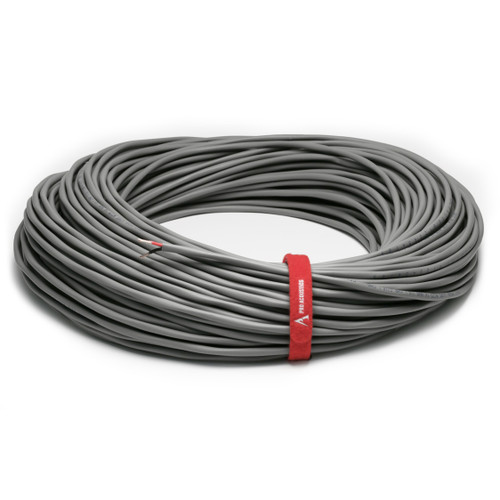

This restaurant sound system is designed to deliver clear, balanced background music throughout restaurants, cafes, coffee shops, dining rooms, patios, and outdoor seating areas. Featuring four JBL Control 23-1 compact indoor/outdoor surface-mount speakers, the system provides wide, consistent audio coverage while maintaining a discreet appearance that complements a variety of commercial environments. Each speaker features a 3-inch woven fiberglass woofer, a 0.5-inch tweeter, and 100° x 100° coverage for detailed music reproduction and clear speech. The Pure Resonance Audio MA120BT 120W commercial mixer amplifier provides reliable power, built-in Bluetooth wireless streaming, and flexible audio source management, allowing staff to easily play music from smartphones, tablets, and other compatible devices. The included Pure Resonance Audio VC100W 100W Decora-style wall volume control allows convenient adjustment of the connected speakers without accessing the amplifier, while 250 feet of West Penn 225 16/2 speaker wire supports flexible installation throughout the space. Together, these components create a versatile 70V commercial sound system that combines quality background music, weather-resistant speakers, and convenient everyday operation for indoor and outdoor dining environments.
The JBL Control 23-1 is an ultra-compact, two-way indoor/outdoor loudspeaker designed to deliver high-quality background and foreground music in restaurants, hospitality venues, retail spaces, and outdoor dining areas. Each speaker features a 3-inch woven fiberglass woofer and a 0.5-inch fluid-cooled PEI diaphragm tweeter for smooth, balanced sound reproduction with detailed highs and clear vocals. Its wide 100° x 100° coverage pattern helps distribute sound consistently throughout dining rooms, patios, and other listening areas, while the compact enclosure blends naturally into a variety of architectural environments. Built for dependable indoor and outdoor operation, the Control 23-1 features an IP44-rated weather-resistant enclosure, corrosion-resistant grille, and durable driver components designed to withstand environmental exposure. The included JBL InvisiBall mounting system allows discreet installation and flexible speaker aiming for precise sound placement. Each speaker includes a built-in 70V/100V multi-tap transformer with selectable 70V settings of 1.8W, 3.7W, 7.5W, and 15W, along with an 8-ohm bypass option. For this system, setting all four speakers to 15W results in a combined 60W speaker load, leaving additional amplifier capacity and keeping the load within the included VC100W volume control's 100W rating. Lower wattage taps may also be selected for quieter listening areas or applications requiring reduced background music levels.

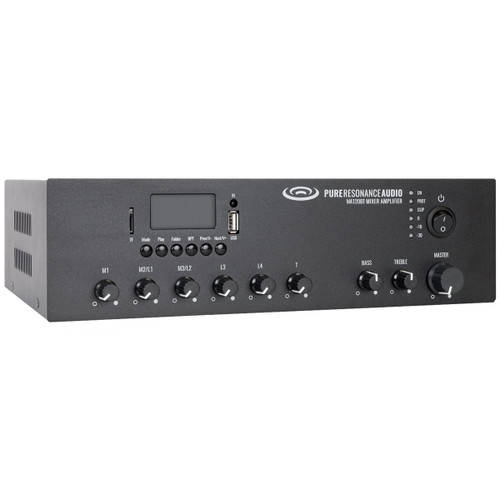

The Pure Resonance Audio MA120BT is a versatile 120W commercial mixer amplifier designed to provide reliable audio amplification and flexible source management for restaurants, cafes, retail stores, and other commercial environments. Featuring built-in Bluetooth wireless streaming, the MA120BT allows staff to conveniently play background music from compatible smartphones, tablets, and other Bluetooth-enabled devices without requiring an external receiver. Its seven-channel design combines microphone and line-level inputs with a built-in Bluetooth media player, USB and SD media playback, and FM radio functionality for a wide range of audio sources. The amplifier supports 70V, 100V, and low-impedance speaker outputs, making it suitable for both distributed speaker systems and conventional installations. Independent microphone and line input volume controls, master volume adjustment, and bass and treble controls provide flexible sound management for different listening environments. Additional capabilities include a balanced XLR microphone input with phantom power, microphone priority functions, telephone paging input with voice-activated priority, and built-in protection against overload, clipping, short circuits, and excessive temperature. Its compact design and straightforward controls make the MA120BT a practical solution for everyday background music and announcement applications.

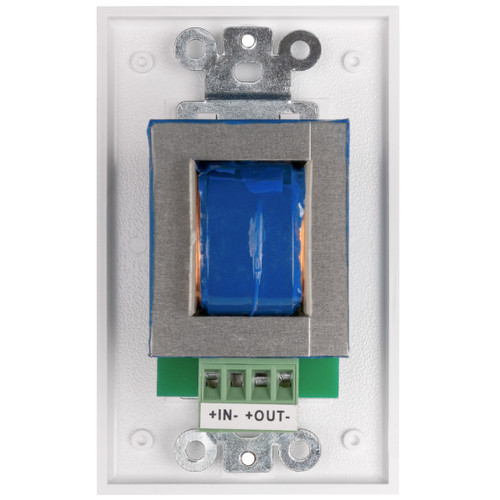

The Pure Resonance Audio VC100W is a wall-mounted commercial speaker volume control designed to provide convenient audio level adjustments in 70V distributed sound systems. Featuring a 100W power rating and a clean white Decora-style wall plate, it blends naturally into restaurant interiors, dining rooms, service counters, and other commercial spaces. The VC100W allows staff to adjust the volume of connected speakers without accessing the main mixer amplifier, making it easy to accommodate changing background noise levels, dining periods, and customer preferences. Its high-quality attenuator design provides smooth volume adjustments with low insertion loss while maintaining reliable audio performance. Compatible with 25V, 70V, and 100V commercial audio systems, the VC100W supports flexible integration into distributed speaker installations. In this restaurant system, the volume control provides convenient adjustment of the four JBL Control 23-1 speakers when connected on the same 70V speaker line, allowing staff to maintain a comfortable listening environment throughout the establishment.
