Restaurant Sound System with 6 JBL Control 23-1 Wall Mount Indoor Outdoor Speakers and Bluetooth Mixer Amplifier

Inside the Design

This professional 70V restaurant sound system delivers clear, consistent audio for indoor and outdoor dining areas, patios, bars, and cafés. Outfitted with six JBL Control 23-1 weather-resistant surface-mount speakers and the powerful Pure Resonance Audio RMA240BT 240W rack mount Bluetooth mixer amplifier, this system provides reliable high-performance sound for background music and paging. The compact JBL speakers offer a wide coverage pattern and full-range clarity, while the upgraded 240W mixer amplifier supports Bluetooth streaming, multiple audio inputs, and efficient 70V distribution for larger commercial spaces. A Pure Resonance Audio VC100W Decora-style volume control provides convenient wall-mounted level adjustment, giving staff easy access to system-wide volume control.

Sound System Features:

• Complete 70V restaurant sound system designed for background music and paging
• Six JBL weather-resistant speakers suitable for year-round indoor and outdoor use
• Compact speakers provide 100° x 100° coverage with clear, balanced sound
• Adjustable InvisiBall® mounting hardware for flexible and precise speaker positioning
• 240W rack mount Bluetooth mixer amplifier with multiple inputs for microphones and external sources
• Supports 70V, 100V, and low-impedance speaker configurations for flexible system design
• Integrated Bluetooth streaming for wireless background music playback
• Built-in priority ducking for paging and announcements
• Decora-style 100W volume control for simple wall-mounted system volume adjustments

About the System Components

JBL Control 23-1 Indoor/Outdoor Surface Mount Speakers

The JBL Control 23-1 speakers are compact, weather-resistant commercial loudspeakers engineered for high-performance music and paging. With a 3" woven fiberglass woofer and a 1/2" PEI diaphragm tweeter, they deliver clear, full-range audio with wide 100° x 100° dispersion. Their durable enclosure allows reliable operation in both indoor and outdoor environments, making them ideal for dining rooms, patios, entryways, and bar areas. Each speaker includes JBL’s InvisiBall® mounting hardware for streamlined installation and precise positioning.

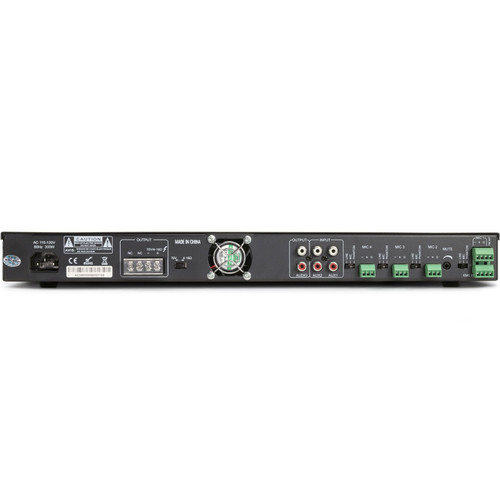

Pure Resonance Audio RMA240BT 240W Bluetooth Mixer Amplifier

The Pure Resonance Audio RMA240BT is a high-power 240W rack-mountable mixer amplifier designed for demanding commercial audio applications. It features built-in Bluetooth streaming, multiple mic and line inputs, and integrated priority ducking for paging and emergency announcements. Supporting 70V, 100V, and low-impedance speaker outputs, this amplifier provides flexibility for a wide range of restaurant layouts. Its robust design ensures reliable long-term performance, while the intuitive front-panel controls make day-to-day operation simple for staff.

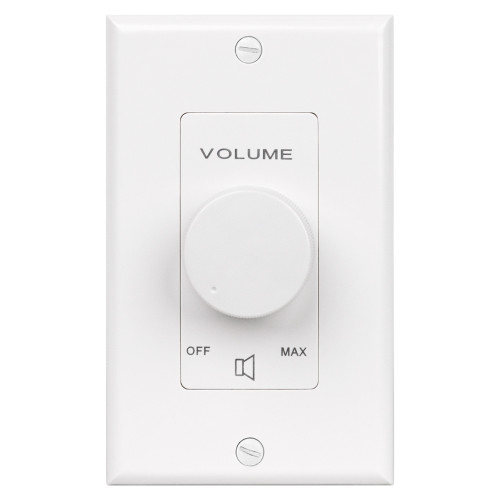

Pure Resonance Audio VC100W 100W 70V Volume Control

The Pure Resonance Audio VC100W Decora-style volume control provides smooth, precise volume adjustments for 25V, 70V, and 100V distributed audio systems. Designed to handle up to 100W of power, it allows users to conveniently control system volume from a single, wall-mounted location. The clean white Decora design blends seamlessly into modern commercial interiors, making it ideal for restaurants, cafes, and hospitality environments where aesthetics and usability are essential.

System & Component Videos

JBL Control 23-1 Indoor/Outdoor Surface Mount Speakers

• Compact 3" woven fiberglass cone woofer paired with a 1/2" PEI diaphragm tweeter for clear, high-fidelity sound
• Wide 100° x 100° coverage pattern delivers even audio distribution throughout the space
• Weather-resistant enclosure and transducers designed for reliable indoor and outdoor operation
• Built-in InvisiBall® mounting hardware allows precise aiming and flexible installation
• Contemporary, high-design appearance blends seamlessly into commercial environments
• Supports direct 8Ω operation at 50W (100W program) and includes a built-in 15W 70V/100V multi-tap transformer
• Broad frequency response of 70 Hz – 20 kHz ensures balanced music playback and speech clarity

Pure Resonance Audio RMA240BT 5-Channel 240W Rack Mount Bluetooth Mixer Amplifier

• High-output 240W commercial mixer amplifier designed for larger restaurant and hospitality sound systems
• Built-in Bluetooth enables wireless audio streaming from smartphones, tablets, and other devices
• Multiple mic, line, and RCA inputs provide flexible integration with audio sources and paging systems
• Supports 70V, 100V, and 4–16Ω speaker output configurations
• Integrated priority ducking automatically lowers music volume for paging and announcements
• Rack-mountable chassis with a compact, space-saving design for commercial installations

Pure Resonance Audio VC100W 100W Decora-Style 70V Volume Control

• Designed for use with 25V, 70V, and 100V distributed audio systems
• Handles up to 100W of power for reliable volume control in commercial applications
• Provides smooth, high-quality audio level adjustment for single or multiple speaker runs
• Decora-style white faceplate blends seamlessly with modern commercial interiors
• Low insertion loss and excellent frequency response maintain sound quality
• Detachable Euroblock connector supports up to 14-gauge speaker wire for easy installation

• (6) JBL Control 23-1 3" Indoor/Outdoor Speakers
• (1) Pure Resonance Audio RMA240BT 5-Channel 240W Rack Mount Bluetooth Mixer Amplifier
• (1) Pure Resonance Audio VC100W 100W Decora 70V Volume Control
• (500') West Penn 225 16/2 Non-Plenum Audio Speaker Wire - Gray
