Inside the Design
This restaurant sound system delivers high-performance background audio and paging capabilities across multiple zones, including the dining area, patio, and restrooms. Designed for seamless integration, it features tailored audio zoning to create the right ambiance throughout the space. The system includes eight 6.5" pendant speakers for the dining area, two 5.25" surface-mount outdoor speakers for the patio, and two 4" in-ceiling speakers for the restrooms. Powered by a 500W commercial Bluetooth mixer amplifier with 4-16Ω/70V speaker output, it supports Bluetooth, USB, TF card, and FM playback along with multiple microphone and AUX inputs.
The system also includes a push-to-talk paging microphone and commercial-grade Pure Resonance Audio VC100W 100W Decora wall volume controls for convenient local volume adjustment in each zone. The RMA500BT provides emergency input priority, microphone priority, bass and treble controls, and forced-air cooling with variable-speed operation, making the system well suited for restaurant environments requiring flexible background music, paging, and zone volume control.
Sound System Features
- Supports independent audio and volume control in each zone for convenient sound adjustment
- Pendant speakers with BroadBeam Ring technology provide consistent high-frequency coverage in open-ceiling areas
- Weatherproof surface-mount speakers deliver clear audio for outdoor spaces
- In-ceiling speakers provide clear and consistent audio in restroom areas
- RMA500BT 500W commercial Bluetooth mixer amplifier supports Bluetooth, USB, TF card, and FM playback along with multiple microphone and AUX inputs
- Emergency input provides priority audio interruption for emergency announcements
- Pure Resonance Audio VC100W 100W Decora wall volume controls provide convenient local volume adjustment in each zone
- Push-to-talk paging microphone allows for clear announcements throughout the system
About the System Components
SoundTube RS62-EZ 6.5" Coaxial Open-Ceiling Pendant Speakers
Perfect for dining areas, these pendant speakers provide outstanding sound quality with BroadBeam Ring technology, ensuring even high-frequency coverage throughout large open spaces.

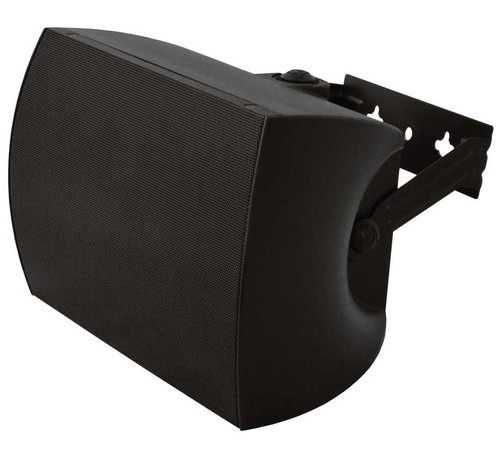

SoundTube SM52-EZ-WX 5.25" Surface-Mount Weatherproof Speakers
Designed for outdoor use, these rugged speakers deliver excellent sound clarity and durability, making them ideal for patios and other exposed areas.

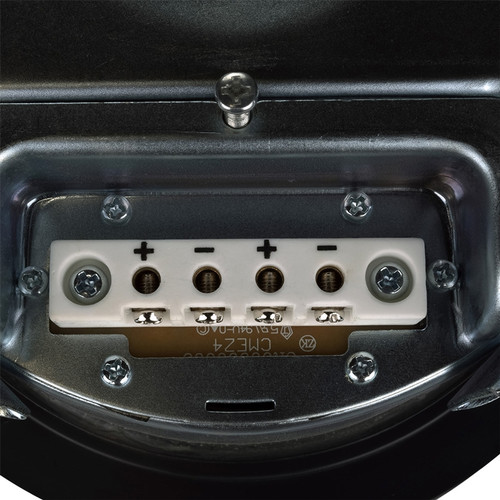

SoundTube CM42-EZs-II 4" In-Ceiling Shallow Backcan Speakers
These compact in-ceiling speakers are perfect for restrooms, offering reliable and discreet audio coverage with a shallow backcan design.

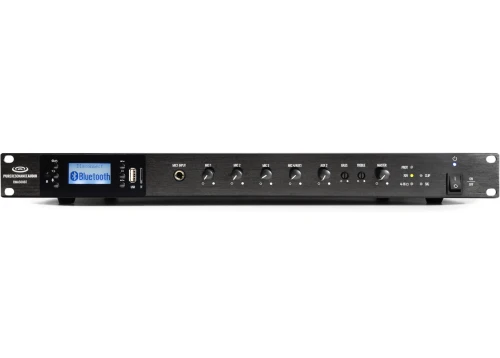

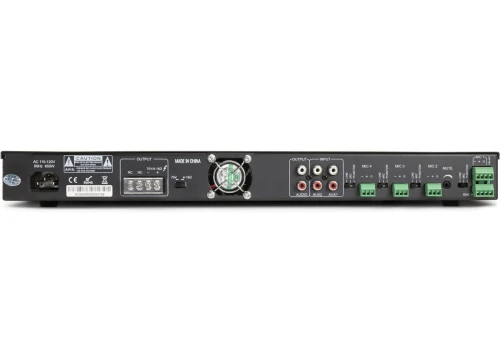

Pure Resonance Audio RMA500BT 5-Channel 500W 70V/4-Ohm Commercial Rack Mount Mixer Amplifier with Bluetooth
This powerful 500W commercial mixer amplifier provides ample power for the entire system and supports Bluetooth, USB, TF card, and FM playback, along with multiple microphone and AUX inputs for flexible audio connectivity. It also features emergency input priority, bass and treble controls, and forced-air cooling for reliable operation in commercial applications.

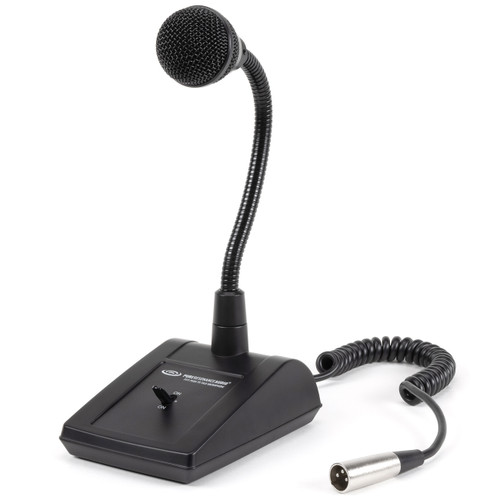

Pure Resonance Audio PTT1 Desktop Push-to-Talk Gooseneck Microphone
With its intuitive push-to-talk functionality, this microphone ensures clear and efficient paging while maintaining background music.

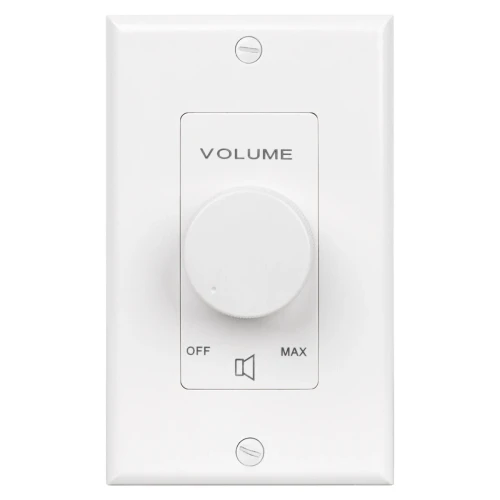

Pure Resonance Audio VC100W 100W Decora 70V Commercial Volume Controls - White
These white Decora wall-mounted volume controls provide independent local adjustment of audio levels in each zone, offering convenient operation and flexible volume control for 25V, 70V, and 100V distributed audio systems.
