Restaurant Sound System with 8 QSC AcousticDesign Wall Mount Speakers Power Amplifier and Atlas Sound Mixer (Discontinued)

This Medium to Large QSC Restaurant Sound System is perfect when you need background music that will add to your customers’ mealtime enjoyment without interfering with their conversation. This system is ideal for small coverage areas and can be easily expanded for further coverage and control over separate zones and paging.

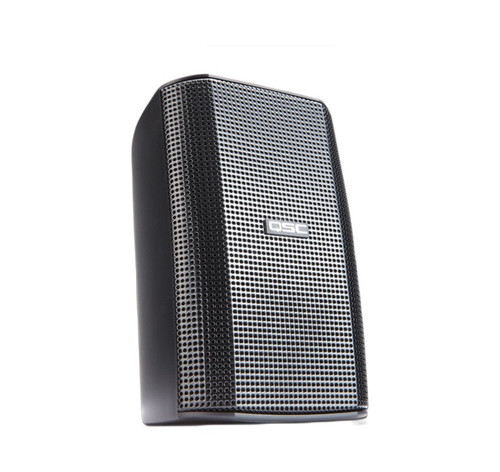

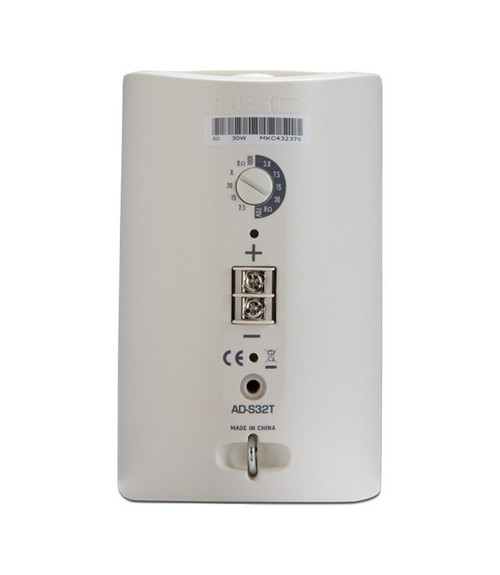

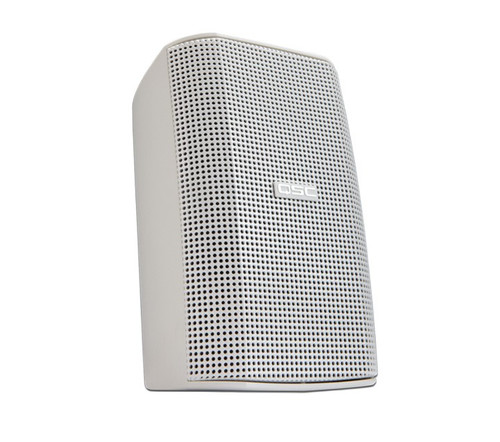

The QSC AD-S32T AcousticDesign™ Surface Mount Loudspeaker is designed for background and general purpose audio playback, the new AD-S32T is attractive, compact and acoustically matched to the entire AD Series. Rated for 30 watts continuous power handling and able to handle 120 watt peaks, the AD-S32T is a fully featured loudspeaker system in a very small package.

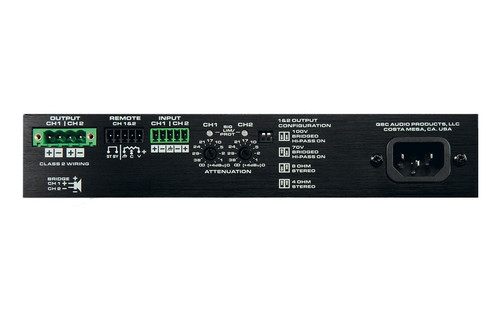

The QSC SPA2-60 Power Amplifier is a two channel amplifier that delivers 60 watts rms per channel into 4 or 8 ohms; the two channels can also be bridged providing up to 200 watts rms into 4 or 8 ohms. When the channels are bridged they can be switched into 70V or 100V direct drive mode providing up to 250 watts rms into a mono 70V or 100V output. There is also an 80Hz highpass filter for bridged operation ensuring that 70V or 100V loudspeakers transformers are not overdriven and saturated by too much low frequency content. The SPA2-60 is ideal for stereo or mono applications of voice or music audio content.

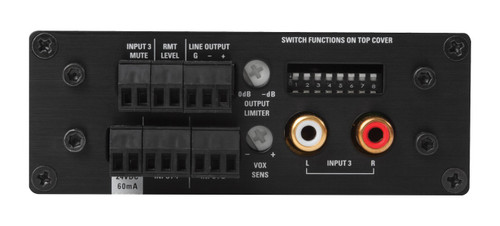

The Atlas Sound TSD-MIX31RL 3x1 mic/line mixer includes two mic/balanced line inputs via removable Phoenix style connectors and a stereo summing dual RCA input. Switchable phantom power is provided for both mic inputs to facilitate condenser microphones. The high quality, low noise internal mic preamps ensure clarity and quiet operation without unwanted coloration. A 12dB / octave high pass filter @ 125Hz also is available on each input to minimize bass rumble and low frequency feedback. And the Atlas Sound AAVC-10K Remote Level Control is perfect for use in applications requiring volume control of music or microphone within a room.
