Restaurant Speaker System with 4 Pure Resonance Audio S5 4.5" 70 Volt Outdoor Surface Mount Speakers and MA120BT 120W Bluetooth Mixer Amplifier

Inside the Design

This restaurant sound system delivers exceptional audio for both indoor and outdoor dining spaces. The durable ABS enclosure and weather-resistant design make the S5 speakers an excellent choice for delivering high-quality sound throughout the year. Each S5 speaker is equipped with a 4.5-inch woofer and 0.75-inch tweeter, offering premium full-range frequency response with a built-in 70V/100V transformer and 8-ohm bypass. Wirelessly stream background music across your restaurant, cafe, bistro, or bar with ease.

Sound System Features:

• The impact-resistant speakers, rated IP65 water-resistant, are designed to handle exposure to water, moisture, and dust, ensuring durability in challenging environments
• The 4.5-inch polypropylene cone woofer and 0.75-inch silk membrane tweeter handle 40 watts of continuous power, delivering a full-range frequency response of 90Hz – 16kHz and an average 92dB SPL for clear, high-output sound
• Perfect for background music, paging, or announcements, this system is ideal for restaurant and hospitality applications indoors or outdoors
• The MA120BT mixer amplifier features built-in Bluetooth for seamless wireless music streaming from any Bluetooth-enabled device
• Equipped with multiple inputs for microphones, media players, laptops, SD cards, and USB drives, providing a versatile solution for your audio needs
• Includes a remote control for easy management of volume, playback, and other settings from a distance



About the System Components

S5 4.5-INCH WEATHER-RESISTANT SURFACE MOUNT SPEAKERS

The Pure Resonance Audio S5 70V surface-mount speakers are engineered to withstand the demands of outdoor installations and high-moisture indoor environments. Constructed with a tough Acrylonitrile Butadiene Styrene (ABS) housing and UV protection, they offer excellent impact resistance. With an IP65 water-resistant rating, the S5 is fully protected from dust and direct water exposure, making it ideal for patios, outdoor dining areas, or humid indoor spaces like kitchens and bars.

MA120BT 7-CHANNEL 120W BLUETOOTH MIXER AMPLIFIER

The Pure Resonance Audio MA120BT mixer amplifier combines Bluetooth technology with 70V/100V transformer capabilities, offering a dependable and user-friendly audio solution. Its 6-input design supports both balanced and unbalanced inputs and provides outputs for 70V, 100V, 8-ohm, or 4-ohm systems. Compact and efficient, it’s perfect for streaming background music and managing audio in restaurant environments.

System & Component Videos

Pure Resonance Audio S5 4.5" 70V Weather-Resistant Indoor/Outdoor Surface Mount Speakers

• The water-resistant IP65 rating ensures protection from direct contact with water and dust, while the ABS housing is impact-resistance, preparing the S5 for the demanding needs of outdoor conditions
• With 40 watts of continuous power handling the 4.5" polypropylene cone woofer and 0.75" silk membrane tweeter produces a full-range frequency response of 90 - 16kHz and an average 92dB SPL of high output sound
• 70 volt and 100 volt transformer with an 8 ohm bypass and Phoenix Euroblock 4 pin screw terminal connector provide the ultimate convenience
• Perfect for foreground and background music, paging, and general-purpose audio in indoor and outdoor commercial applications
• ABS housing with UV protection and metal grille
• Ideal for indoor or outdoor use in restaurants, bars, cafes, hotels, boutiques, shops, retail stores, fitness gyms, classrooms, conference rooms, as well as corporate AV or any commercial environment
• Includes 180-degree mounting bracket for quick and easy installation under awnings, overhangs, on press boxes, and more



Pure Resonance Audio MA120BT 7-Channel 120W Bluetooth Commercial Mixer Amplifier

• 7-channel powered mixer amplifier (6 inputs + Bluetooth Media Player)
• Volume Controls for Mic 1-3, Line 1-2, MP3/FM Radio, Bass, Treble and Master
• MP3 Player, FM Radio & Bluetooth (with IR remote control)
• USB and TF inputs on front panel
• Power output rating 120 Watts
• Built-in 70V/100V transformer
• Speaker outputs: 70V, 100V, 4, 8 and 16 Ohms
• Mic 1 of balanced XLR input (with phantom power)
• Mic 2-3 microphone or line switchable
• Line 1-2 input of RCA inputs
• DIP switches for Mic/Line, phantom power and microphone priority
• Unbalanced 6.3 mm phone jack input
• One RCA line output (0.775 line level 0 dBV)
• Telephone input (600 Ohm/100mV) with VOX priority and MOH (Music on Hold) (600 Ohm 1 Volt)
• LED indicators for power clip, protect signal, Mic 1-3, Line 1-2 and telephone inputs
• Short-circuit, clip, overload and high temp protection
• 24 VDC Emergency backup supply
• 115V 60 Hz & 24V DC both operation system

• (4) Pure Resonance Audio S5 4.5" 70V Weather-Resistant Indoor/Outdoor Surface Mount Speakers
• (1) U-Bracket
• (1) Pure Resonance Audio MA120BT 7-Channel 120W Bluetooth Commercial Mixer Amplifier

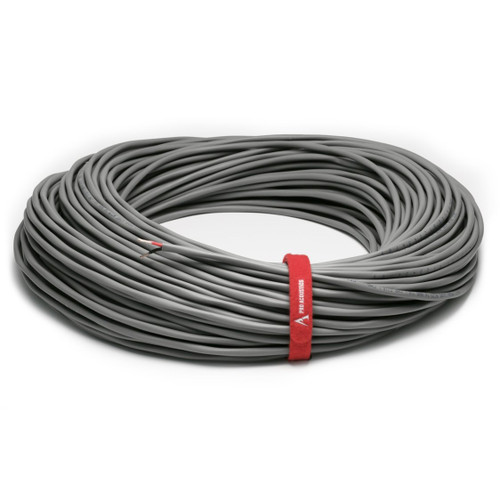

• (250') West Penn 225 16/2 Non-Plenum Audio Speaker Wire
