Retail Store Sound System with 4 Ceiling Speakers Atlas Sound AA200PHD Mixer Amplifier and TOA PM-660U Desktop Paging Microphone

This Retail Store Sound System is the ideal for small Retail Spaces that need installed sound system paging, music distribution and messaging applications.

This system comes with four SD4 ceiling speakers. The SD Speaker employs (4 smaller 6.5”) very fast transient response aluminum-woofer drivers that are very powerful and stable. Working in unison these drivers produce clean powerful dynamic sound. When designing the SD the goal was to have the single most import feature at the forefront, good transient response ("dynamic contrast"). A transient is a sound of short duration, and good transient response can only be achieved if the speaker can deliver its output quickly and cleanly without smearing the original sound, and be completely soundless immediately after. Transients contain the essentials of sound reproduction they provide the sharp pop from a snare drum, the cutting edge of digital sound, the dynamics of the human voice. Larger 2-way cabinet loudspeaker systems offer relatively slow transient response, and the small high-frequency horn tends to beam a narrow, blaring sound at the listener—end result, muddy sound. By replacing larger speakers with four 6 or 8" drivers we increased the driver surface area while creating more punch and a tight, more focused low-end.

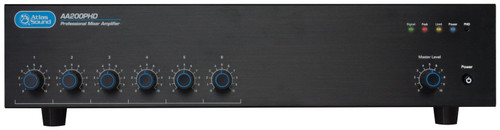

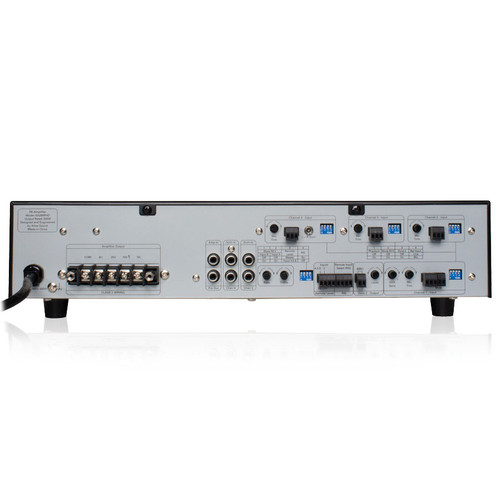

The Atlas Sound AA200PHD is a 200W, 6-Input Mixer Amplifier that is specifically designed for use in 70.7V speaker systems. The AA200PHD features a unique automatic system test using the front panel "Push Here Diagnostic" button. This internal circuitry is designed to check the connected speaker lines for wiring and impedance errors. This test can be activated once all speakers are connected and the circuit automatically verifies that the attached speakers' tap settings do not exceed the amplifier's rated power, no speakers are mistakenly tapped at 8Ω, and the speaker wire is free from shorts. This allows for quick troubleshooting on site and after the sale.

TOA’s PM-660U is an elegantly styled, compact desk microphone for use in public address, paging and radio communication systems. Ideal applications include restaurants, offices, warehouses, transportation terminals, dispatch centers and entertainment facilities. Its smooth, natural response provides high quality voice reproduction and excellent articulation to enhance the overall performance of your system. Compact and lightweight, the PM-660U requires a minimum of desk or counter space and is easy to handle.

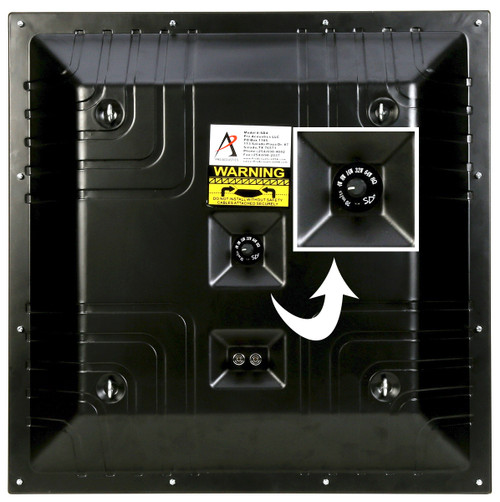

Pure Resonance SD4 In-Ceiling Speakers:

• Omni Directional Speaker Coverage 360° x 180°
• Infinite-baffle in-ceiling speaker’s drops into standard ceiling tile openings
• 4 - 6.5" High compliance aluminum woofers with ported bass response
• Uniquely designed fire retardant ABS housing may be painted to match any décor
• Easily adjustable by rotating switch
• Metal Backbox that is engineered and sealed for maximum performance. Safety cable kit included

Atlas Sound AA200PHD Mixer Amplifier:

• 120 Watt 6 Channel Mixer Amplifier
• 5 Mic/Line Inputs with Phantom Power and 1 Stereo Summing AUX Input
• Bridge In/Out Circuit with Balanced Link / Internal Relay to Engage Circuit is Perfect for Small Room Combining Systems Eliminating the Need for External Electronics
• Pre Out / Power Amp In for Patching External Processors
• Remote or VOX Mute Capabilities
• Special Low Cut Filter is 6dBu/octave at 400Hz and also Bypasses Front Panel Bass Control to Allow Use with Paging Horns like APX40TN and AP-15T
• Zone 2 MOH Out from CH6 Line Source
• UL60065 Listed

TOA PM-66U Desktop Paging Microphone:

• Cardioid dynamic element
• Elegant, space-saving integral stand design
• Push-to-talk bar with locking lever
• Extra switch contact for mute or relay control

• (4) Pure Resonance SD4 In-Ceiling Speakers
• (1) Atlas Sound AA200PHD Mixer Amplfier
• (1) TOA PM-660U Desktop Paging Microphone
• (200') Speaker Cable (WP-224)
• (1) CBI MLN-6-PREP-F Microphone Cable
