Retail Store Sound System with 4 JBL Control 14C/T Compact In-Ceiling Loudspeakers and Mixer Amplifier
This JBL retail store sound system is the ideal system for small to medium coverage area, approx. 1600 sq ft, where high-quality audio can be used to enhance customers' overall shopping experience.
The JBL Control 14C/T 4" speaker is designed to provide excellent sound quality for a wide variety of medium volume applications such as music cafes, business music systems, retail stores, music/paging systems, airports, reception/waiting rooms, lounges, courtrooms, convention centers, hotels, educational facilities, and more. The 120° coverage delivers consistent sound quality for listeners located both off and on axis. The high technology 4" low frequency driver is designed with a lightweight, high temperature anodized aluminum voice coil former and high temperature grade voice coil for stable performance and reliability under long-term high power working conditions. The butyl rubber surround provides long term durability and excellent sonic damping while the polypropylene cone is water and humidity resistant. The FEA-optimized motor construction and cone geometry, along with linear suspension spider design, allows for a smooth frequency response and more consistent off-axis performance. The 0.75" high frequency driver features a highly damped treated silk dome for clear and warm sound, a lightweight Kapton™ voice coil for better high frequency response and excellent reliability, low viscosity liquid cooling for power handling and reliability, and a wide dispersion waveguide design to produce wide coverage and smooth frequency response. The removable locking connector has screw terminals for secure wire termination and “loop through” terminals. A dual strain relief assembly provides clamping for use with cable or flex conduit.

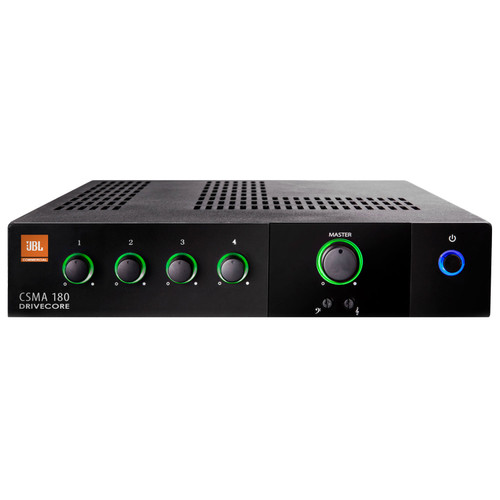

The JBL CSMA 180 is an 80W, single channel model with four mixer channels. It provides mixer capability with independent level control for each input channel and amplification with a choice of low impedance, 70V or 100V outputs. The product includes a rack mounting kit for installations to a cabinet. The system can be easily expanded with additional JBL Commercial Series Amplifiers and Commercial Series Mixers. Provisions are included for a remote volume control using the included JBL CSR-V control module.
The JBL CSR-V remote control (when used with a CSM mixer) uses analog DC voltage to allow you to remotely control the volume of one source. It is wired with Category 5 cable with universally accepted RJ-45 connectors up to 1000 feet in length.
Not sure if this is the right Retail Sound System solution for you?
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.
JBL Control 14C/T Compact 4" In-Ceiling Loudspeakers:
JBL CSMA 180 Mixer Amplifier:
JBL CSR-V Volume Control:
