This QSC Retail Store Sound System is ideal for small to medium coverage areas and can be easily expanded for further coverage and control over separate zones and paging to enhance  the customers' shopping experience that customers will want to return to again and again.

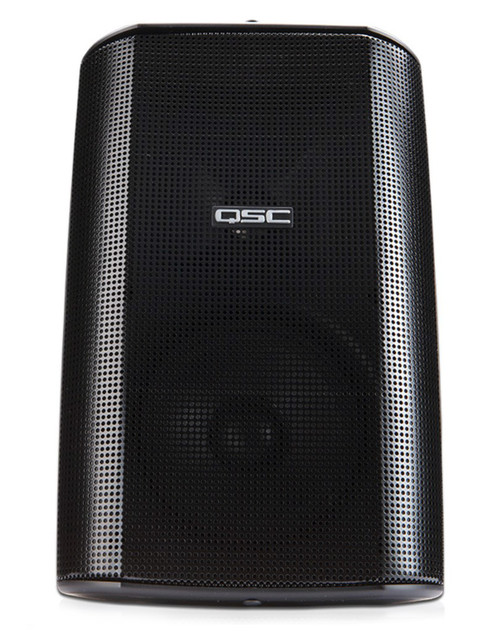

The QSC AcousticDesign AD-S52 is a full range, surface mount loudspeaker with sleek, contemporary styling that fits perfectly into multiple environments and applications including hotels, restaurants, convention facilities, and multimedia environments. The loudspeaker’s low-frequency driver is magnetically shielded, making the AD-S52 perfect for use near video monitors. Available in black or white, these great sounding, weather resistant enclosures can be painted
to match any specific decor.

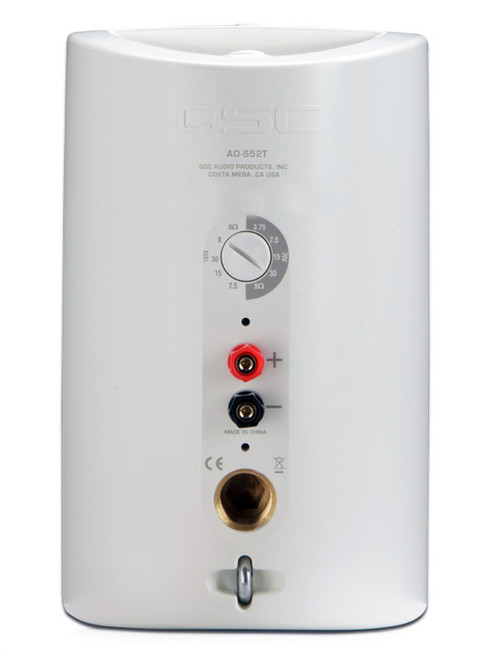

The AD-S52T models are equipped with a 70/100 volt matching transformer for distributed audio systems. There is a transformer tap switch on the rear panel for setting the power level of the loudspeaker. This switch may also be set for 8 ohm operation, bypassing the transformer completely—providing greater system flexibility compared to most competing products.

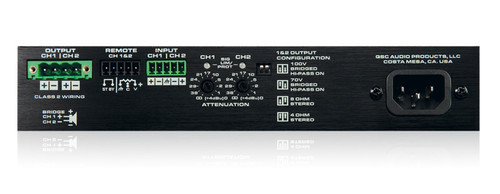

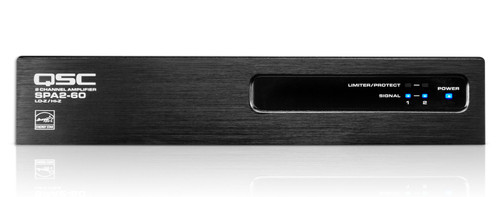

The SPA2-60 two channel amplifier delivers 60 watts rms per channel into 4 or 8 ohms; the two channels can also be bridged providing up to 200 watts rms into 4 or 8 ohms. When the channels are bridged they can be switched into 70V or 100V direct drive mode providing up to 250 watts rms into a mono 70V or 100V output. There is also an 80Hz highpass
filter for bridged operation ensuring that 70V or 100V loudspeakers transformers are not overdriven and saturated by too much low frequency content. The SPA2-60 is ideal for stereo or mono applications of voice or music audio content.

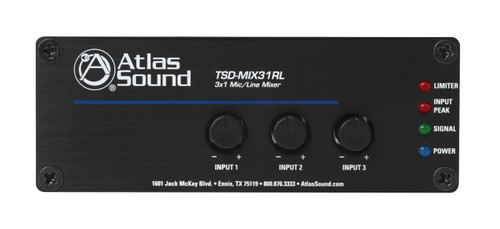

The TSD-MIX31RL 3x1 mic/line mixer includes two mic/balanced line inputs via removable Phoenix style connectors and a stereo summing dual RCA input. Switchable phantom power is provided for both mic inputs to facilitate condenser microphones. The high quality, low noise internal mic preamps ensure clarity and quiet operation without unwanted coloration. A 12dB / octave high pass filter @ 125Hz also is available on each input to minimize bass rumble and low frequency feedback.

This attractive AAVC-10K Remote Level Control is perfect for use in application requiring volume level control of music or microphone within a room. A Decora Style wall plate, insert, and knob in both standard white and ivory finishes is included.

QSC AD-S52T AcousticDesign™ Wall Mount Speakers:

• 5.25 inch, 2-way design - in a lightweight, contemporary styled multipurpose enclosure
• Magnetically shielded LF transducer - ideal for use near video monitors
• Flexible ball mount assembly included - for convenient installation
• 70V/100V transformer versions available - for use with distributed audio systems
• Available optional yoke mount bracket



QSC SPA2-60 Power Amplifier:

• Up to 60 watts per channel into 4 and 8 ohms
• ENERGY STAR® certified amplifier
• Bridgeable outputs for higher power
• Auto-Ramp provides quiet startup and power-down
• Rack-mountable 1U, half rack width enclosure



Atlas Sound TSD-MIX31RL 3x1 Mic/Line Mixer:

• Two (2) Balanced Mic/Line Inputs
• High Gain (50dB) Microphone Preamps
• Switchable 24V Phantom Power
• One (1) Unbalanced Summing Dual RCA Line Input
• Vox Sense and Contact Closure Priority Mute of Ch3
• Variable Output Limiter
• Remote Level Control
• 12dB/Octave Low Cut Filter @ 125Hz
• Input Signal & Peak Indicator LED's
• High Gain Output for Driving Long Balanced Lines
• Separate Ground Connections
• Power Supply Sold Separately
• Removable Phoenix Style I/O Connectors
• Security Covers Included for All Front Panel Controls
• Energy Efficient



Atlas Sound AAVC-10K Remote Level Control:

• 10k ohms Linear Taper Insures Smooth Level Control
• Attractive Decora Style Wall Plate
• Convenient Kit Includes Hardware
• Simple 2 Conductor Wiring

• (4) QSC AD-S52T AcousticDesign™ Wall Mount Speakers
• (1) QSC SPA2-60 Power Amplifier
• (1) Atlas Sound TSD-MIX31RL 3x1 Mic/Line Mixer
• (1) Atlas Sound AAVC-10K Remote Level Control
• (1) Atlas Sound TSD-PS24V250MA Power Supply
